Shure UA845UWB-E Ultra Wide Band Antenna Distribution System

Vreme isporuke: 3 do 5 dana!

Besplatna dostava
Besplatna dostava je za sve artikle koji su plaćeni preko 15.000 dinara. Svaka pošiljka može biti osigurana dodatno/pošiljke do 70 000 dinara su osigurane.

Cenovnik dostave
Klikom na link posetićete stranicu sa ažuriranim cenovnikom kuriskih službi.

Načini plaćanja
Naručivanje preko našeg sajta u proseku traje manje od jednog minuta i odvija se kroz nekoliko jednostavnih koraka.

Opis proizvoda

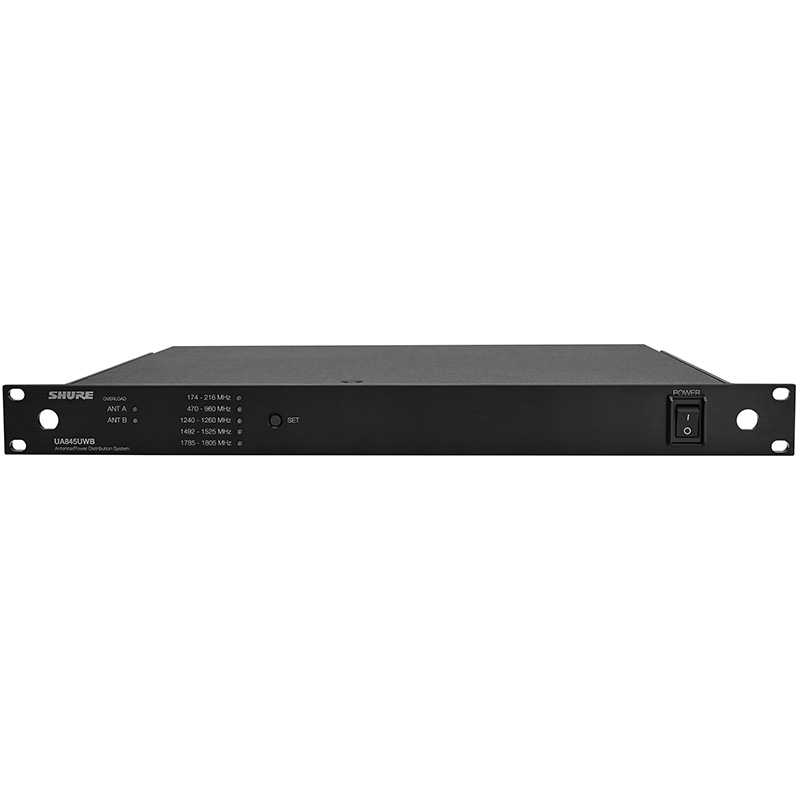

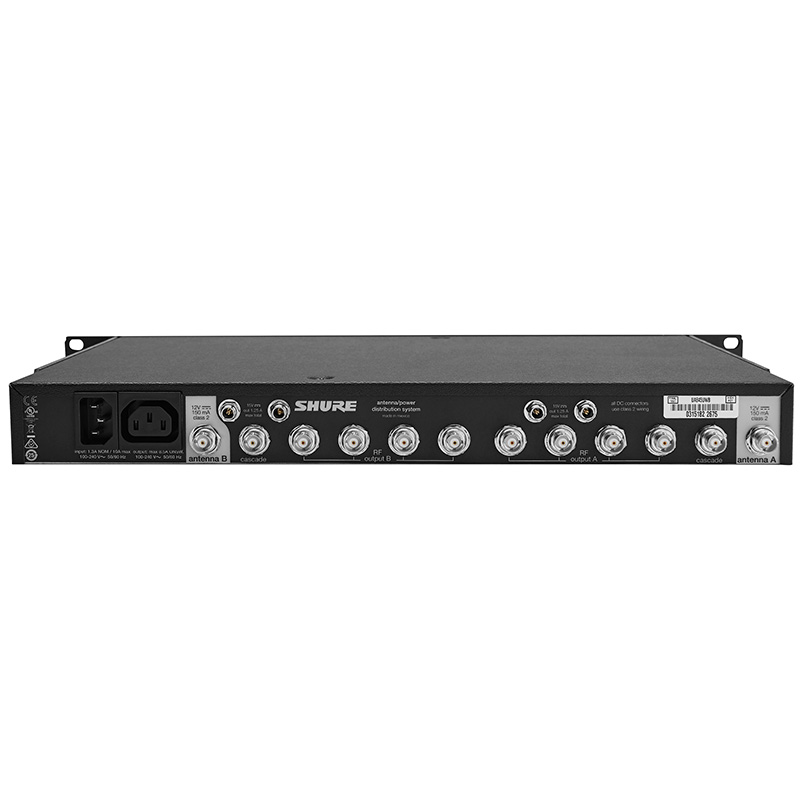

The Shure Model UA845UWB Antenna Distribution System allows four receivers to use the same set of antennas. The cascade connectors allow connections to a fifth receiver or a second UA845UWB. There are also power connectors for distributing power to each receiver. RF signal amplification compensates for insertion loss from splitting the antenna input to multiple outputs. A button on the front panel switches between one of five frequency bands from 174 to 1805MHz.

Tehničke specifikacije proizvoda

  • 5 selectable frequency ranges
  • Antenna A and B input overload LED indicators
  • Five-way RF signal output
  • Support Axient Digital, QLX-D®, ULX®, ULX-D®, SLX®, and BLX® (BLX4R only) receivers
  • Front-mounting antenna hardware
  • Rack-mounting hardware
  • Internal power supply
  • 4 DC power feeds for receivers (15V, 2.5A max)
  • DC outputs for antenna bias (12V, 300mA max)
  • 1 UA845UWB Antenna/Power Distribution System
  • 4 Locking DC power cables (for ULXD4, ULXP4)
  • 4 Non-locking DC power cables (QLXD4, SLX4, BLX4R)
  • Ten 22 in. BNC cables
  • Two 6 ft. BNC cables
  • 2 Bulkhead adaptors
  • 1 AC Power Cable (IEC power)
  • 1 Pig-tail AC Cable (for the second UA845UWB or UR4, ULXD4D, ULXD4Q, AD4D, AD4Q receiver)
  • 1 Rack mount Hardware kit
  • 1 Literature Package
  • 1 UA845UWB Antenna/Power Distribution System
  • 4 Non-locking DC power cables (QLXD4, SLX4, BLX4R)
  • 2 22 in. BNC cables
  • 2 6 ft. BNC cables
  • 2 Bulkhead adaptors
  • 1 AC Power Cable (IEC power)
  • 1 Pig-tail AC Cable (for the second UA845UWB or UR4, ULXD4D, ULXD4Q, AD4D, AD4Q receiver)
  • 1 Rack mount Hardware kit
  • 1 Literature Package
