D&R Webstation USB-6 mikseta

1.198,00
Garancija dve godine!

Besplatna dostava
Besplatna dostava je za sve artikle koji su plaćeni preko 15.000 dinara. Svaka pošiljka može biti osigurana dodatno/pošiljke do 70 000 dinara su osigurane.

Cenovnik dostave
Klikom na link posetićete stranicu sa ažuriranim cenovnikom kuriskih službi.

Načini plaćanja
Naručivanje preko našeg sajta u proseku traje manje od jednog minuta i odvija se kroz nekoliko jednostavnih koraka.

Opis proizvoda

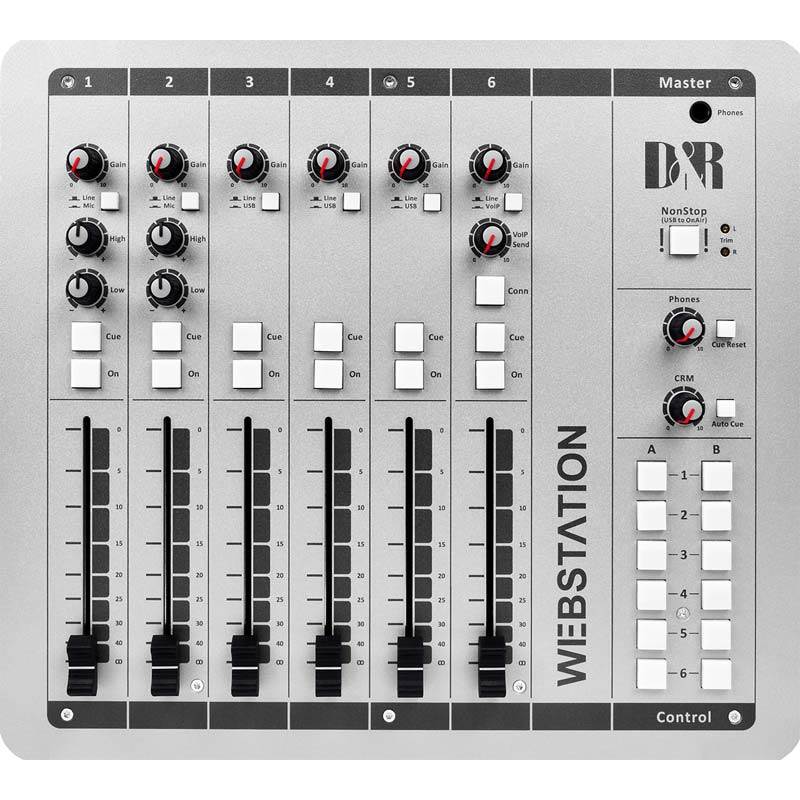

With the Webstation you can now own a modern broadcast mixer for a very attractive price. This new and handbuilt piece of precision equipment is built around proven low noise circuitry. It is an intelligent mixer with an internal USB control section that comfortably enhances daily use and even has a built in silence detector. It is a reliable workhorse for the self-op production D.J. There is a built in Telephone VOIP functionality, 3 in/out channels of stereo USB and 2 very low noise Mic inputs. The WEBSTATION is ideal for ON-AIR, Production work and perfect for streaming to the web.
The WEBSTATION accepts and instantly controls a maximum of 3 in/out stereo channels from your Play-out software. It is built into a heavy duty metal RF shielded chassis. Easily “drops” into your furniture to give that exciting and contemporary radio look. Built with a strong powder coated front panel for durability and it is the result of more than 45 years of experience at D&R.

Tehničke specifikacije proizvoda

  • INPUTS
  • Mic inp: bal, 2 kOhm, XLR ,48 volt Phantom.
  • Noise: - 128 dBr (A-weighted).
  • Sensitivity: - 70dB min, OdB Max.
  • Insert: unbalanced 10kOhm -10dBv.
  • Line inputs: unbal., 10kOhm, Cinch.
  • Gain: range of 40dB.
  • USB: 3x Stereo in and 3x stereo out.
  • OUTPUTS
  • Left/Right: 0 dBu unbal. on Cinch.
  • CRM: 0 dBu unbal. on Cinch.
  • Headphone: 32-400 Ohm, Jack.
  • USB out: Program/Voice track/VoIP
  • EQUALIZER
  • High: + / -12 dB at 12kHz shelving.
  • Low: + / -12 dB at 60 Hz shelving.
  • USB
  • Fully compliant with USB 2.0
  • playback and record mode.
  • 3x Stereo in and 3x stereo out.
  • An USB Isolator is optional available for € 35
  • USB CONTROL SECTION
  • 12 free assignable illuminated switches based on the HID protocol.
  • VoIP CHANNEL
  • Uses USB processing for VoIP.
  • ONTROL SOFTWARE
  • A software program is included in the delivery for programming the Control section (Webstation Virtual Keyboard Mapper) and internal mixer settings.
  • DIMENSIONS
  • Left-Right: 350 mm
  • Front-Back: 315 mm
  • Height: 30 to 90 mm
  • Front panel thickness: 2 mm
  • Radius Corners: 20 mm
  • Weight: 8kg.
  • Drop through hole: 320 x 295 mm
  • EAN code: 7436917138155
  • OVERALL
  • Frequency response: 10 - 60.000Hz.
  • Distortion: < 0.01% max at 1 kHz.
  • GPO/Mic On: Opto FETS. (24volt/50mA max).
  • Led bars: Software meter application.
