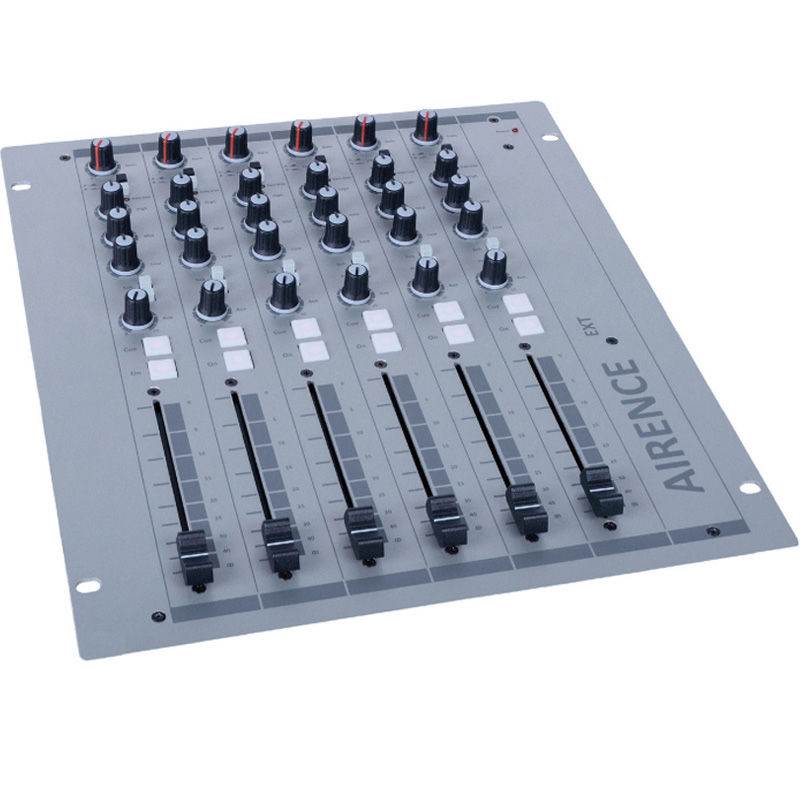

D&R Airence-USB Extension Unit

1.458,00
Garancija dve godine!

Besplatna dostava
Besplatna dostava je za sve artikle koji su plaćeni preko 15.000 dinara. Svaka pošiljka može biti osigurana dodatno/pošiljke do 70 000 dinara su osigurane.

Cenovnik dostave
Klikom na link posetićete stranicu sa ažuriranim cenovnikom kuriskih službi.

Načini plaćanja
Naručivanje preko našeg sajta u proseku traje manje od jednog minuta i odvija se kroz nekoliko jednostavnih koraka.

Opis proizvoda

Konzola dodatak za Airance seriju. Može se ukombinovati tako da Expansion bude ulazna sekcija odnosno proširenje. Poseduje jedino mikrofonske i linijske kanale, insert i vezu za Main Unit ili treći mikser. Odlično rešenje za nadogradnju već postojećeg miksera bez dodatne kupovine veće i skuplje miksete i ponovnog vezivanja u sistem.

Tehničke specifikacije proizvoda

  • INPUTS Mic inputs: bal, 2 kOhm, XLR. ,48 volt Phantom. Noise: - 128 dBr (A-weighted). (That 1501)Sensitivity: - 70dB min, OdB Max.
  • USB Fully compliant with USB 2.0 playback and record mode. 4x Stereo in and Main stereo or SUB signals out. HID Functions: Volume|Mute|Control
  • USB CONTROL SECTION 24 free assignable illuminated switches plus encoder based on the HID protocol.
  • TELEPHONE HYBRIDS RJ-11 connectors for phone line/dialler Mix Minus rejection @1kHz -40dB.
  • VoIP HYBRIDS If you have opted for VoIP channels a USB connector is placed in the lower RJ-11 position. The other RJ-11 provides you with a cleanfeed signal on pin 1+4 or a ring signalling control.
  • OUTPUTS Left/Right: + 6dBu bal. XLR., Monitor/Aux : + 6dBu unbal. on Cinch., Studio: + 6dBu, Jacks. Tape outp: -10dBv., Headphone: 32-600 Ohm, Jack., Announcer: 32-600 Ohm, Jack., USB out: Main program stereo signal or SUB
  • OPTIONS AES digital output (mounted in redundant power supply hole) Cost € 110,--
  • EQUALIZER High: + / -12 dB at 12kHz shelving. Mid: + / -12dB at 1 kHz bell curve. Low: + / -12dB at 60 Hz shelving.
  • POWER A High efficient (level 5) switched digital power supply will be supplied with every individual unit. Input range is 100-240volt|47-63Hz
  • OVERALL Frequency response: 10 - 60.000Hz. Distortion: < 0.01% max at 1 kHz.
  • SOFTWARE A software protocol is available for programming of the USB HID protocol to match your software.
  • DIMENSIONS Width: 302mm, Front Panel Thickness: 2mm, Corner Radius: 20 mm, Height: 355mm, Depth: 101.50mm., Weight: 7kg., Drop through hole: 270mm x 344mm, Furniture top panel thickness maximum: 22mm
