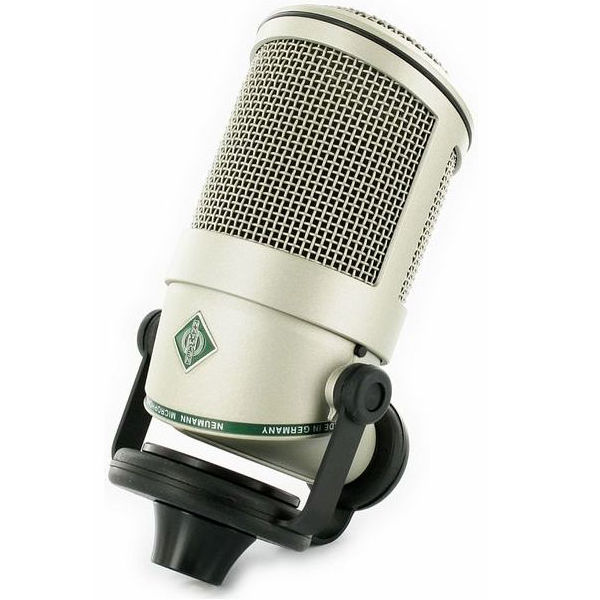

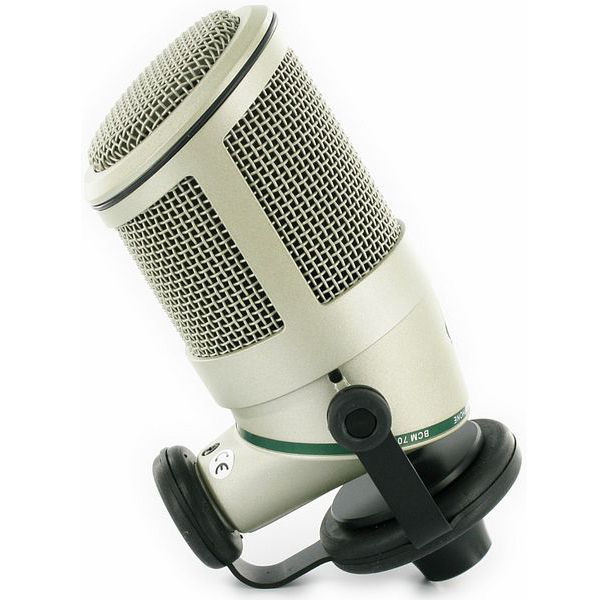

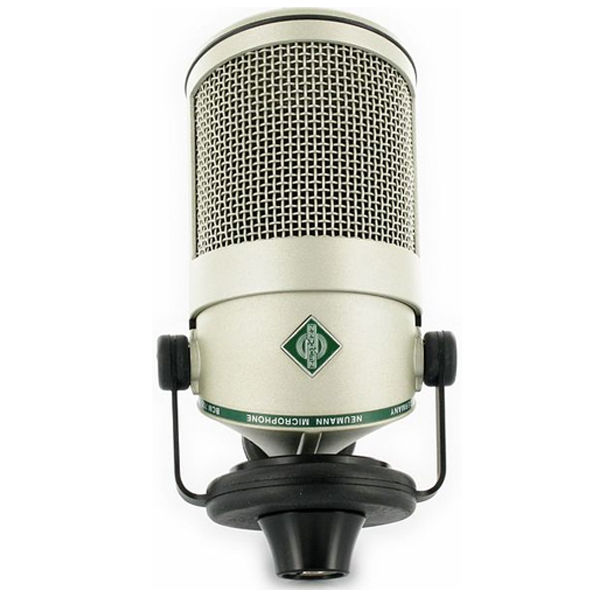

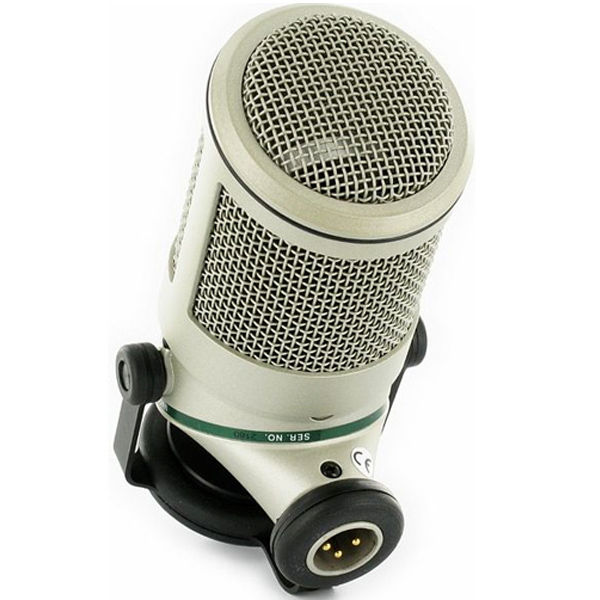

Neumann BCM 705 mikrofon


Besplatna dostava
Besplatna dostava je za sve artikle koji su plaćeni preko 15.000 dinara. Svaka pošiljka može biti osigurana dodatno/pošiljke do 70 000 dinara su osigurane.blank

Cenovnik dostave
Klikom na link posetićete stranicu sa ažuriranim cenovnikom kuriskih službi.blank

Načini plaćanja
Naručivanje preko našeg sajta u proseku traje manje od jednog minuta i odvija se kroz nekoliko jednostavnih koraka.blank

Opis proizvoda

The BCM 705 is Neumann’s first dynamic microphone. The housing and headgrille are identical to those of the BCM 104; only the green logo indicates that this is something new from Neumann. The principle of reduction to the essentials can be seen in the dynamic capsule with a hypercardioid directional characteristic, spe

Mechanical Features

The microphone headgrille twists off easily for quick cleaning.
Neumann offers optional, color-coded headgrilles so that, for reasons of
hygiene, each announcer can use his or her individual headgrille.

microphones of the Broadcast Line have an elastic mount against
structure-borne noise, that is compatible with standard
broadcast-segment microphone arms.

Acoustic features

The frequency response has a light treble boost, in the region from 2
kHz to 9 kHz, aiding the speech intelligibility. The bass frequency
response is designed to compensate for the overemphasis of the bass
caused by the proximity effect.

The integrated Pop Screen

A pop screen not only prevents the occurrence of plosive pop noises
in vocal recordings, but also efficiently prevents unwanted particles,
from respiratory moisture, nicotine, to food remnants, from settling on
the diaphragm.

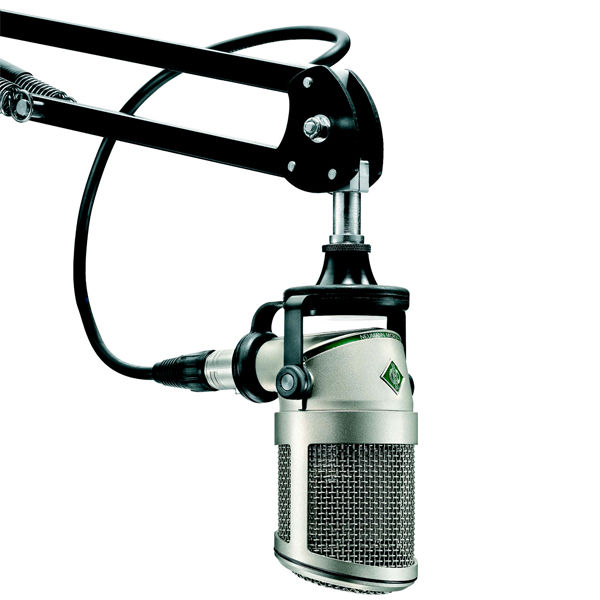

The preferred mode of operation is to suspend the BCM 104 or BCM 705 from a standard studio boom arm.

A thread adapter to fit different connector threads is included. In
order to provide protection from structure-borne noise, both the capsule
and the microphone in its mount are elastically suspended.

The optional SG 5 swivel mount allows additional angling of the microphone by +/-90 degrees.

* The design of the microphone is a registered design of the Georg Neumann GmbH in certain countries.

Tehničke specifikacije proizvoda

  • Acoustical operating principle Pressure gradient transducer
  • Directional pattern Hypercardioid
  • Frequency range 20 Hz ... 20 kHz
  • Sensitivity at 1 kHz into 10 kohm 1.7 mV/Pa
  • Rated impedance 200 ohms
  • Rated load impedance 10 kohms
  • Equivalent noise level, CCIR1) 32 dB
  • Equivalent noise level, A-weighted1) 18 dB-A
  • Signal-to-noise ratio, CCIR1) (rel. 94 dB SPL) 62 dB
  • Signal-to-noise ratio, A-weighted1) (rel. 94 dB SPL) 76 dB
  • Weight 500 g
  • Diameter 64 mm
  • Length 85 mm
  • Height (without suspension) 110 mm
