LD Systems U508 CS 4 bežični mikrofon

(cena je sa uračunatim PDVom)
Vreme isporuke: 7 do 10 dana

Besplatna dostava
Besplatna dostava je za sve artikle koji su plaćeni preko 15.000 dinara. Svaka pošiljka može biti osigurana dodatno/pošiljke do 70 000 dinara su osigurane.blank

Cenovnik dostave
Klikom na link posetićete stranicu sa ažuriranim cenovnikom kuriskih službi.blank

Načini plaćanja
Naručivanje preko našeg sajta u proseku traje manje od jednog minuta i odvija se kroz nekoliko jednostavnih koraka.blank

Opis proizvoda

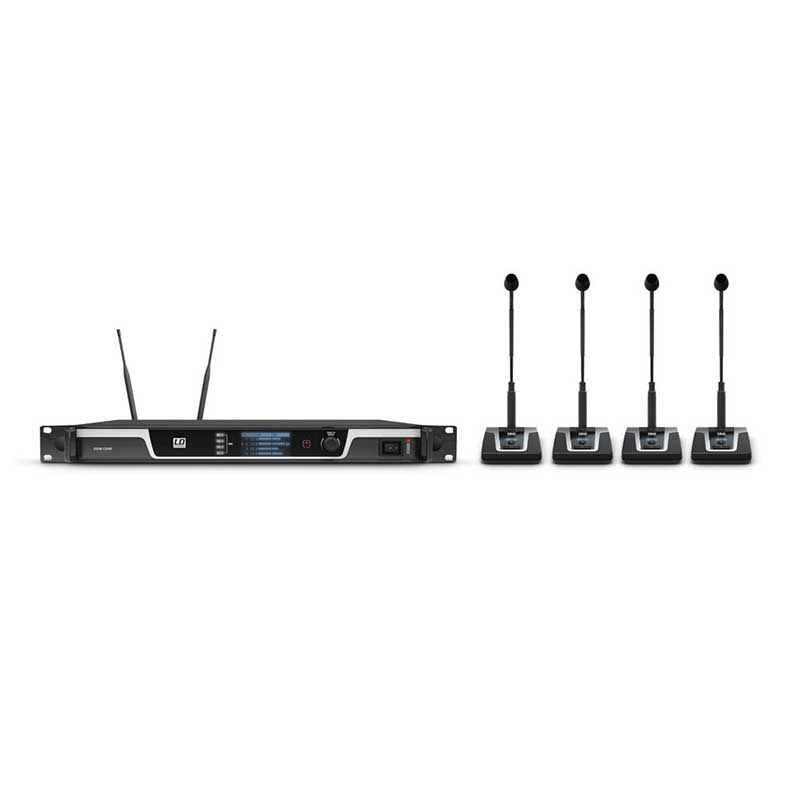

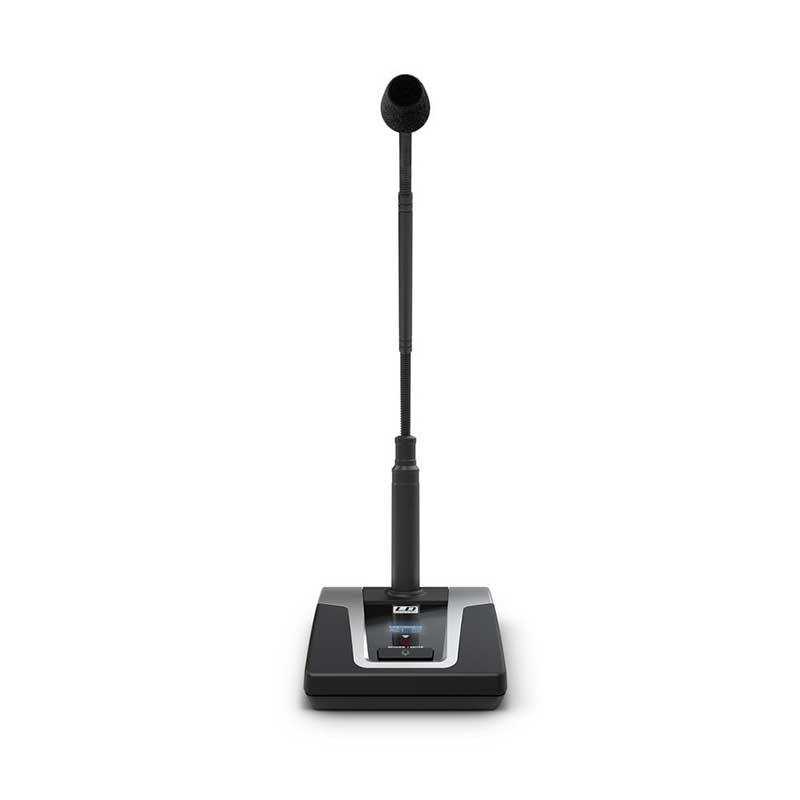

We have developed the U500® in Germany to meet all of your requirements of a wireless conference system. It offers a professionally equipped solution for effective communication and interaction with advanced technology, excellent speech intelligibility and an elegant appearance. The user-friendly True Diversity UHF system with 60 channels in 6 groups facilitates easier installations and turns conferences, meetings and round tables into successful events. The U500® terminals feature a gooseneck condenser microphone with hyper-cardioid characteristic and a light ring to display status. The heavy table stand features an XLR microphone input, 28 V phantom power, an on-off-mute switch, as well as a gain control and a selectable 130 Hz high-pass filter to effectively reduce proximity effect and structure-borne sound. A high-contrast OLED display shows radio frequency, battery status, terminal number, group and channel. The audio transmission range is 60 Hz - 16 kHz. For simple, fast configuration, the 4-channel U500® conference system receiver features automatic frequency and channel scanning, infrared synchronisation, a digital encoder and 4 buttons to directly access the individual channels. The high-contrast OLED display provides a comprehensive overview of all functions and settings such as audio and radio signal strength, and priority and battery status of the terminals. The number of simultaneously-live microphones can be configured in order to eliminate crosstalk, feedback and comb filter effects. Selectable automatic or manual gate settings and a pilot tone ensure that the U500® conference system delivers superb sound quality with excellent noise immunity. In addition to its individual channel outputs, the receiver also has a master output, an access lock to prevent unauthorised adjustment of settings, and the RS-232 interface to facilitate integration into external control systems. For system expansion, up to five U500® receivers can be cascaded and used in master-slave mode, making a maximum of 20 terminals possible. The U500® conference system is available in three versions which work in the following frequency areas: 554 - 586 MHz, 662 - 694 MHz or 823 - 832 MHz + 863 - 865 MHz

Tehničke specifikacije proizvoda

  • Product number: LDU508CS4
  • Product type: Conference Systems, Microphone Accessories
  • Type: Installations
  • Modulation Type: FM
  • Channels: 55, 60 (6 x 10)
  • Transmission frequency range: 863 - 865MHz, 823 - 832MHz
  • Groups: 6
  • Inputs: XLR
  • Antenna inputs: 2
  • Antenna connector: BNC
  • Frequency response: 60 - 16000Hz
  • Rated HF output power: 10 mW
  • Noise reduction: Squelch
  • THD: < 0.2 %
  • Controls: RX 1 - 4 quick access buttons, Power On/Off, Power / Mute, digital encoder, Gain, Low Cut
  • Signal-to-noise ratio: > 100dB
  • Audio output, balanced: 4 x XLR
  • Indicators: LED, OLED Display
  • Operating voltage: 2 x AA battery, 12 V DC, 1,000 mA
  • Operating time: up to 8 hrs., battery-dependent
  • Audio mix output, balanced: XLR
  • Width: 115mm, 484mm
  • Height: 54mm, 44mm
  • Depth: 243mm, 135mm
  • Max. output level: +12dBu
  • Weight: 0,73kg, 6kg
