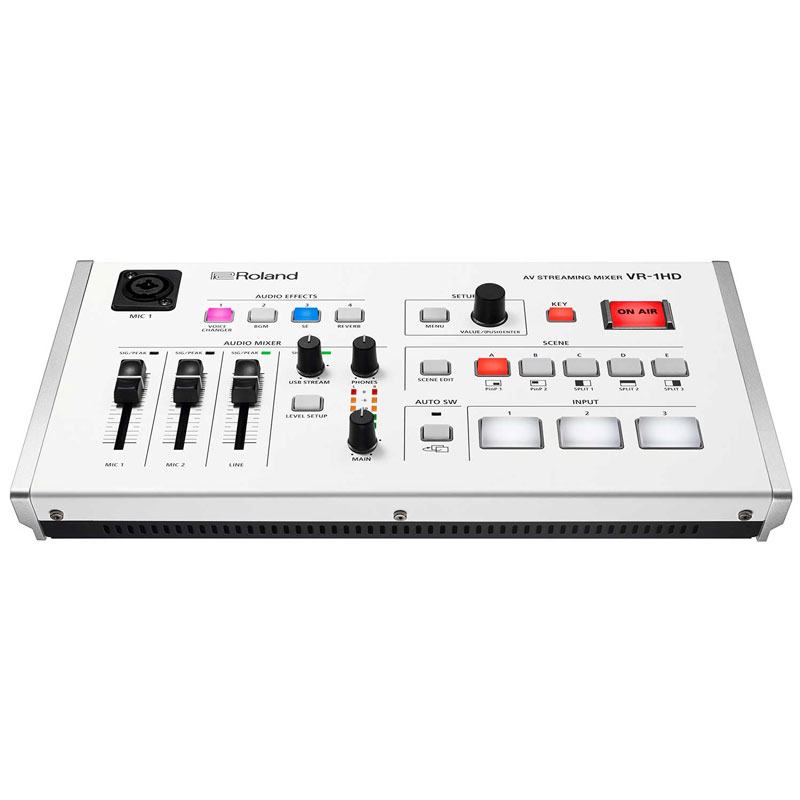

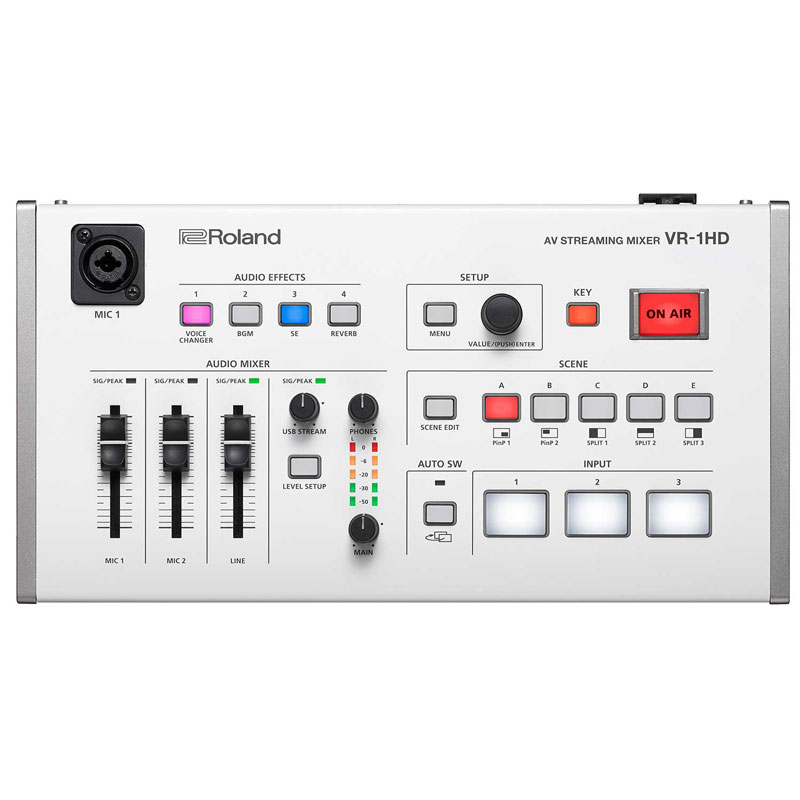

Roland VR-1HD Video / Audio Mixer

RSD216.000,00
(cena je sa uračunatim PDVom)
blank
blank

Besplatna dostava
Besplatna dostava je za sve artikle koji su plaćeni preko 15.000 dinara. Svaka pošiljka može biti osigurana dodatno/pošiljke do 70 000 dinara su osigurane.blank

Cenovnik dostave
Klikom na link posetićete stranicu sa ažuriranim cenovnikom kuriskih službi.blank

Načini plaćanja
Naručivanje preko našeg sajta u proseku traje manje od jednog minuta i odvija se kroz nekoliko jednostavnih koraka.

Opis proizvoda

Roland VR-1HD Video / Audio Mixer. If you’re a content creator seeking maximum engagement, livestreaming outperforms uploaded video by a significant margin; audiences are larger, watch for longer and post more comments. Roland’s VR-1HD lets you broadcast dynamic multi-camera livestreams, complete with amazing picture and sound that easily outshines ‘standard’ livestreams from a mobile phone or static webcam. Whether you’re a creator, gamer, commentator or presenter, it’s the easy way to livestream with high production standards. And since you’re going to get more comments, ensure they’re good ones with the VR-1HD.

Tehničke specifikacije proizvoda

  • Video Processing: 4:4:4 (Y/Pb/Pr), 10-bit
  • Input Connectors
  • VIDEO INPUT 1--3 connectors: HDMI type A x 3
  • HDCP Supported.
  • Multi-format Supported

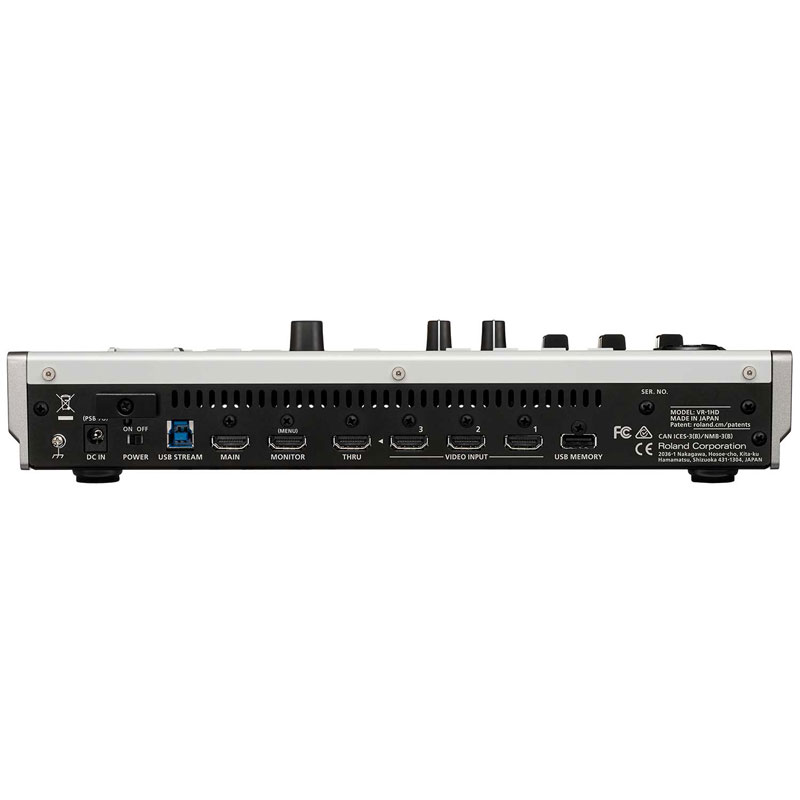

  • Output Connectors
  • MAIN connector: HDMI type A
  • HDCP Supported
  • MONITOR connector: HDMI type A
  • HDCP Supported
  • THRU connector: HDMI type A
  • HDCP Supported
  • USB STREAM port: USB B type
  • Input formats480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p, VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz), HD (1280 x 720/60 Hz), WXGA (1280 x 800/60 Hz), SXGA (1280 x 1024/60 Hz), FWXGA (1366 x 768/ 60 Hz), SXGA+ (1400 x 1050/60 Hz), UXGA (1600 x 1200/60 Hz), FHD (1920 x 1080/60 Hz), WUXGA (1920 x 1200/60 Hz)
  • The refresh rate is the maximum value of each resolution.
  • Conforms to VESA DMT Version 1.0 Revision 11.
  • 1920 x 1200, 60 Hz: Reduced blanking
  • The video signal frame rate can be selected at the SYSTEM menu (59.94 Hz or 50 Hz).Output formats
  • MAIN, MONITOR connectors:
  • 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p, XGA (1024 x 768/60 Hz) (*1), WXGA (1280 x 800/60 Hz) (*1), SXGA (1280 x 1024/60 Hz) (*1), FWXGA (1366 x 768/60 Hz) (*1), SXGA+ (1400 x
  • 1050/60 Hz) (*1), UXGA (1600 x 1200/60 Hz), FHD (1920 x 1080/60 Hz), WUXGA (1920 x 1200/60 Hz)
  • The video signal frame rate can be selected at the SYSYTEM menu (59.94 or 50).
  • (*1) Output refresh rate is 75 Hz when frame rate is set to 50 Hz.
  • USB STREAM port: 854 x 480/29.97p, 854 x 480/25p, 854 x 480/59.94p, 854 x 480/50p, 720/29.97p, 720/25p, 720/59.94p, 720/50p, 1080/29.97p, 1080/25p
  • The video signal frame rate can be selected at the SYSTEM menu (59.94 Hz or 50 Hz).Still Image
  • Maximum Size: 1920 x 1200 pixels
  • Format: Windows Bitmap File (.bmp) 24 bit per pixel, uncompressed
  • It can be loaded up to 2 files from USB memory at startup.
  • Video Effects Scene: PinP, Split, PbyP
  • Transition: Black fade, Mix fade, Motion
  • Key Composition: Luminance key, Chroma key
  • Other: Still Image playback, Output fade (Audio, Video: WHITE or BLACK), Test pattern output
  • AUDIO: Audio Processing
  • Sample rate: 48 kHz, 24 bits
  • Audio formats:
  • VIDEO INPUT 1--3 connectors: Linear PCM, 48 kHz, 24 bits, stereo
  • USB STREAM port: Linear PCM, 48 kHz, 16 bits, stereo

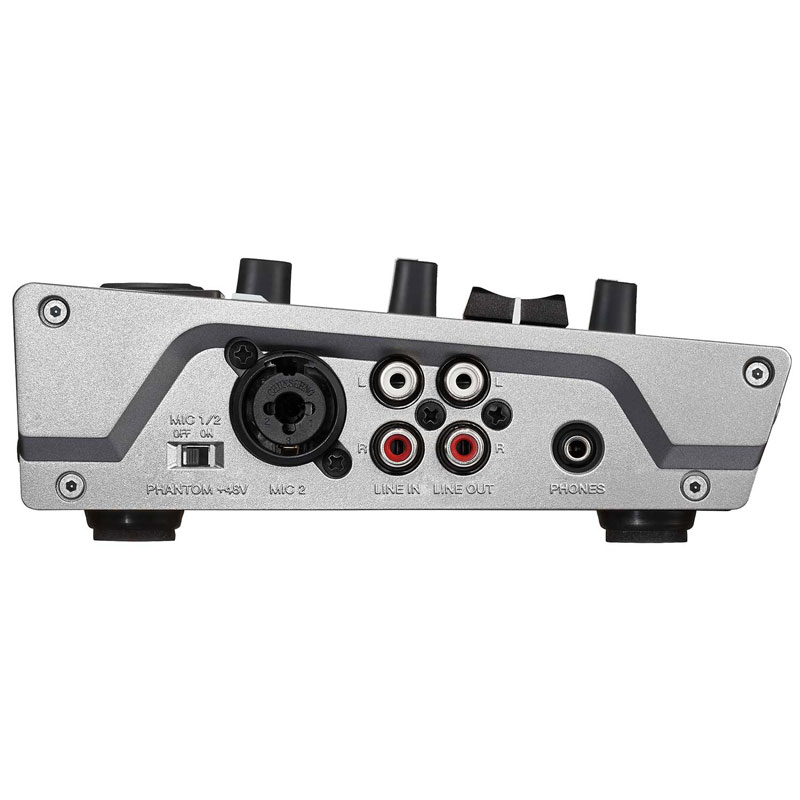

  • Input Connectors
  • VIDEO INPUT 1--3 connectors: HDMI type A
  • MIC IN 1--2 jacks: Combo type (XLR, 1/4-inch TRS phone), phantom power (DC 48 V, 10 mA Max)
  • LINE IN jacks: RCA phono type
  • USB STREAM port: USB B type
  • Output Connectors:
  • MAIN connector: HDMI type A
  • MONITOR connector: HDMI type A
  • LINE OUT jacks: RCA phono type
  • USB STREAM port: USB B type
  • PHONES jack: Stereo miniature phone type
  • Nominal Input Level
  • MIC IN 1--2 jacks: -60--+10 dBu (Maximum input level: +28 dBu)
  • LINE IN jacks: -10 dBu (Maximum input level: +8 dBu)Input Impedance
  • MIC IN 1--2 jacks: Minimum 10 k ohms (balanced, HEAD AMP GAIN: 0--+17 dBu), Minimum 5 k ohms (balanced, HEAD AMP GAIN: +18--+64 dBu)
  • LINE IN jacks: 15 k ohms
  • Nominal Output Level
  • LINE OUT jacks: -10 dBu (Maximum input level: +8 dBu)
  • PHONES jack: 92 mW + 92 mW (32 ohms)Output Impedance
  • LINE OUT jacks: 1 k ohms
  • PHONES jack: 10 ohms
  • Audio Effects
  • Auto mixing, Echo canceller, Howling canceller, EQ, Delay, Compressor, HPF, Gate, Reverb, Limiter, Voice changer
  • Audio Player
  • Number of Players: 4
  • Data Format: WAV (Linear PCM, 48 kHz, 16 bits stereo/44.1 kHz, 16 bits, stereo)COMMON SECTION
  • Connectors USB MEMORY port (HOST): USB A type (For USB flash drive, Still image, Audio player)
  • USB STREAM port (DEVICE): USB B type (For USB-VIDEO (USB 3.0), USB-AUDIO (USB2.0): stereo 1 IN/1 OUT, Remote control)
  • DC IN jack
  • Functions: Scene memory : 5
  • Panel lock function
  • EDID emulator
  • Auto switching (Auto scan, Beat sync switching, Video follow audio)
  • Power Supply
  • AC Adaptor
  • Current Draw 2 A
  • Power Consumption 24 W
  • Operation Temperature +0 to +40 degrees Celsius
  • +32 to +104 degrees Fahrenheit
  • Dimensions 314 (W) x 169 (D) x 66 (H) mm
  • Weight 1.6 kg
  • Accessories: Startup Guide
  • Leaflet “USING THE UNIT SAFELY”
  • AC adaptor
  • Power cord
