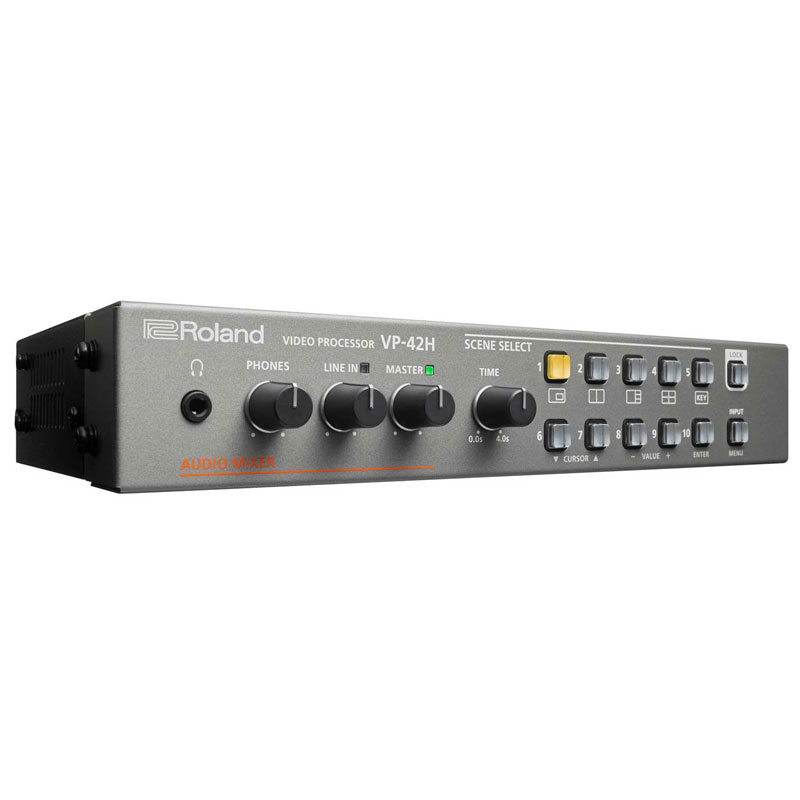

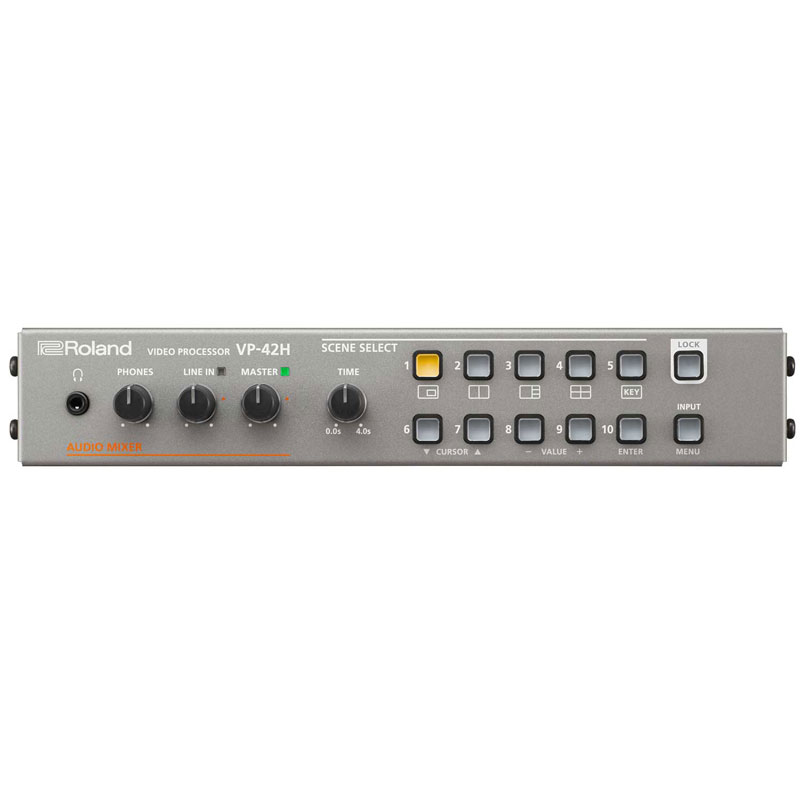

Roland VP-42H video processor

RSD216.000,00
(cena je sa uračunatim PDVom)
blank
blank

Besplatna dostava
Besplatna dostava je za sve artikle koji su plaćeni preko 15.000 dinara. Svaka pošiljka može biti osigurana dodatno/pošiljke do 70 000 dinara su osigurane.blank

Cenovnik dostave
Klikom na link posetićete stranicu sa ažuriranim cenovnikom kuriskih službi.blank

Načini plaćanja
Naručivanje preko našeg sajta u proseku traje manje od jednog minuta i odvija se kroz nekoliko jednostavnih koraka.

Opis proizvoda

Roland VP-42H video processor. The standard of visual content for presentations and events is increasing all the time. While some venues support multiple displays that can simultaneously output IMAG or presentation materials, it’s not always practical or affordable. But if you can’t make it work with multiple screens, then how about using a single large screen that can display everything you need. Traditionally, layering and switching multiple sources within a single display is complicated and expensive. Requiring highly skilled operators to keep it all working. This has pushed the technology out of reach for most event producers—until now. The Roland VP-42H video processor offers customizable compositions for up to four inputs, with motion-based scene switching for a stunning visual impact.



Tehničke specifikacije proizvoda

  • Combine up to four HDMI video sources to a single output
  • Supports multiple video resolutions up to 1080p60
  • Connect and switch multiple resolutions simultaneously
  • Motion Scene Switching creates fluid transitions between complex screen compositions
  • Browser-based network control for remote switching and simple set-up
  • Internal audio mixer, RCA inputs/outputs for embedding and de-embedding audio
  • Keyer function enables overlays and advanced compositions
  • Input still photos and logos via USB
  • Video
  • Processing 4:4:4 (Y/Pb/Pr, RGB), 10-Bit
  • 4:2:2 (Y/Pb/Pr), 10-Bit

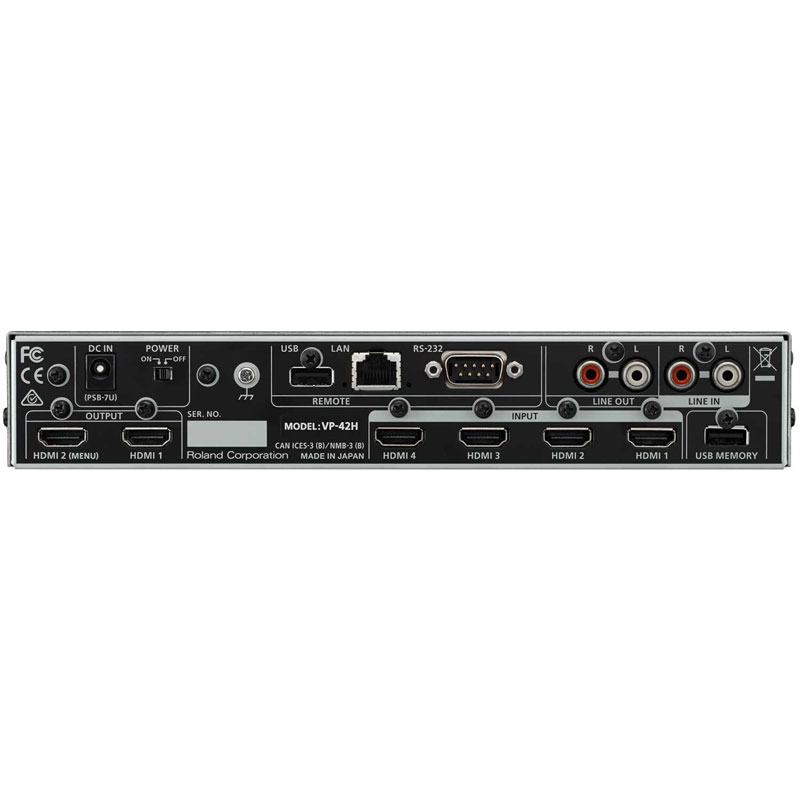

  • Input Connectors 4 x HDMI Type A
  • Output Connectors 1 x HDMI Type A (Program)
  • 1 x HDMI Type A (Menu)
  • HDCP Compliant Yes
  • Supported Formats & Resolutions 1080p: 59.94/50
  • 1080i: 59.94/50
  • 720p: 59.94/50
  • 576p: 50*
  • 576i: 50*
  • 480p: 59.94*
  • 480i: 59.94*
  • 1920 x 1200/60 RB, 1920 x 1080/60
  • 1600 x 1200/60
  • 1400 x 1050/60**
  • 1366 x 768/60**
  • 1280 x 1024/60**, 1280 x 800/60**, 1280 x 720/60**
  • 1024 x 768/60**
  • 800 x 600/60*
  • Effects Layers: x 4
  • PiP with Keyer: x 1
  • PiP: x 3
  • Still Image Support Internal Memory: x 1
  • Maximum Size: 1920 x 1200 Pixels
  • Format: Windows Bitmap File (.bmp), 24 bpp, Uncompressed
  • Audio
  • Sample Rate 48 kHz, 24-Bit
  • Input Connectors 4 x HDMI Type A
  • 1 x RCA Stereo
  • Output Connectors 2 x HDMI Type A*
  • 1 x RCA Stereo
  • 1 x 1/8" / 3.5 mm Headphone Stereo
  • Input Level -10 dBu (Maximum: +8 dBu)
  • Input Impedance 15 kOhms
  • Output Level Audio Output: -10 dBu (Maximum: +8 dBu)
  • Headphone Output: 72 mW + 72 mW (32 Ohms)
  • Output Impedance Audio Output: 1 kOhm
  • Headphone Output: 10 Ohms
  • Format HDMI: Linear PCM, 24-Bit, 48 kHz, 2-Ch
  • Processing Mixer: 4-Ch (Maximum Delay: 250 ms)
  • General
  • External Connectors Remote:
  • 1 x RS-232, DB-9 (Male)
  • LAN: 1 x RJ45
  • USB: 1 x USB Type-A (Future Expansion)
  • USB Memory:
  • 1 x USB Type-A
  • Functions Scene Memory: x 10
  • Test Pattern Generator
  • Test Tone Generator
  • EDID Emulator
  • Power Supply AC Adapter
  • Current Draw 2.1 A
  • Power Consumption 25 W
  • Operating Temperature 32 to 104°F / 0 to 40°C
  • Dimensions (WxDxH) 9.5 x 4.9 x 1.7" / 242 x 125 x 44 mm
  • Weight 2.6 lb / 1.2 kg
