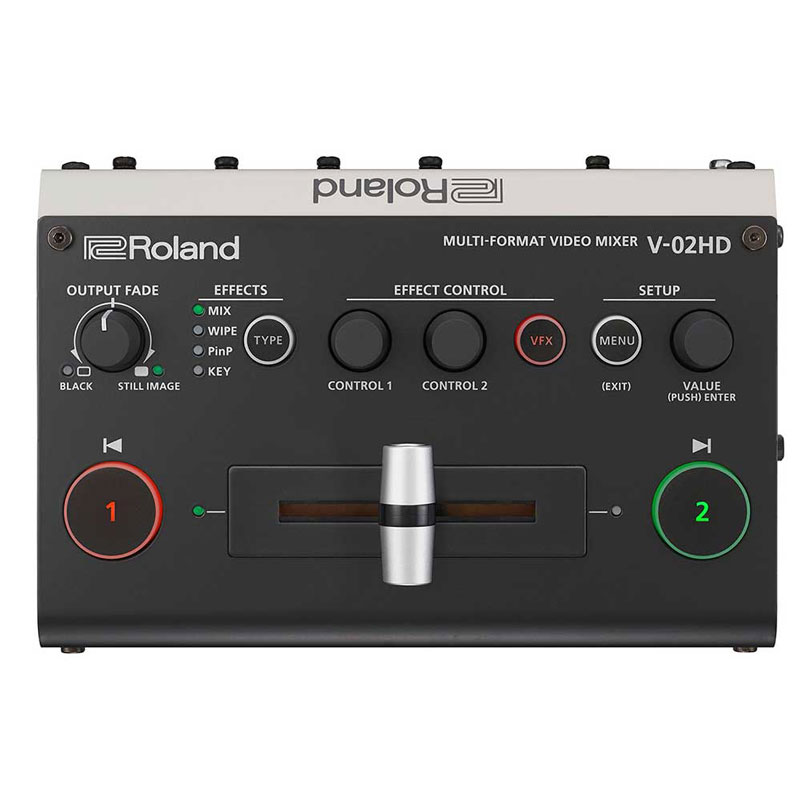

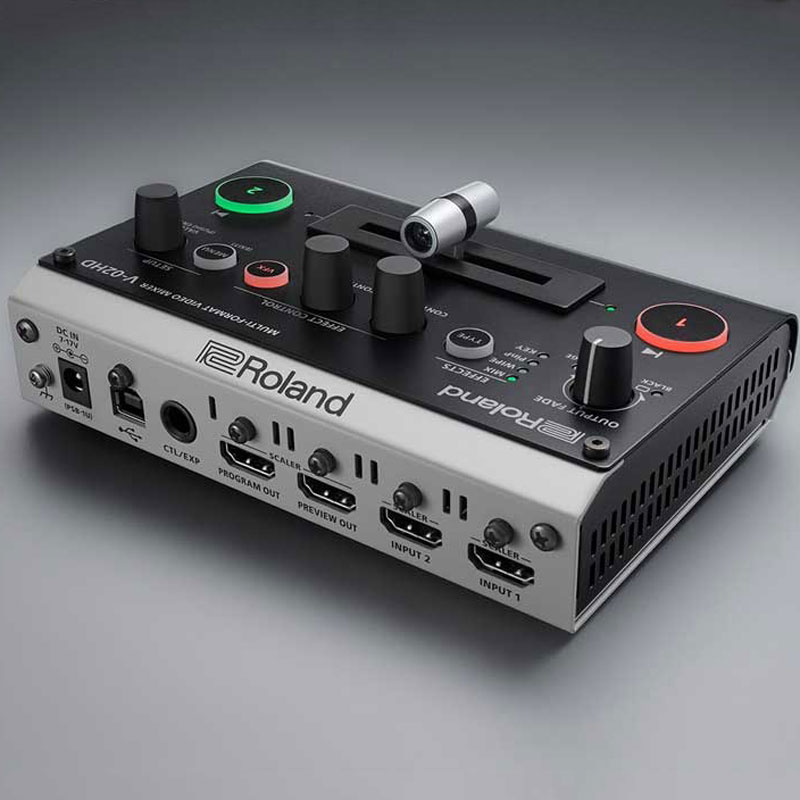

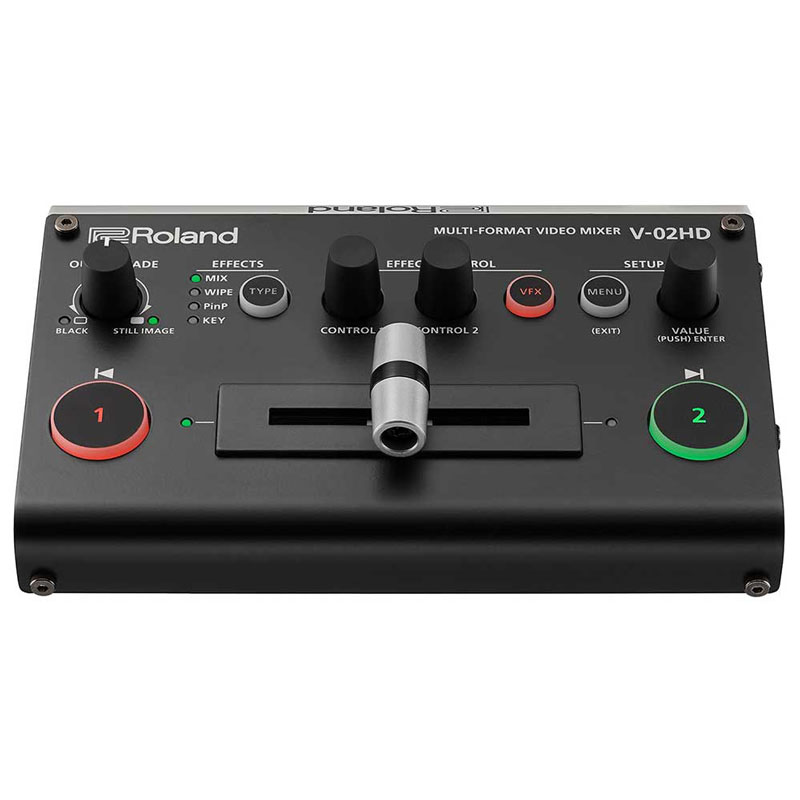

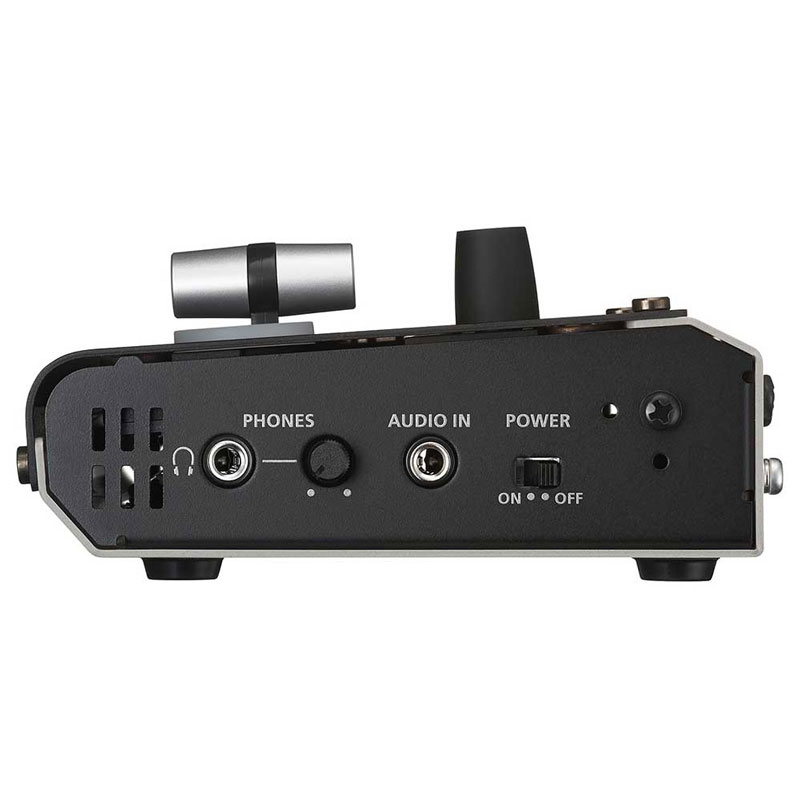

Roland V-02HD Micro Video Switcher

RSD67.260,00
(cena je sa uračunatim PDVom)
Dostupno po porudžbini.
blank

Besplatna dostava
Dostava je besplatna za online narudžbine fizičkih lica u vrednosti preko 15.000,00 dinara. Svaka pošiljka može biti osigurana dodatno/pošiljke do 70 000 dinara su osigurane.blank

Cenovnik dostave
Klikom na link posetićete stranicu sa ažuriranim cenovnikom kuriskih službi.blank

Načini plaćanja
Naručivanje preko našeg sajta u proseku traje manje od jednog minuta i odvija se kroz nekoliko jednostavnih koraka.

Opis proizvoda

Roland V-02HD Micro Video Switcher. Events or productions often bring serious challenges that are easily solved — if you have the right equipment. Roland’s versatile V-02HD multi-format video mixer replaces several standalone units; a simple switcher, high-quality scaler, input expander, audio solution and inline video effects / composition. Save on space and headaches by packing a V-02HD; the portable-yet-powerful device that lets you concentrate on producing your event or shooting your scenes, rather than trouble-shooting your gear.

Tehničke specifikacije proizvoda

  • Video Processing 4:4:4 (Y/Pb/Pr), 10-bitInput Connectors
  • INPUT 1--2: HDMI type A x 2
  • HDCP Supported
  • Multi-format Supported
  • Output Connectors
  • PROGRAM OUT: HDMI type A
  • PREVIEW OUT: HDMI type A
  • HDCP Supported
  • Multi-format Supported
  • Input Formats 480/59.94i, 480/59.94p, 720/59.94p, 1080/59.94i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *1, 576/50i, 576/50p, 720/50p, 1080/50i, 1080/50p, 1080/25p *2, 1080/23.98p, 1080/24p
  • VGA (640 x 480/60Hz), SVGA (800 x 600/60Hz), XGA (1024 x 768/60Hz)
  • WXGA (1280 x 800/60Hz), SXGA (1280 x 1024/60Hz)
  • FWXGA (1366 x 768/60Hz), SXGA+ (1400 x 1050/60Hz)
  • UXGA (1600 x 1200/60Hz), WUXGA (1920 x 1200/60Hz)
  • The refresh rate is the maximum value of each resolution.
  • Conforms to CEA-861-E,VESA DMT Version 1.0 Revision 11.
  • 1920 x 1200/60 Hz: Reduced blanking
  • The input interlaced video signal is converted to progressive video signal by internal processing.
  • 1 FRAME RATE = 59.94 Hz
  • 2 FRAME RATE = 50 Hz
  • Output Formats 480/59.94p, 720/59.94p, 1080/59.94i, 1080/59.94p *1, 576/50p, 720/50p, 1080/50i, 1080/50p *2
  • SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz)
  • WXGA (1280 x 800/60 Hz), FWXGA (1366 x 768/60 Hz)
  • SXGA (1280 x 1024/60 Hz), SXGA+ (1400 x 1050/60 Hz)
  • UXGA (1600 x 1200/60 Hz), WUXGA (1920 x 1200/60 Hz)
  • HD (1280 x 720/60 Hz), FHD (1920 x 1080/60 Hz)
  • Conforms to VESA DMT Version 1.0 Revision 11.
  • The output refresh rates of 800 x 600--1400 x 1050 are 75 Hz when the unit’s frame rate setting is 50 Hz.
  • 1920 x 1200/60 Hz: Reduced blanking
  • 1 FRAME RATE = 59.94 Hz
  • 2 FRAME RATE = 50 Hz
  • Video Effects Transition: CUT, MIX (DISSOLVE), WIPE (9 types)
  • Composition: PinP (RECTANGLE, CIRCLE, DIAMOND), KEY (Luminance Key, Chroma Key)
  • Visual Effects (14 types): MOSAIC, WAVE, RGB REPLACE, COLORPASS, NEGATIVE, COLORIZE, POSTERIZE, SILHOUETTE, EMBOSS, FIND EDGES, MONOCOLOR, HUE OFFSET, SATURATION OFFSET, VALUE OFFSET
  • Others: Flip horizontal, Flip vertical, Still Image Capture, Still Image Playback, Output fade (Audio, Video: WHITE or BLACK), Test pattern output
  • AUDIO: Audio Processing
  • Sampling rate: 24 bits/48 kHz
  • Audio formats: Linear PCM, 24 bits/48 kHz, 2 ch
  • Input Connectors
  • INPUT 1--2: HDMI Type A x 2
  • AUDIO IN: Stereo miniature type
  • Output Connectors
  • PROGRAM OUT: HDMI type A
  • PREVIEW OUT: HDMI type A
  • PHONES: Stereo miniature type
  • Input Level
  • AUDIO IN: -10 dBu (Maximum: +8 dBu)Input Impedance
  • AUDIO IN: 45 k ohms
  • Output Level
  • PHONES: 92 mW + 92 mW (32 ohms)Output Impedance
  • PHONES: 10 ohms
  • Audio Effects
  • Delay, High pass filter, Compressor, Noise gate, Equalizer, Multi-band compressor, Limiter, Test tone output
  • OTHERS: Other Connectors
  • USB:USB B Type (for backup from PC, for remote control from iPad)
  • CTL/EXP:1/4-inch TRS phone type
  • Other Functions
  • Preset Memory (8 types)
  • Panel lock function
  • EDID Emulator
  • Auto Switching
  • Auto Input Detect
  • Power Supply AC Adaptor Current Draw 1.1 A
  • Power Consumption 10.0 W
  • Operation Temperature+0 to +40 degrees Celsius
  • +32 to +104 degrees Fahrenheit
  • Dimensions160 (W) x 108 (D) x 51 (H) mm
  • Weight (excluding AC adaptor)0.6 kg
  • Accessories: Startup Guide
  • AC adaptor Power cord
  • Cord hook
  • Options (sold separately)Footswitch: BOSS FS-5U, FS-6, FS-7
  • Expression Pedal: EV-5, BOSS FV-500L, FV-500H
