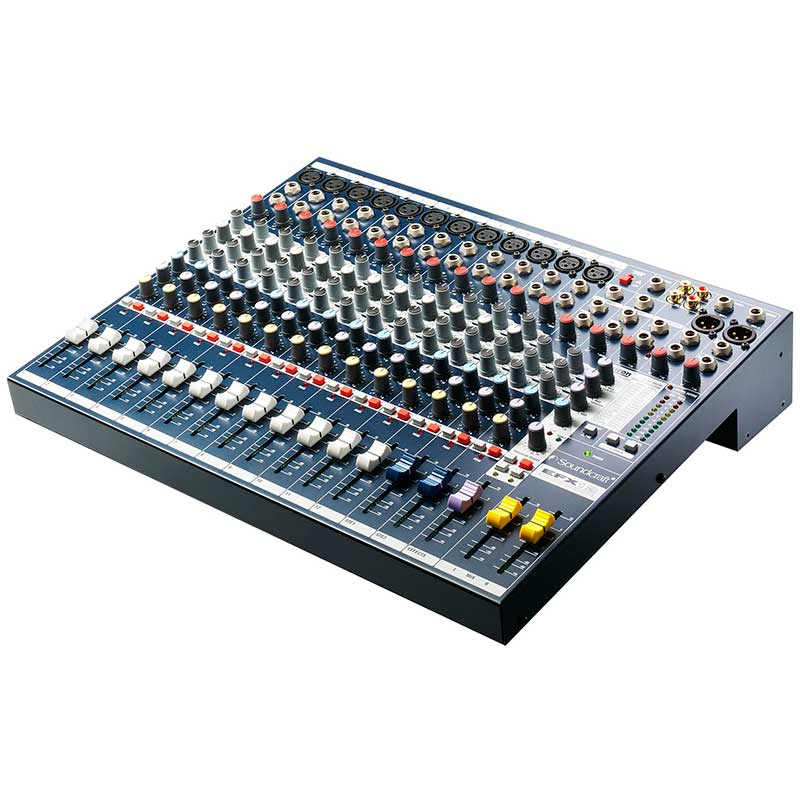

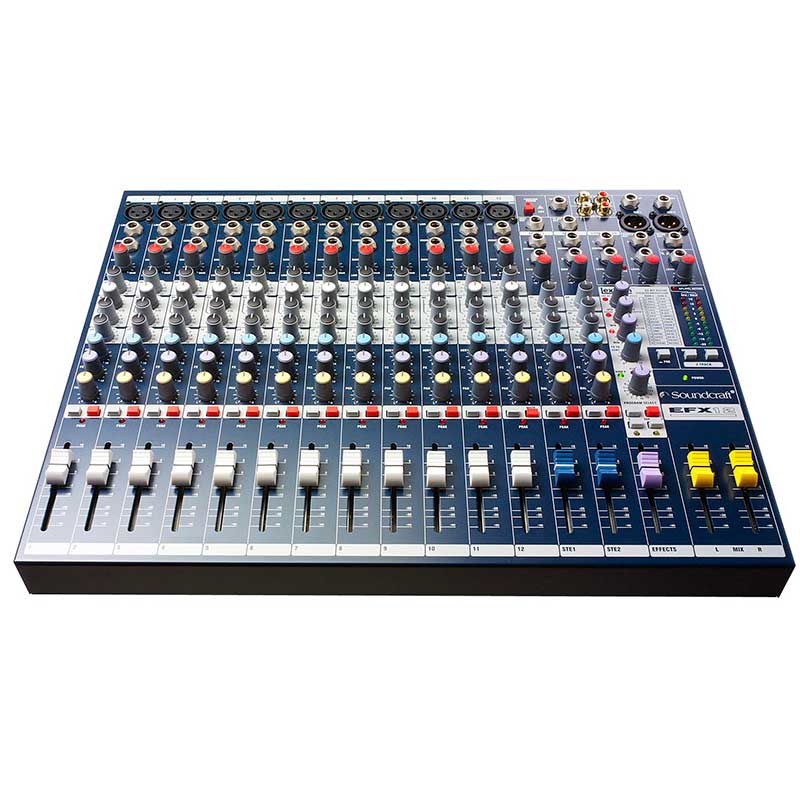

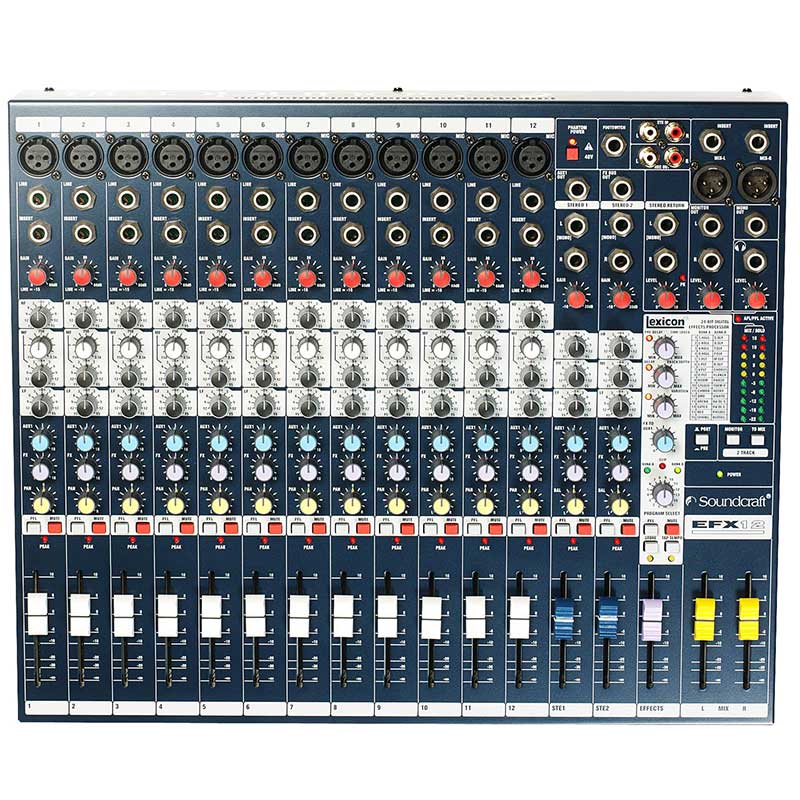

Soundcraft EFX12 mikseta sa efektima

RSD69.803,00
(cena je sa uračunatim PDVom)
Vreme isporuke: 7 do 10 dana

Besplatna dostava
Besplatna dostava je za sve artikle koji su plaćeni preko 15.000 dinara. Svaka pošiljka može biti osigurana dodatno/pošiljke do 70 000 dinara su osigurane.

Cenovnik dostave
Klikom na link posetićete stranicu sa ažuriranim cenovnikom kuriskih službi.

Načini plaćanja
Naručivanje preko našeg sajta u proseku traje manje od jednog minuta i odvija se kroz nekoliko jednostavnih koraka.

Opis proizvoda

The Soundcraft EFX™ Series combines all the features of the popular Soundcraft EPM™ mixer with a built-in 24-bit, digital Lexicon® effects processor, expanding the Soundcraft low-cost, multipurpose compact range. The Soundcraft EFX mixer uses the same AudioDNA® processor featured in many of the Digitech® and Lexicon outboard equipment including the highly respected Lexicon MX400 processor. With over 35 years experience, the Lexicon name is synonymous with the best reverb and processing in the business, ensuring the finest quality effects not usually found in a console at this price level.
The Effects section fits neatly into the mixers compact framework which is available in 8 or 12 mono input variants, both with 2 stereo channels and an effects send on each channel. There are 32 effects to choose from with a tap tempo function, 3 effects parameter controls and a user effects setting store facility. An effects channel level clip LED and Mute function gives the user even more flexibility.
The emphasis with the Soundcraft EFX is very firmly on quality build and audio performance, with an easy to understand control surface in line with the Soundcraft professional range. The Soundcraft EFX uses the highly-transparent GB30 Mic amp (designed by Graham Blyth for the company’s 30th anniversary, and also used on the larger LX7ii and GB Series professional consoles).The Soundcraft EFX also offers all the features of the Soundcraft EPM most notably a configurable aux send, XLR and ¼" metal jack connector sockets, RCA phono stereo playback inputs and record outputs, 3-band EQ with a swept mid on the mono inputs, 3-band EQ on the 2 stereo inputs, TRS insert sockets, inserts on all mono inputs, ten-segment LED output metering and a headphone output.



Tehničke specifikacije proizvoda

  • Soundcraft EFX 12-Channel Mixer Specifications:
  • Frequency Response Mic/line Input to any Output: +/-1.5dB,20Hz 20kHz
  • T.H.D. Mic Sensitivity -30dBu,+14dBu @ Mix output: < 0.02% @ 1kHz
  • Noise
  • Mic Input E.I.N. (maximum gain): -127dBu (150 Ohms source)
  • Aux, Mix, and Masters (@ 0dB,faders down): < -85dBu
  • Crosstalk (@ 1kHz)
  • Channel Mute: > 96dB
  • Fader Cut-off (rel +10 mark): > 96dB
  • Aux Send Pots Offness: > 86dB
  • EQ (Mono inputs)
  • HF: 12kHz,+/-15dB,
  • MF: (swept): 150Hz 3.5kHz,+/-15dB
  • LF: 80Hz,+/-15dB
  • Q: 1.5
  • EQ (Stereo inputs)
  • HF: 12kHz,+/-15dB,
  • MF: 720Hz,+/-15dB
  • LF: 80Hz,+/-15dB
  • Power Consumption: Less than 35W
  • Operating Conditions: Temperature Range 5°C to 40°C
  • Input and Output Specs
  • Input & Output Levels
  • Mic Input: +15dBu max.
  • Line Input: +30dBu max.
  • Stereo Input: +30dBu max.
  • Mix Output: +20dBu max.
  • Headphones (@150 Ohms): 300mW
  • Input & Output Impedances
  • Mic Input: 2k Ohms
  • Line Input: 10k Ohms
  • Stereo Input: 65k Ohms (stereo),35k Ohms (mono)
  • Outputs: 150 Ohms (balanced),75 Ohms (unbalanced)
  • Dimensions & Weight
  • Height: 3.6
  • Width: 17.0"
  • Depth 14.3"
  • Weight: 12.8 lbs.
"
