Neumann KH 810 aktivni studijski subwoofer (KOMAD)

2768

Besplatna dostava
Besplatna dostava je za sve artikle koji su plaćeni preko 15.000 dinara. Svaka pošiljka može biti osigurana dodatno/pošiljke do 70 000 dinara su osigurane.

Cenovnik dostave
Klikom na link posetićete stranicu sa ažuriranim cenovnikom kuriskih službi.

Načini plaćanja
Naručivanje preko našeg sajta u proseku traje manje od jednog minuta i odvija se kroz nekoliko jednostavnih koraka.

Opis proizvoda

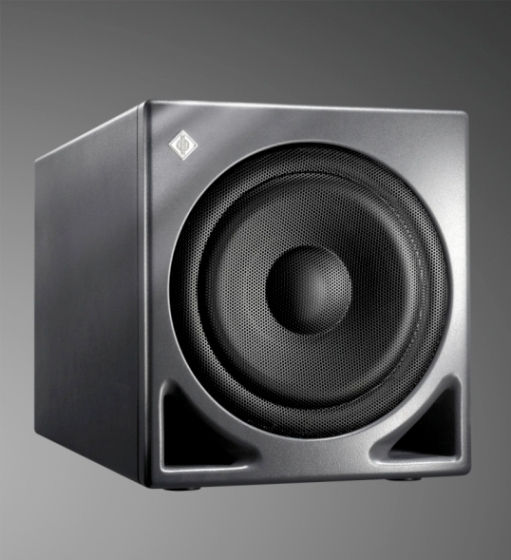

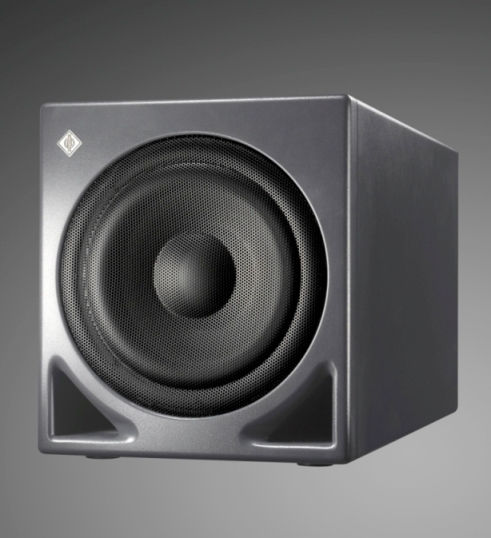

KH 810 Active Subwoofer
Active subwoofer with peak and thermal protected 200 W remotable amplifier. Magnetically shielded 10” woofer with driver protection limiter. Robust cabinet using low-resonance materials and metal grille. 7.1 High Definition Bass Management with remote controllable volume (using NRC 1 or RS-232)

Tehničke specifikacije proizvoda

  • Acoustics
  • −3 dB free field frequency response 18 - 300 Hz, ± 3 dB
  • Pass band free field frequency response 19 - 300 Hz, ± 2 dB
  • Self-generated noise level at 10 cm < 20 dB(A)
  • Total harmonic distortion < 0.5 % at 95 dB SPL at 1 m > 45 Hz
  • Max. SPL In half space at 3% THD 110.7 dB SPL
  • Max. SPL with pink noise In half space at 1 m
  • 112 dB SPL
  • Averaged between 40 and 90 Hz
  • Electronics
  • Amplifier, cont. (peak) output power (THD < 0,1 %) 160 W (200 W)
  • Controller design Analog, active
  • Main channel crossover frequency 80 Hz
  • Crossover slope 24 dB/oct
  • Equalization: Low cut 30 Hz, 0 … −12 dB
  • Parametric Equalizer Bypassable
  • Parametric Equalizer - Gain +4 … −12 dB
  • Parametric Equalizer - Frequency 20 … 120 Hz
  • Parametric Equalizer - Q 1 … 8
  • Time of Flight adjustment delay 0 … 4.69 ms @ 80 Hz (4-step 0, 45, 90, 135), - 180° Switch
  • Volume Control Hardware remote or RS-232
  • Calibration Tools Internal signal generator
  • Protection circuitry Peak and Thermo Limiters
  • Infrasonic filter frequency; slope 6.5 Hz; 12 dB/oct.
  • Remote control On a CAT-5

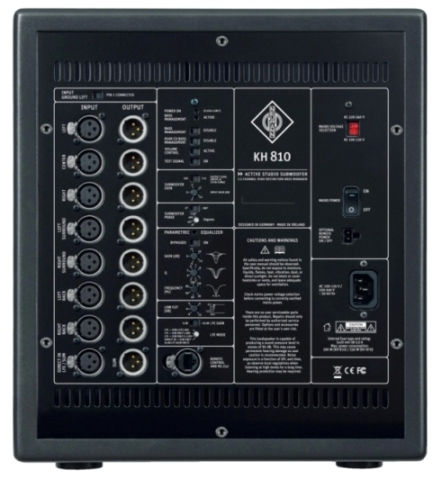

  • Analog Inputs and Outputs
  • Input/Output channels 7.1 / 7+Sum
  • Impedanz electrically balanced XLR, 13 kΩ
  • Input sensitivity −8 and +6 dBu
  • Max. input level
  • +19 dBu (6.9 Vrms) / per channel
  • CMRR > 60 dB @ 15 kHz
  • Interchannel isolation (1 kHz), level matching −95 dB, ±0.1 dB
  • Volume control range, resolution 118 dB, 0.25 dB
  • Dynamic range, THD+N 119 dB(A), <0. 001% (-100 dB)
  • LFE Modes 80+re-routing, 80, 120, wide
  • LFE Gain 0 / +10 dB
  • Gain Control +2 … −12 dB
  • Displays and indicators: power on Red LED
  • - limit/clip Red LED “Flashing”
  • - bass management active Green LED
  • Mains power 220 - 240 / 100 - 120 V AC (switchable)
  • Power consumption - Idle 20 W
  • Power consumption - Full output 290 W
  • Mechanics
  • Cabinet surface finish Painted
  • Color: standard
  • Anthracite (RAL 7021)
  • Baffle cover Included metal grille
  • Drivers Magnetically shielded
  • Woofer 265 mm (10\\\\\\\)"
  • Height x width x depth 360 x 330 x 645 mm (14.2\\\\\\\"" x 13\\\\\\\"" x 25.4\\\\\\\"")""
  • Internal net volume 41.5 l""
  • External volume 76.6 l""
  • Weight 26 kg (57.2 lbs)""
  • Delivery includes 1x KH 810"
  • 3x Power cables (Euro UK USA)
  • 1x Operating manual
  • 1x Supplement “Getting Started Quickly”
"
