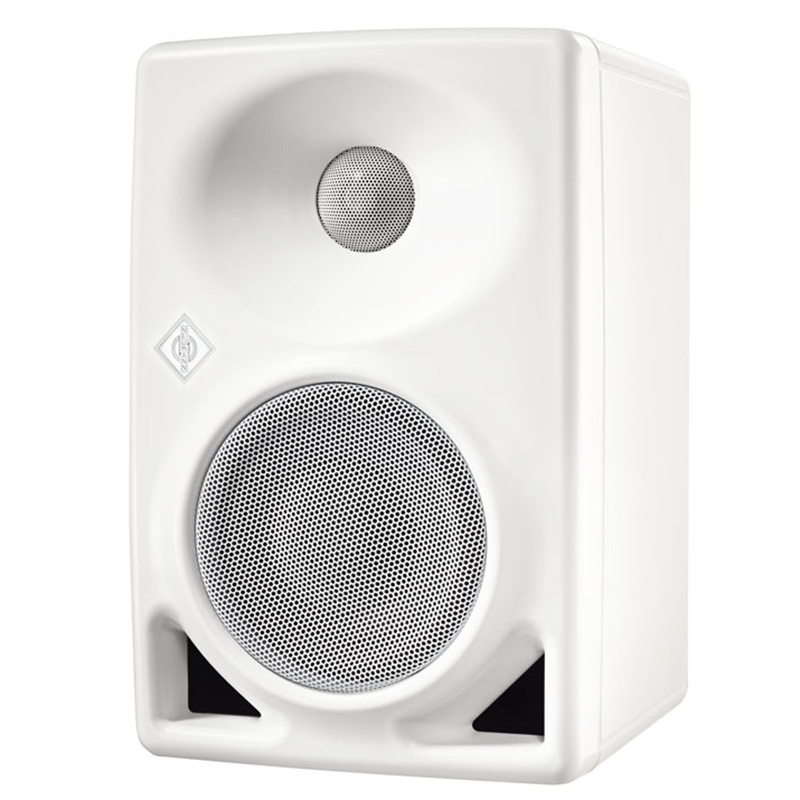

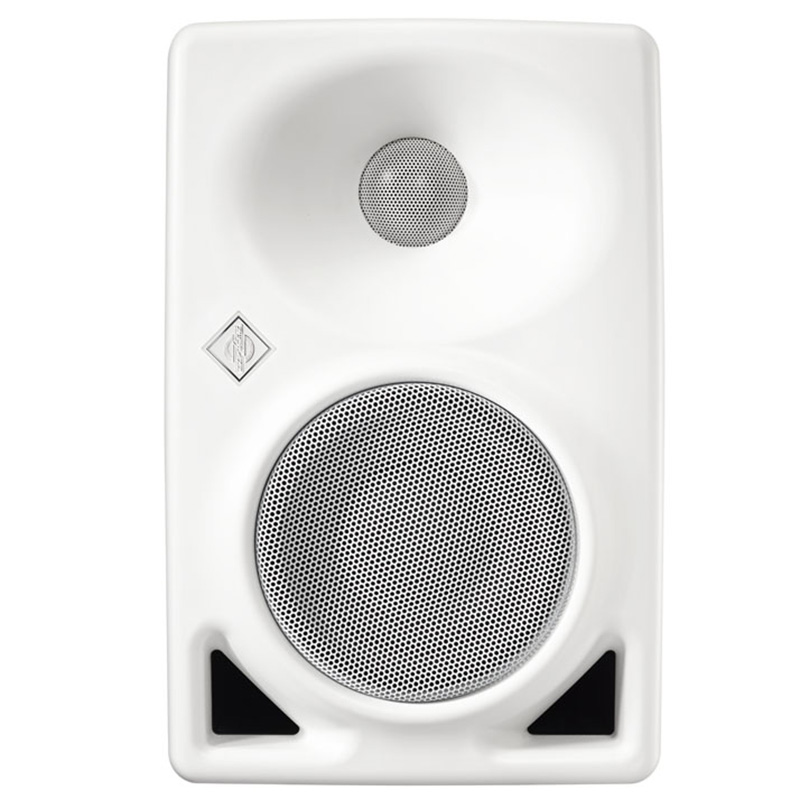

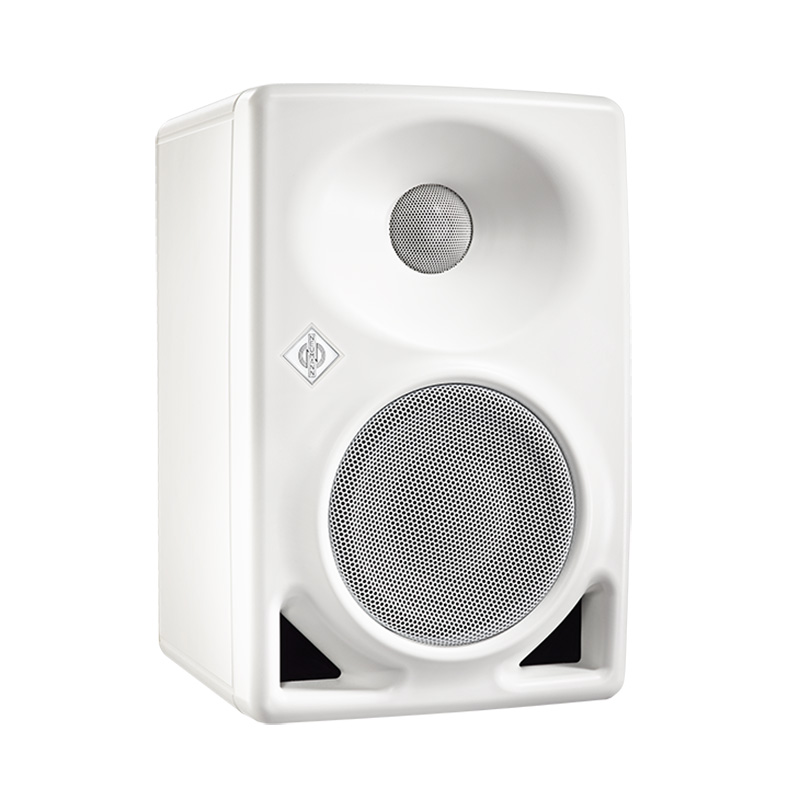

Neumann KH 80 DSP A W EU Powered Studio Monitor

499,00
Garancija dve godine!

Besplatna dostava
Besplatna dostava je za sve artikle koji su plaćeni preko 15.000 dinara. Svaka pošiljka može biti osigurana dodatno/pošiljke do 70 000 dinara su osigurane.

Cenovnik dostave
Klikom na link posetićete stranicu sa ažuriranim cenovnikom kuriskih službi.

Načini plaćanja
Naručivanje preko našeg sajta u proseku traje manje od jednog minuta i odvija se kroz nekoliko jednostavnih koraka.

Opis proizvoda

With its digital core, the KH 80 DSP enables filtering functions and room adjustment options, which brings reference level reproduction to any environment. Even with its compact design, it has extraordinary reserve capacity - as well as the classic strengths of the Neumann monitor philosophy: clearly defined dispersion angle, distortion-free design and sophisticated material selection. The Neumann developers know every nuance, every angle and every wave reflection of the KH 80 DSP. It sounds so pure because they are directing every sound wave so precisely. The KH 80 DSP’s design is based on computer simulations that calculate with a level of accuracy that no one other than Neumann does. The Mathematical Modeled Dispersion Waveguide (MMD™) provides the studio series with a solid base for precise sound direction that remains unique. Maths has never sounded so good. It might be a project studio, an outside broadcast van, a corner at work or just a brick building: The room defines the sound. Surfaces and corners in the room cause interference, diffraction, reflection, and refraction: all are forms of distortion. For a really true sound, without acoustic-physical “accidents”, you normally need expensive equipment plus plenty of time and expertise to align it correctly – or smart algorithms. Neumann’s DSP engine optimizes the sound output of the KH 80 DSP, delivering quality way above the price-tag. And the best part: You don’t need to be an expert to perfectly adjust the system to your environment.

Tehničke specifikacije proizvoda

  • Free field frequency response ±6 dB 53 Hz … 21 kHz
  • Free field frequency response ±3 dB 57 Hz … 21 kHz
  • Free field frequency linearity deviation between 100 Hz and 10 kHz ± 0.7 dB
  • Reproduction accuracy between 100 Hz and 10 kHz: 100%, 80%, 50% of loudspeakers produced ±0.26; ±0.23; ±0.17 dB
  • Self-generated noise at 10 cm (with input gain set to 100 dB SPL for 0 dBu) <20 dB(A) SPL
  • Sine wave output with a THD < 0.5 % at 1 m in half space 90 dB SPL (>200 Hz)
  • Max. SPL calc. in half space at 3% THD at 1m (averaged between 100 Hz and 6 kHz) 108.8 dB SPL
  • Max. SPL in full space at 3% THD at 1m (averaged between 100 Hz and 6 kHz) 102.8 dB SPL
  • Bass capability: Max. SPL in half space at 3% THD at 1m (averaged between 50 Hz and 100 Hz) 92.1 dB SPL
  • Max. short term SPL with IEC-weighted noise (IEC 60268-5) at 1 m, in typical listening conditions 104 dB(C) SPL
  • Max. short term SPL with music material at 2.3 m in typical listening conditions (pair / full range) 93 dB(C) SPL
  • Max. short term SPL with music material at 2.3 m, in typical listening conditions (pair with subwoofer) 100 dB(C) SPL
  • Max. long term SPL with pink noise at 2.3 m, in typical listening conditions (single / pair full range) 88 / 93 dB(C) SPL
  • Max. long term SPL with pink noise at 2.3 m, in typical listening conditions (single / pair with subwoofer) 91 / 96 dB(C) SPL
  • Analog input(s) XLR / 6.3 mm (¼”) Jack: analog electronically balanced
  • Analog input impedance 14k Ohms
  • Max. input level +24 dBu for 94 dB SPL setting+18 dBu for 100 dB SPL setting+10 dBu for 108 dB SPL setting+4 dBu for 114 dB SPL setting
  • Common mode rejection ratio (CMRR) >56 dB @ 15 kHz
  • Volume control via Neumann.Control software
  • Volume control range; resolution 0 … -∞ dB; 0.1 dB
  • Input gain control (sensitivity) 0 dB ... -15 dB
  • Output level control (output level in 1 m based on 0 dBu input level) 94; 100; 108; 114 dB SPL
  • Digital converter: resolution; design 24-bit DAC; Δ∑
  • Digital converter: sampling rate 48 kHz
  • Digital internal sampling rate 48 kHz
  • Dynamic range A-D 114 dB(A)
  • Dynamic range A-D-A 111 dB(A) woofer; 112 dB(A) tweeter
  • Dynamic range D-A 114 dB(A) woofer; 117 dB(A) tweeter
  • Latency 2 ms (A-D-A linear phase)
  • Delay: User adjustable delay range 0 … 70 ms
  • Delay: Resolution: time; distance 0.1 ms; 3.44 cm (1 3/8”)
  • Delay: Max. frames Audio-video synchronisation (lip sync) 1.75 (40 ms frames); 2.1 (33 ms frames)
  • Delay: Time-of-flight maximum distance 24 m (79 ft)
  • Controller design Digital; active
  • Crossover frequency 1.8 kHz
  • Crossover slope 48 dB/oct; 8th order with phase correction
  • Equalization: Low-Mid 0; -1.5; -3; -4.5 dB
  • Equalization: via Neumann.Control software 8 x full parametric IIR + low / high shelf global balance
  • FIR phase correction Linear phase (170 Hz ... 16 kHz; +/- 45°)
  • Protection circuitry Independent soft clip, peak and thermo limiters for woofer and tweeter; Woofer excursion limiter; thermo limiter for the electronics and amplifiers
  • Infrasonic filter: frequency; slope 61 Hz; 12 dB/oct.
  • Remote control Neumann.Control software via an RJ45 connector carrying standard IP data
  • Display: On; Normal Operation Neumann logo “White”
  • Display: Identification Neumann logo “Rosé”
  • Display: Limit / Clip / Errors / Protection /Boot Mute / Shut Down Mute Neumann logo “Red”
  • Display Brightness via Neumann.Control
  • Output power woofer amplifier (THD+N with limiter deactivated: 10%) 120 W
  • Output power tweeter amplifier (THD+N with limiter deactivated: 10%) 70 W
  • Output power woofer amplifier (THD+N with limiter deactivated: 0.1%) 90 W
  • Output power tweeter amplifier (THD+N with limiter deactivated: 0.1%) 50 W
  • Mains Power Supply: input voltage; frequency 100-240 V; 50/60 Hz
  • Power consumption (230 V / 100 V): Standby <330 / <50 mW
  • Power consumption (230 V / 100 V): Idle 9 / 8 W
  • Power consumption (230 V / 100 V): Full output 180 W
  • In-rush current (Peak) 20 A
  • Standby Disabled; 90 mins (default); user defined in software
  • Cabinet material Composite polycarbonate
  • Cabinet surface finish; color (front / back) Painted, White (RAL 9016)
  • Operating conditions +10° C to +40° C (+50° F to +104° F); <75% RH; non-condensing
  • Transport/storage conditions -25° C to +60° C (-13° F to 158° F); <90% RH; non-condensing
  • Woofer 100 mm (4") with protecting black metal grille
  • Tweeter 25 mm (1") with protecting black metal grille
  • Mounting points 2 x M6 threaded inserts with 70 mm spacing on back panel; thread depth 15 mm (5/8”)
  • Product dimensions (height x width x depth) 233 x 154 x 194 mm (9 1/8" x 6" x 7 5/8")
  • External net volume 6.7 liters
  • Product weight 3.5 kg (7 lbs 8 oz)
  • Packed dimensions (height x width x depth), mm (inches) 345 x 277 x 243 mm (13 5/8" x 10 7/8" x 9 5/8")
  • Packed weight 4.1 kg (9 lbs 1 oz)
  • Packed cube 0.023 m³
