Neumann KH 310 A aktivni studijski monitor

2099

Besplatna dostava
Besplatna dostava je za sve artikle koji su plaćeni preko 15.000 dinara. Svaka pošiljka može biti osigurana dodatno/pošiljke do 70 000 dinara su osigurane.

Cenovnik dostave
Klikom na link posetićete stranicu sa ažuriranim cenovnikom kuriskih službi.

Načini plaćanja
Naručivanje preko našeg sajta u proseku traje manje od jednog minuta i odvija se kroz nekoliko jednostavnih koraka.

Opis proizvoda

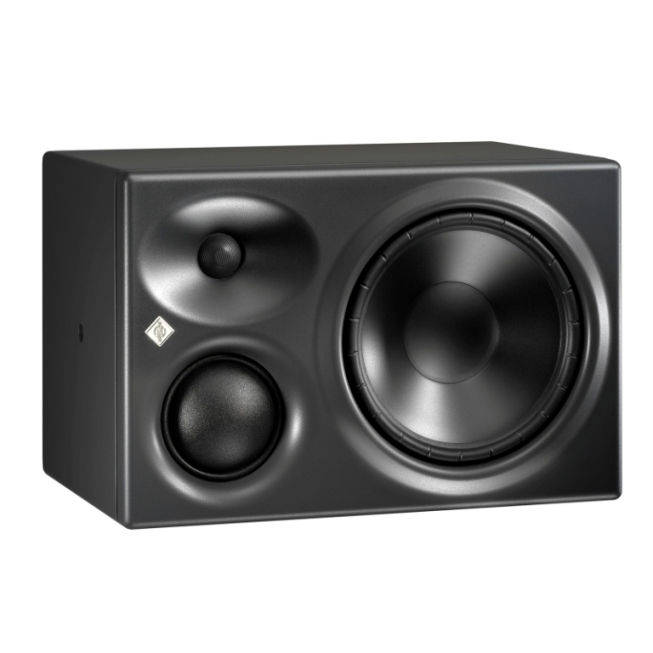

KH 310 A - Active Studio Monitor
Three-way tri-amplified monitor with thermally protected 90 + 90 + 210 W class A/B-amplifiers. Limit and clip indicated by dimmable logo LED. Magnetically shielded 1" alloy fabric dome tweeter, 3" soft dome midrange and 8 1/4" composite-sandwich membrane woofer. Tw

Tehničke specifikacije proizvoda

  • Acoustics
  • −3 dB free field frequency response 34 Hz - 21 kHz, ± 3 dB
  • Pass band free field frequency response 36 Hz - 20 kHz, ± 2 dB
  • Self-generated noise
  • (with input gain set to 100 dB for 0 dBu) < 20 dB(A) at 10 cm
  • Total harmonic distortion < 0.5 % at 95 dB SPL at 1 m > 85 Hz
  • Max. SPL in full space / calc. in half space
  • at 3% THD at 1m 110.3 / 116.3 dB SPL
  • (averaged between 100 Hz and 6 kHz)
  • Bass capability: Max. SPL in half space
  • at 3% THD at 1m 104.5 dB SPL
  • (averaged between 50 Hz and 100 Hz)
  • Max. short term SPL with IEC-weighted noise (IEC 60286-5) at 1 m, in typical listening conditions 113 dB(C) SPL
  • Max. short term SPL with music material
  • at 2.3 m, in typical listening conditions (pair) 100 dB(C) SPL (full range)
  • 107 dB(C) SPL (with subwoofer)
  • Max. long term SPL with pink noise at 2.3 m, in typical listening conditions (single/pair) 93 / 99 dB(C) SPL (full range)
  • 94 / 100 dB(C) SPL (with subwoofer)
  • Electronics
  • Bass / Midrange / Treble Class AB amplifiers, cont. (peak) output power* 150 W (210 W) / 70 W (90 W) / 70 W (90 W)
  • Controller design Analog, active
  • Crossover frequencies 650 Hz / 2 kHz
  • Crossover slope 24 dB/oct, 4th order
  • Equalization - Bass 0, −2.5, −5, −7.5 dB
  • Equalization - Low Mid 0, −1.5, −3, −4.5 dB
  • Equalization - Treble +1, 0, −1, −2 dB
  • Protection circuitry Independent thermo limiters for woofer, midrange dome and tweeter. Woofer soft clip and excursion limiters
  • Infrasonic filter - frequency; slope 15 Hz; 6 dB/oct
  • Input XLR, analog electronically balanced
  • Impedance, electrically balanced > 13k Ohms
  • Input gain control (sensitivity) 0 dBu to −15 dBu
  • Output level control 94, 100, 108, 114 dB SPL
  • CMRR > 56 dB @ 100 - 15 kHz
  • Max. input level +24 dBu
  • Displays and indicators - power on Neumann logo “White”
  • Displays and indicators - limit / clip Neumann logo “Red”
  • Mains Power Supply, voltage; frequency 100-240 V~; 50/60 Hz
  • Power consumption - idle 24 W
  • Power consumption - full output 300 W
  • Mechanics
  • Cabinet surface finish, colour Painted wood and polyurethane,
  • Anthracite (RAL 7021).
  • Aluminum electronics panel, Black.
  • Baffle cover Optional removable metal grille
  • Operating conditions +10° C to +40° C (+50° F to +104° F),
  • <90% RH, non-condensing
  • Transport/storage condition −25° C to +70° C (−13° F to 158° F),
  • <90% RH, non-condensing
  • Drivers Magnetically shielded
  • Woofer 210 mm (8 1/4")
  • Midrange 75 mm (3")
  • Tweeter 25 mm (1")
  • Mounting points 2 x M8 on side panels, depth from outside of cabinet 25 mm (1”).
  • Rear panel screws for attaching LH 41 base plate.
  • Rear panel bracket.
  • Product dimensions
  • (height x width x depth), mm (inches) 253 x 383 x 292 mm
  • (10" x 15 1/8" x 11 1/2")
  • Net volume, internal / external 16.2 liters / 28.3 liters
  • Product weight 13.0 kg (28 lbs 11 oz)
  • Packed dimensions
  • (height x width x depth), mm (inches) 590 x 380 x 360 mm
  • (23 1/4" x 15" x 14 1/8")
  • Packed weight and cube 16.8 kg (37 lbs 1 oz), 0.081 m³
  • Delivery includes 1x KH 310 A
  • 3x Main cables (European, UK and US version
  • 4x Self-adhesive feet
  • 1x Operating manual
  • 1x Supplement "Getting Started Quickly"
