MONACOR EDL-10TW/WS plafonski 100V zvučnik
Garancija dve godine!
Opis proizvoda

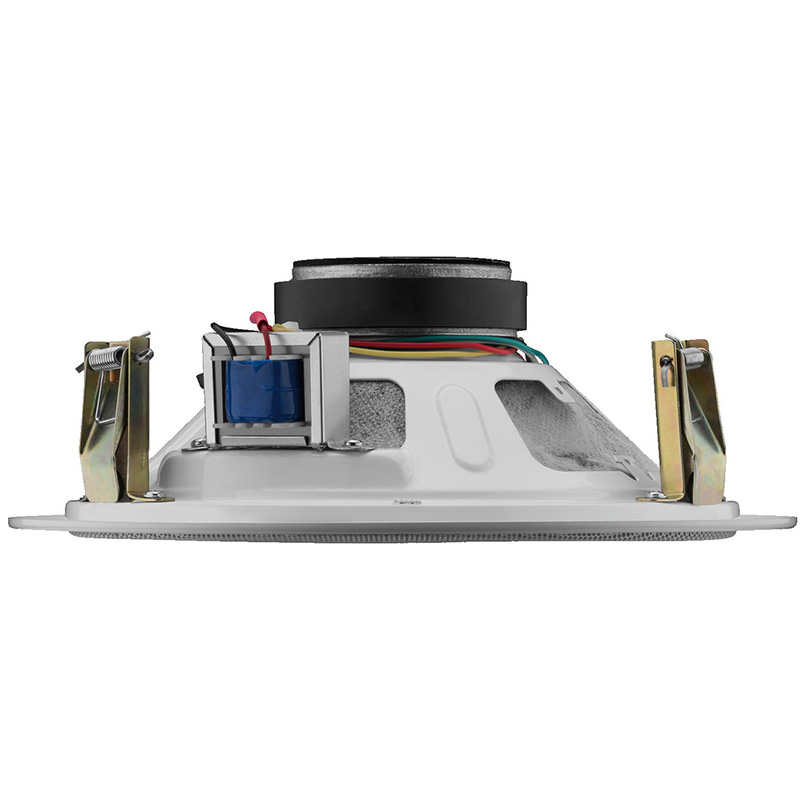

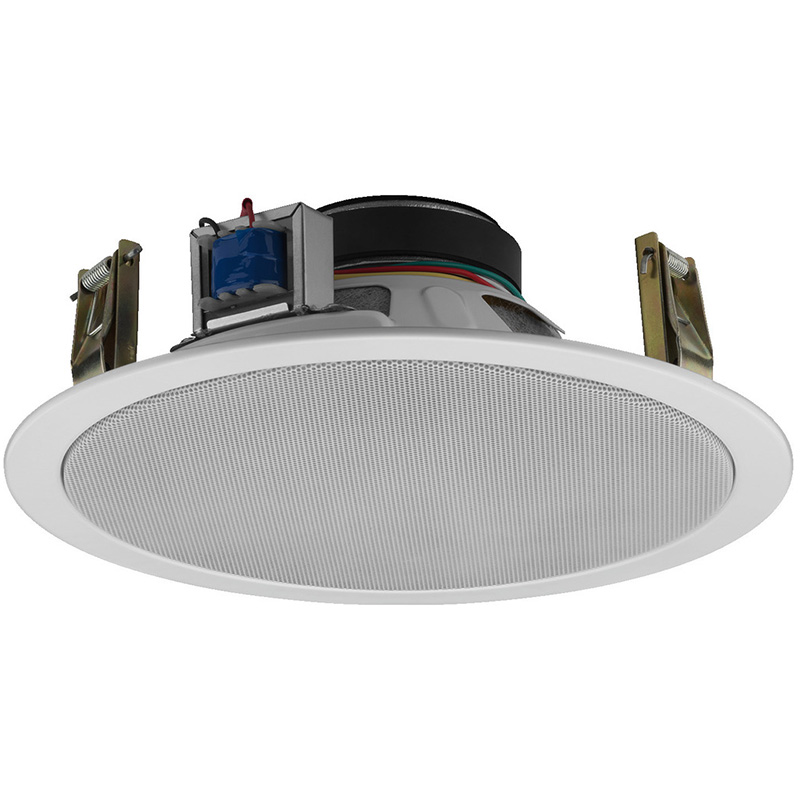

PA ceiling speaker, with integrated tweeter.
- 100 V line technique
- 20 cm (8") 2-way coaxial speaker
- Metal housing with protective speaker grille
- Excellent sound quality with consistent radiation pattern
- Quick-mounting facility with spring clips
- For a ceiling thickness from 10 to 40 mm
Tehničke specifikacije proizvoda
- Transmission method 100 V

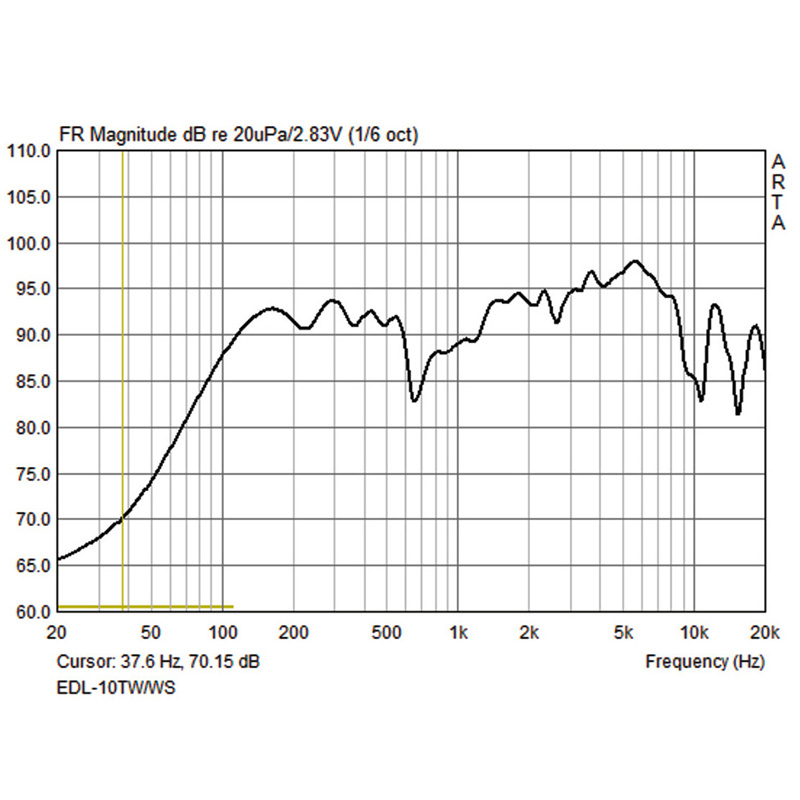

- Frequency range 50-20,000 Hz
- Power rating (RMS) 10/6/4/2 W
- Sensitivity 95 dB/W/m
- Max. rated SPL 105 dB
- Radiation angle, horizontal 110°
- Radiation angle, vertical 110°

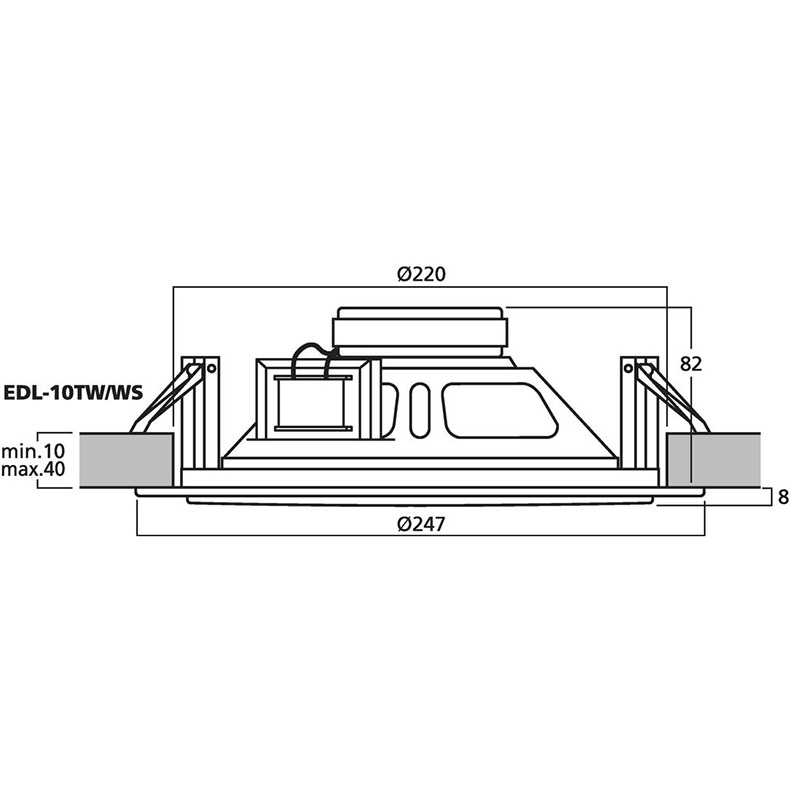

- Mounting cutout Ø 215 mm
- Mounting depth 90 mm
- Dimensions Ø 247 mm x 90 mm
- Outside diameter Ø 247 mm
- Width Ø 247 mm
- Depth 90 mm
- Admiss. ambient temp. 0-40 °C
- Weight 1.2 kg
- Packing unit 1
