LD Systems XS 400 pojačalo
LD Systems XS 400 pojačalo
- s an extremely compact, dependable
- Class D power amplifier with an output of 200W per channel at
- 4 ohms 400W in 8-ohm bridged mode, and a wide transmission range of 20Hz – 20kHz.
- Our Class D power amplifier technology makes it possible
- to pack high performance into a minimum of space without generating unnecessary loss energy.
- The XS400, at 1U and a weight of 3.4kg,
- is conceived for all professional applications in which ease of transport or space is important,
- whether mobile or in permanent installations.
- The XS400 has all protection circuits against short-circuiting,
- DC, overheating, and overloading and has a soft-start delay.
- The amplifier features XLR, RCA and jack input connectors,
- with Speakon-compatible sockets and screw terminals as outputs.
- On the rear panel, it is possible to select the mode of operation and gain and activate the limiter and ground-lift function. LEDs on the
RSD48.230,00
Cena sadrži PDV i gotovinski popust, te važi za gotovinsko, virmansko ili jednokratno kartično plaćanje u celini.
Na zalihama
SKU: LDXS400
Opis proizvoda
LD Systems XS 400 pojačalo

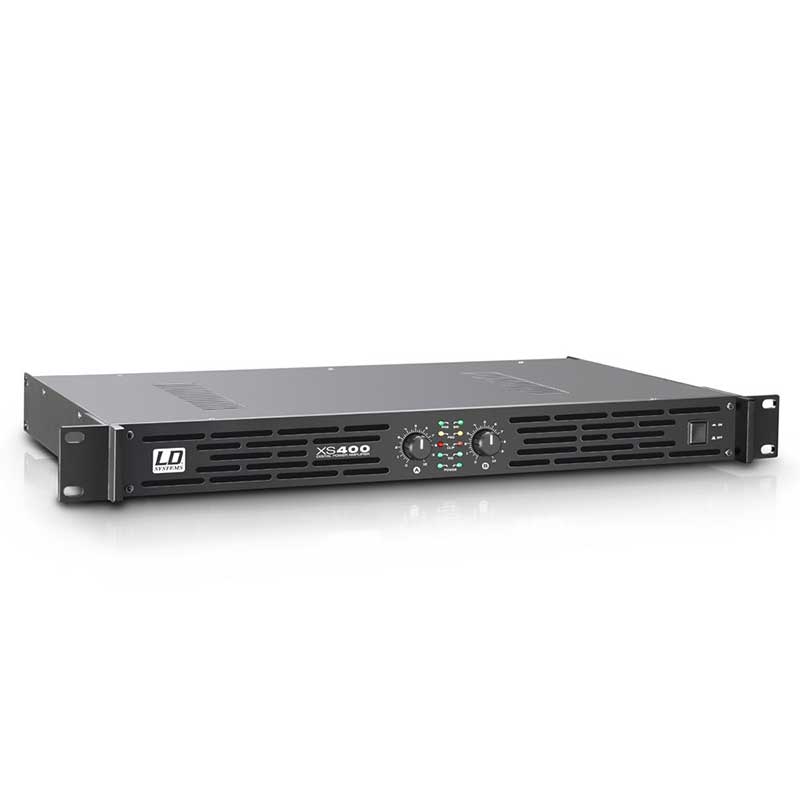

- The XS400 is an extremely compact,
- Class D power amplifier with an output of 200W per channel at
- 4 ohms 400W in 8-ohm bridged mode,
- and a wide transmission range of 20Hz – 20kHz.
- Our Class D power amplifier technology makes it possible
- to pack high performance
- into a minimum of space without generating
- unnecessary loss energy.
- is conceived for all professional applications
- in which ease of transport or space is important,
- whether mobile or in permanent installations.
- The has all protection circuits against short-circuiting,
- DC, overheating, and overloading and has a soft-start delay.
- The amplifier features XLR, RCA and jack input connectors,
- with Speakon-compatible sockets and screw terminals as outputs.

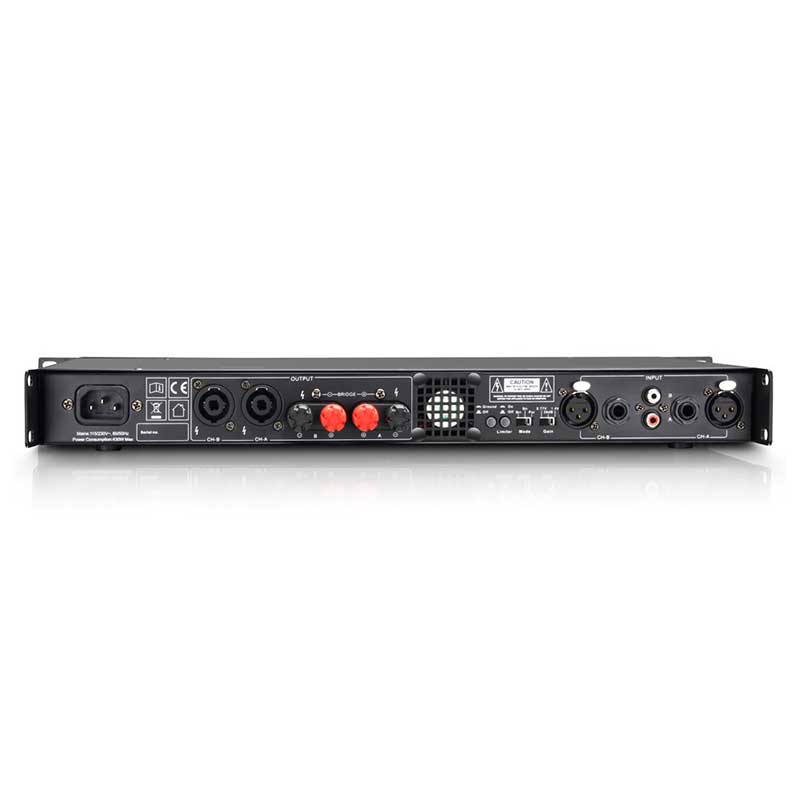

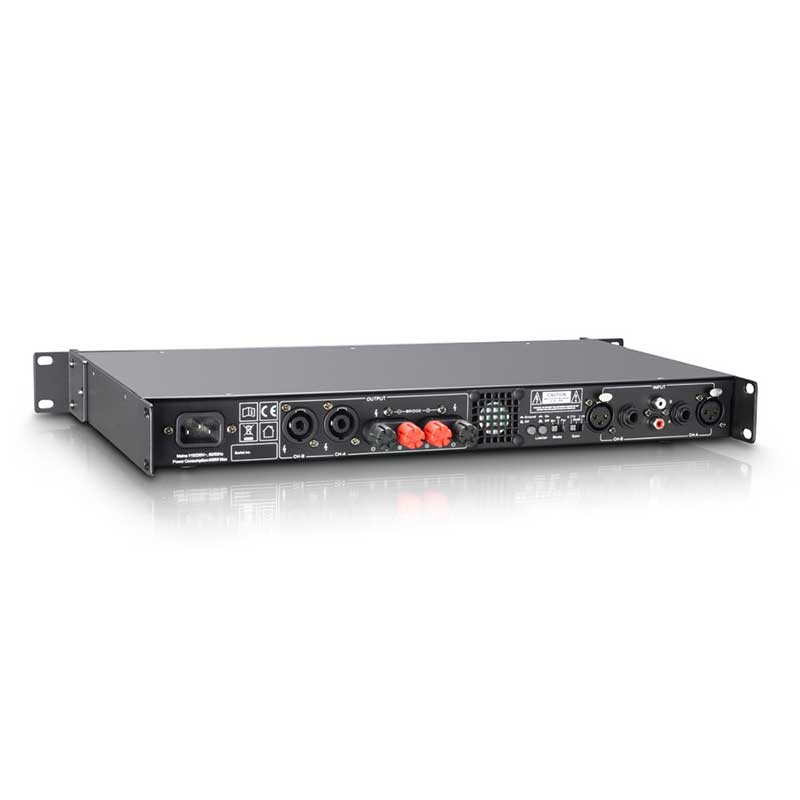

- On the rear panel, it is possible to select the mode
- of operation and gain and activate the limiter and ground-lift function.
Tehničke specifikacije proizvoda
- Product number: LDXS400
- Product type: Power Amplifiers
- Type: PA Power Amplifiers
- Rated ouput power (1kHz @ 4 Ohms): 2 x 200W
- Rated ouput power (1kHz @ 8 Ohms): 2 x 100W
- Rated ouput power (1kHz @ 8 Ohms, bridged): 400W
- Output circuitry: Class D
- Frequency response: 20 - 20000Hz
- THD: < 0.1 %
- Gain: 32 dB / 26 dB / 28 dBdB
- Input sensitivity: 0.68 V / 1.4 V / 1.2 V (not passed)V
- Protection circuits: thermal overload, soft start, short circuit, DC, over-current
- Controls: ground lift, volume, On / Off, mode, Gain, limiter
- Indicators: Signal, mode, clip, Protect (protection circuit engaged), Power
- Line inputs: 2
- Line input connectors: RCA, 6.3 mm jack
- Loudspeaker outputs: 2
- Speaker output connections: Speakon compatible, Terminal posts
- Cooling: low-noise fan
- Operating voltage: Switching power supply, 115 V AC / 230 V AC (switchable)
- Power consumption @ full load: 470 W
- Width: 482mm
- Height: 44mm
- Depth: 244mm
- Weight: 3,4kg
