LD Systems WIN 42 BPHH 2 B 5 bežični mikrofon

Pozvati za dostupnost i cenu
blank

Besplatna dostava
Dostava je besplatna za online narudžbine fizičkih lica u vrednosti preko 15.000,00 dinara. Svaka pošiljka može biti osigurana dodatno/pošiljke do 70 000 dinara su osigurane.blank

Cenovnik dostave
Klikom na link posetićete stranicu sa ažuriranim cenovnikom kuriskih službi.blank

Načini plaćanja
Naručivanje preko našeg sajta u proseku traje manje od jednog minuta i odvija se kroz nekoliko jednostavnih koraka.

Opis proizvoda

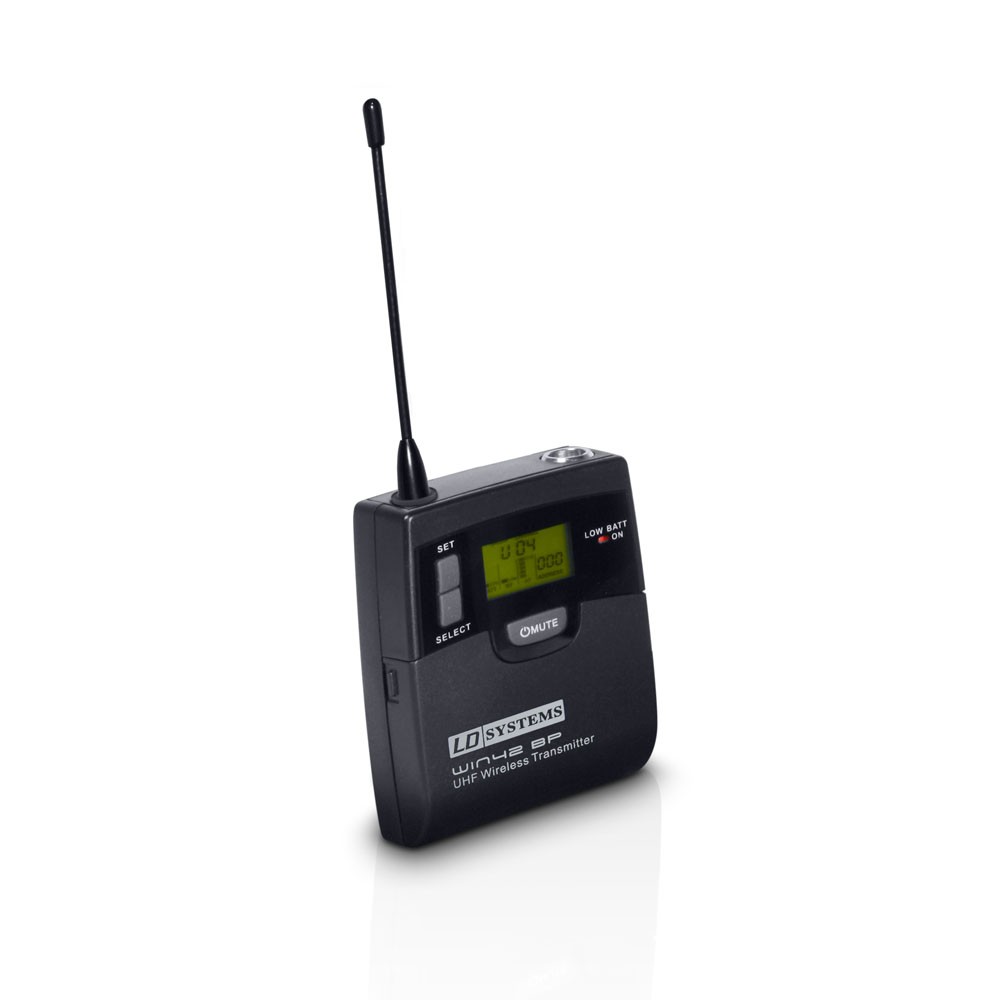

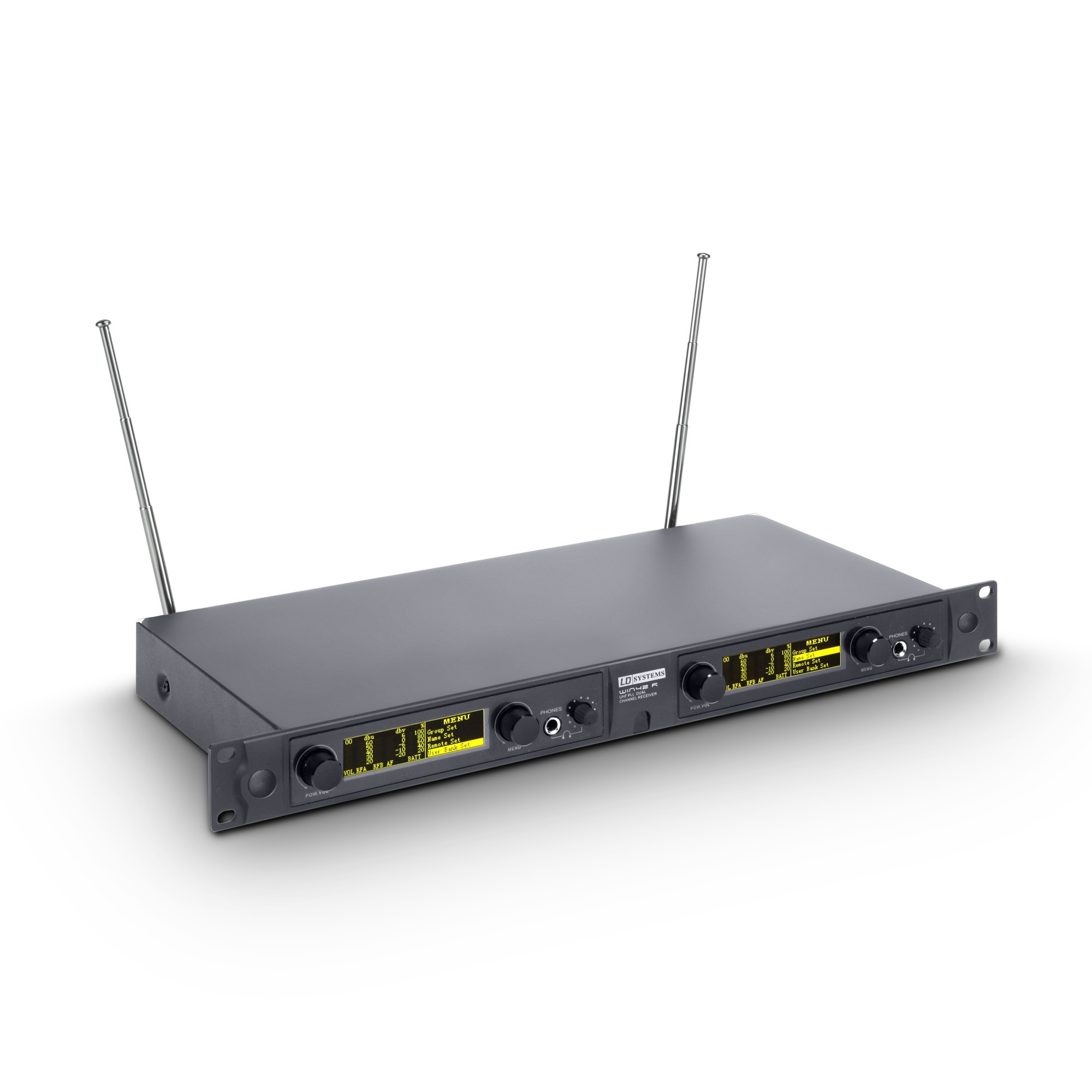

Due to the changed situation in the area of general frequency allocations for the operation of wireless systems starting in 2015, LD Systems decided to develop the even more flexible and highly professional WIN 42 wireless system. With its outstanding audio quality, the LD Systems WIN 42 UHF system offers numerous potential applications for live performances and permanent installations. The working UHF frequency range is 516 MHz to 558 MHz. Both the handheld microphone and belt pack transmitter versions provide any vocalist, speaker or instrumentalist optimal transmission of his or her performance with the greatest possible freedom of movement. By means of a threaded connection, the microphone head of the handheld transmitter can be swapped quickly and easily (dynamic and condenser capsules). The system has more than 1680 freely selectable frequencies and thus makes it possible to operate up to 20 systems simultaneously. The "channel scan" function assists you in finding and tuning to a transmission frequency without interference. This frequency is then transmitted simply and conveniently from receiver to transmitter via an infrared link. The transmitting power is adjustable in 3 stages (10, 30, 50 mW) directly on the microphone, permitting adaptation to any environment. The half-rack True Diversity receiver houses numerous system features, for example, a transmitter battery status indicator on the receiver display, an indicator for the (transmitter) "Mute On/Off" function on the receiver display, 4 EQ presets that are switchable at the receiver, and much more. A highly professional system embodying the outstanding value-for-money that is so typical for LD Systems.

Tehničke specifikacije proizvoda

  • Product number: LDWIN42BPHH2B5
  • Product type: Wireless Microphone System Accessories, Wireless Microphone Systems
  • Colour: beige, Black
  • Type: Headsets, Receivers, 19" Rack Kits, Belt Packs
  • Material: Steel
  • Modulation Type: FM
  • Surface: Powder coated
  • Transmission frequency range: 516 - 558MHz
  • Channels: 2 x 1680, 1680
  • Directivity: Cardioid
  • Groups: 2 x 20 groups + 1 user group, 20 groups + 1 user group
  • Inputs: Mini-XLR (3-pin) with phantom power (for headset)
  • Antenna inputs: 2
  • Antenna connector: BNC
  • Nominal impedance: 1400Ohm(s)
  • Frequency response: 70 - 16.000Hz, 60 - 16.000Hz
  • Max. SPL: 125dB
  • Noise reduction: Squelch
  • Rated HF output power: Variable (10, 30, 50 mW)
  • Transmission optimization: address allocation
  • THD: < 1 %
  • Signal-to-noise ratio: > 100dB
  • Phantom power requierements: 5V

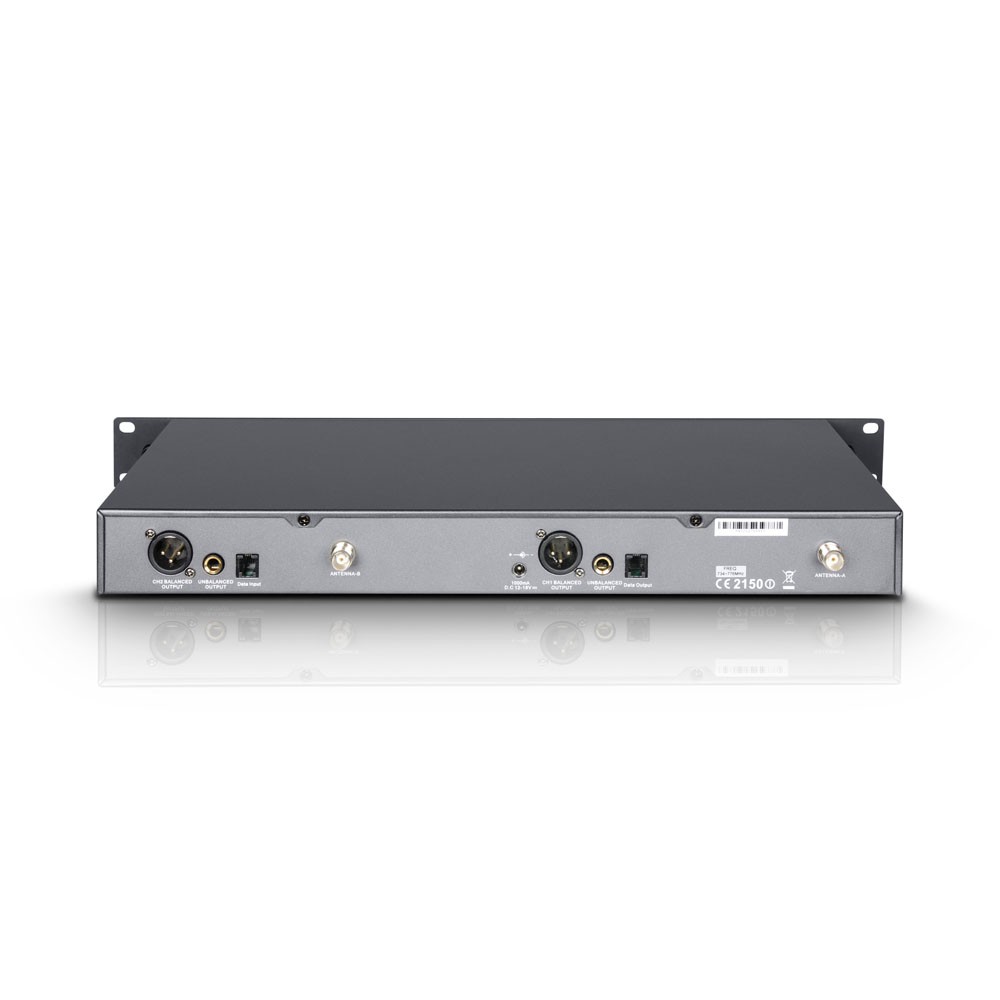

  • Audio output, balanced: 2 x XLR
  • Audio output, unbalanced: 2 x 6.3 mm TS
  • Microphone input: Mini-XLR (3-pin, female)
  • Operating time: >14 h (with alkaline batteries)
  • Audio mix output, unbalanced: 6.3 mm jack
  • Max. output level: + 10dBu
  • Headphones ouput: 2
  • Headphones outputs: 6.3 mm TRS
  • Controls: select, Set, 2 x menu, 2 x mains switch / volume, 2 x headphones level
  • Indicators: multifunction LC display, power/battery status low (LED), 2 x multifunction LC display
  • Operating voltage: 2 x AA battery, External Power Supply, 1,000 mA, 13.5 V DC
  • Width: 63mm, 480mm
  • Height: 44mm, 87mm
  • Depth: 25mm, 190mm
  • Weight: 0,2kg, 2,4kg, 0,1kg
  • Accessories (included): User's manual, 2 x antenna, 2 x TNC cable, Batteries, 2 x TNC adapter, Foam windscreen, Power supply
  • Other features: Battery status indicator, incl. batteries, channel search function, IR frequency synchronisation, Transmission power adjustable in 3 stages, Adjustable audio sensitivity
