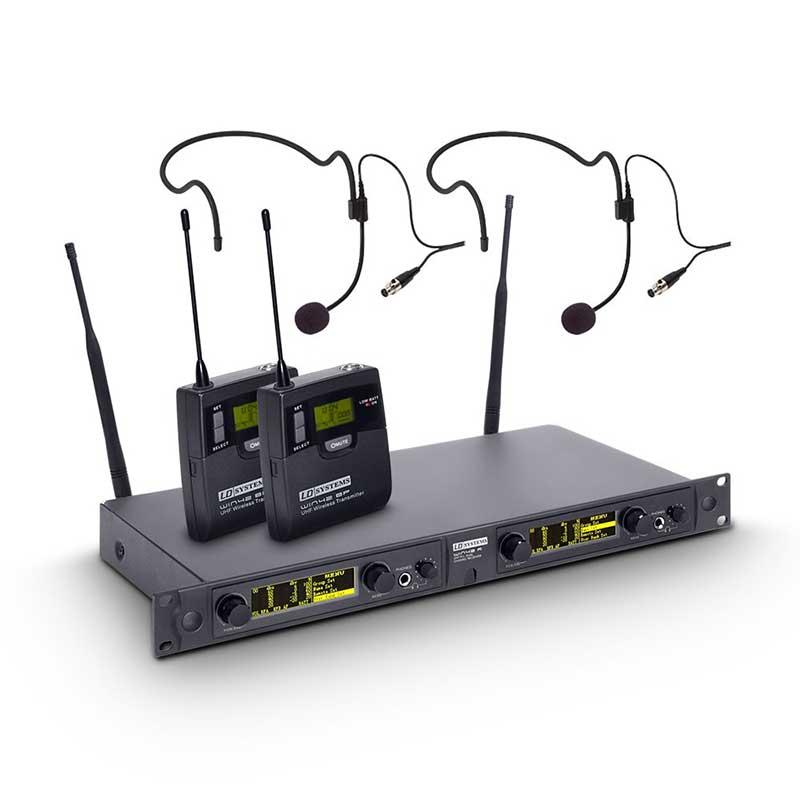

LD Systems WIN 42 BPH 2 bežični mikrofon

(cena je sa uračunatim PDVom)
Vreme isporuke: 7 do 10 dana

Besplatna dostava
Besplatna dostava je za sve artikle koji su plaćeni preko 15.000 dinara. Svaka pošiljka može biti osigurana dodatno/pošiljke do 70 000 dinara su osigurane.

Cenovnik dostave
Klikom na link posetićete stranicu sa ažuriranim cenovnikom kuriskih službi.

Načini plaćanja
Naručivanje preko našeg sajta u proseku traje manje od jednog minuta i odvija se kroz nekoliko jednostavnih koraka.

Opis proizvoda

Due to the changed situation in the area of general frequency allocations for the operation of wireless systems starting in 2015, LD Systems decided to develop the even more flexible and highly professional WIN 42 wireless system. With its outstanding audio quality, the LD Systems WIN 42 UHF system offers numerous potential applications for live performances and permanent installations. The working UHF frequency range is 734 MHz to 776 MHz. Both the handheld microphone and belt pack transmitter versions provide any vocalist, speaker or instrumentalist optimal transmission of his or her performance with the greatest possible freedom of movement. By means of a threaded connection, the microphone head of the handheld transmitter can be swapped quickly and easily (dynamic and condenser capsules). The system has more than 1680 freely selectable frequencies and thus makes it possible to operate up to 20 systems simultaneously. The "channel scan" function assists you in finding and tuning to a transmission frequency without interference. This frequency is then transmitted simply and conveniently from receiver to transmitter via an infrared link. The transmitting power is adjustable in 3 stages (10, 30, 50 mW) directly on the microphone, permitting adaptation to any environment. The half-rack True Diversity receiver houses numerous system features, for example, a transmitter battery status indicator on the receiver display, an indicator for the (transmitter) "Mute On/Off" function on the receiver display, 4 EQ presets that are switchable at the receiver, and much more. A highly professional system embodying the outstanding value-for-money that is so typical for LD Systems.


Tehničke specifikacije proizvoda

  • Product number: LDWIN42BPH2
  • Product type: Wireless Microphone Systems, Wireless Microphone System Accessories
  • Type: Headsets, 19" Rack Kits, Belt Packs, Receivers
  • Material: Steel
  • Colour: Black
  • Modulation Type: FM
  • Surface: Powder coated
  • Transmission frequency range: 734.000 - 776,000MHz, 734 - 776MHz
  • Directivity: Cardioid
  • Channels: 1680, 2 x 1680
  • Inputs: Mini-XLR (3-pin) with phantom power (for headset)
  • Groups: 20 groups + 1 user group, 2 x 20 groups + 1 user group
  • Antenna inputs: 2
  • Nominal impedance: 680Ohm(s)
  • Antenna connector: TNC
  • Frequency response: 60 - 16.000Hz, 20 - 20.000Hz
  • Rated HF output power: Variable (10, 30, 50 mW)
  • Noise reduction: Squelch
  • Transmission optimization: address allocation
  • THD: < 1 %
  • Signal-to-noise ratio: > 100dB
  • Audio output, balanced: 2 x XLR
  • Phantom power requierements: 5V
  • Audio output, unbalanced: 2 x 6.3 mm TS
  • Microphone input: Mini-XLR (3-pin, female)
  • Operating time: >14 h (with alkaline batteries)
  • Audio mix output, unbalanced: 6.3 mm jack
  • Max. output level: + 10dBu
  • Headphones ouput: 2
  • Headphones outputs: 6.3 mm TRS
  • Controls: select, Set, 2 x headphones level, 2 x mains switch / volume, 2 x menu, power (on/off/mute)
  • Indicators: multifunction LC display, 2 x multifunction LC display, power/battery status low (LED)
  • Operating voltage: External Power Supply, 2 x AA battery, 1,000 mA, 13.5 V DC
  • Width: 480mm, 63mm
  • Height: 44mm, 87mm
  • Depth: 190mm, 25mm
  • Weight: 2,4kg, 0,1kg, 0,06kg, 0,2kg
  • Accessories (included): Foam windscreen, User's manual, 2 x TNC cable, Batteries, 2 x TNC adapter, Power supply, 2 x antenna
  • Other features: Adjustable audio sensitivity, channel search function, Battery status indicator, Transmission power adjustable in 3 stages, incl. batteries, IR frequency synchronisation
