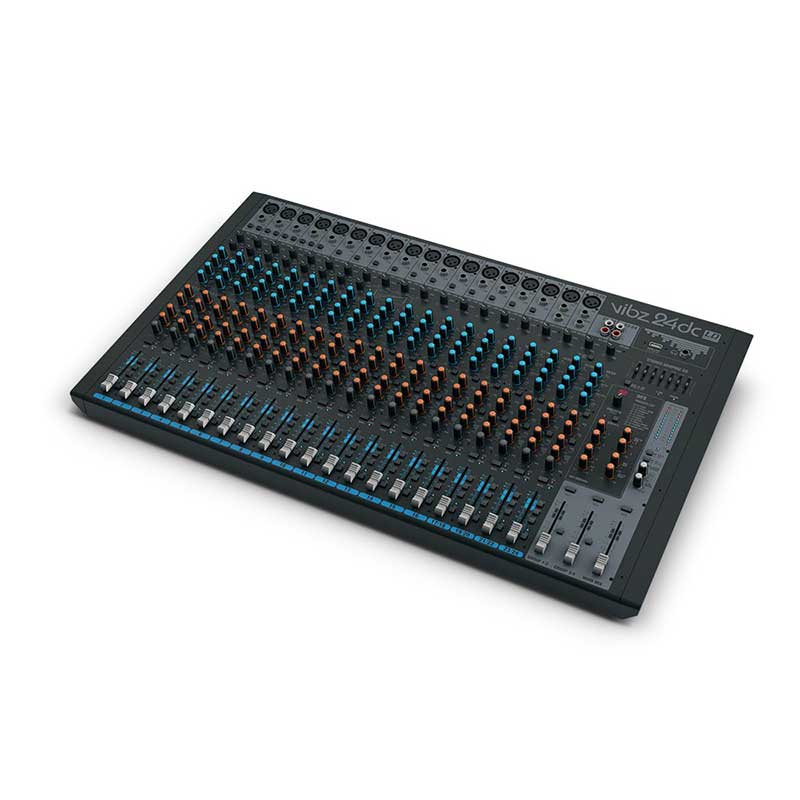

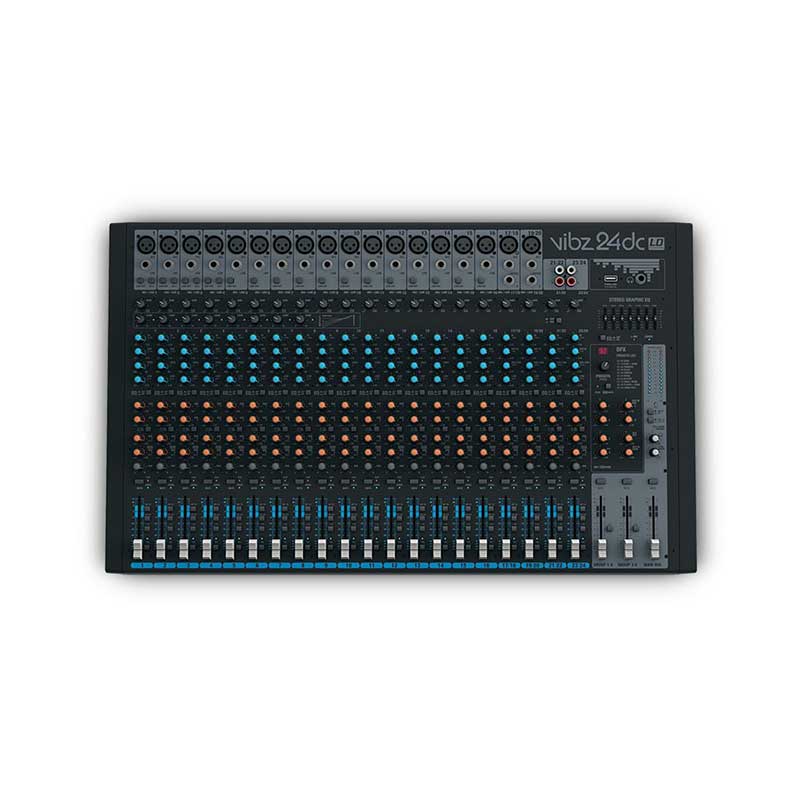

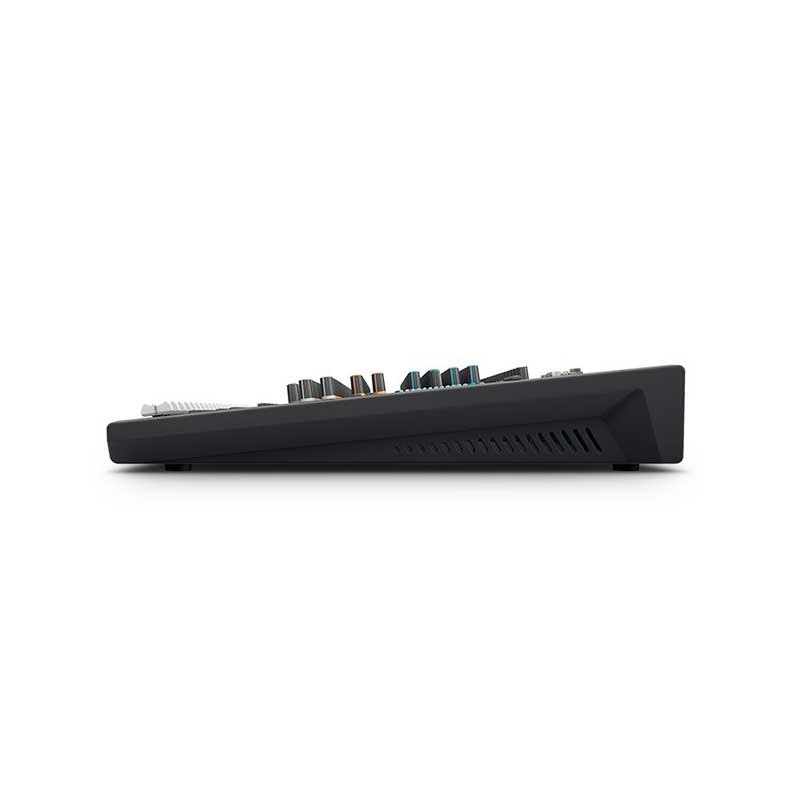

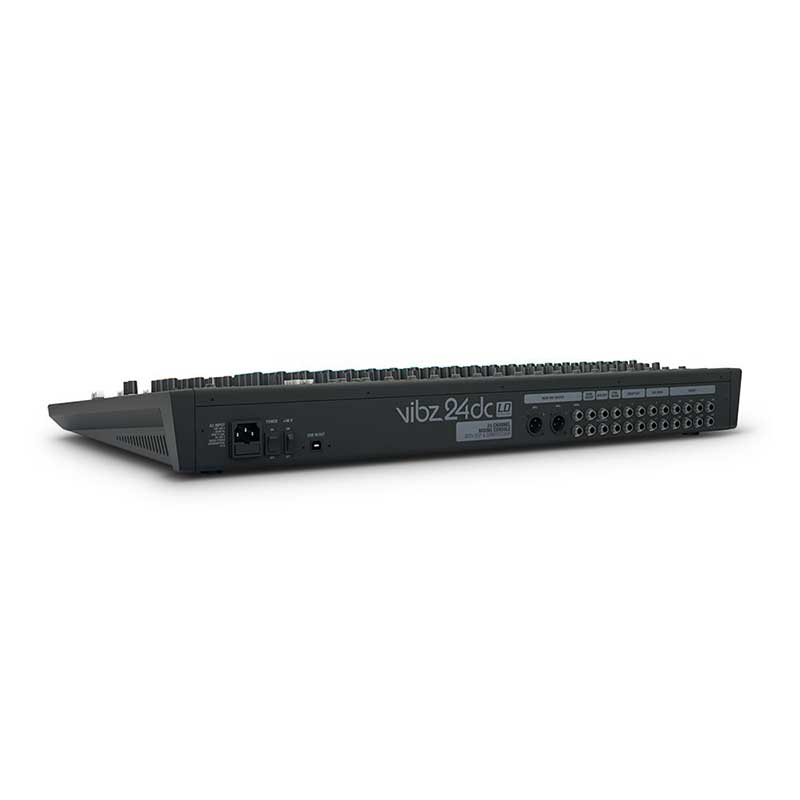

LD Systems VIBZ 24 DC mikseta

769,00
GARANCIJA DVE GODINE !!!

Besplatna dostava
Besplatna dostava je za sve artikle koji su plaćeni preko 15.000 dinara. Svaka pošiljka može biti osigurana dodatno/pošiljke do 70 000 dinara su osigurane.

Cenovnik dostave
Klikom na link posetićete stranicu sa ažuriranim cenovnikom kuriskih službi.

Načini plaćanja
Naručivanje preko našeg sajta u proseku traje manje od jednog minuta i odvija se kroz nekoliko jednostavnih koraka.

Opis proizvoda

LD Systems VIBZ 24 DC je pasivna mikseta namenjena upotrebi na koncertima ili u studiju. Poseduje 16 mono balansiranih mikrofonskih i linijskih ulaza sa tropojasnim ekvilajzerom u parametričkom modu za srednji opseg, 4 stereo kanala sa četvoropojasnim ekvilajzerom, 4 sub grupe, banku od 100 24-bit efekata. Svi kanali imaju visokokvalitetne predpojačivače sa Gain kontrolom, 4 AUX-a, Mute i PF funkcijom sa signal i clip LED indikacijom. Send poseduje opciju izbora za slanje signala za pre i posle glavnog reglera. Mikseta ima ugraðen kompresor po svakom kanalu i insert tačke za svaki kanal ponaosob. Master sekcija nudi mogućnost izbora balansiranog ili nebalansiranog izlaznog signala, individualne izlaze za grupe sa preciznim merenjem, control room izlaznu sekciju, izlaz za slušalice kao i master sedmopojasni grafički ekvilajzer.

Tehničke specifikacije proizvoda

  • Product type: Mixers
  • Type: Home-Recording , Live
  • Channels: 24
  • MICROPHONE
  • Mono Mic and Line Input Channels: 16
  • Mono Mic input connectors: 6.3 mm TRS , XLR
  • Mono Mic Input Type: electronically balanced
  • Mono Mic Input Frequency Range: 10 - 45000 Hz
  • Amplification Range mono Mic Input: - 50 dB
  • Mono Mic Input Input: THD-N 0.0058%
  • Mono Mic Input Impedance: 4000 Ohm(s)
  • Mono Mic Input S/N Ratio: 113 dB
  • Mono Line Input Type: electronically balanced
  • Mono Line Input Frequency Range: 10 - 45000 Hz
  • Amplification Range: mono Line Input - 50 dB
  • Mono Line Input Input: THD-N 0.0045 %
  • Mono Line Input Impedance: 21000 Ohm(s)
  • Mono Line Input S/N Ratio: 116 dB
  • Mono Channel Equalizer: High +/-15 dB @ 12.000 Hz
  • Mono Channel Equalizer: Mid +/-15 dB @ 2.500 Hz
  • Mono Channel Equalizer: Low +/-15 dB @ 80 Hz
  • Controls Mono Mic and Line Input Channels: 3-band EQ (High, Mid, Low), AUX Send 1-2 pre (AUX2 pre/post switchable), AUX Send 3-4 (post), Bal, Channel Fader, Fader Routing switch (Group 1/2, Group 3/4, Main L+R) , Gain, LINE/USB -switch (Channel 21 - 24), PFL / Solo Switch
  • Phantom power: 48 V DC switchable
  • Mono Inserts: 8
  • Mono Inserts Connectors: 6.3mm jack
  • Stereo Channels:
  • Stereo Line Input Channels: 4
  • Stereo Line Input Connectors: 6.3 mm TRS
  • Stereo Line Input Type: electronically balanced , unbalanced
  • Stereo Line Input Frequency Range: 10 - 45000 Hz
  • Amplification Range: stereo Line Input - 50 dB
  • Stereo Line Input: Input THD-N 0.0045 %
  • Stereo Line Input Impedance: 37000 Ohm(s)
  • Stereo Line Input S/N Ratio: 116 dB
  • Stereo channel equalizer treble: +/-15 dB @ 12.000 Hz
  • Stereo channel equalizer hi-mids: +/-15 dB @ 2.500 Hz
  • Stereo channel equalizer low-mids: +/-15 dB @ 2.500 Hz
  • Stereo channel equalizer bass: +/-15 dB @ 80 Hz
  • Controls Stereo Line Input Channels: 7-band graphic EQ, AUX/DFX Send 1 - 4, DFX Mute, DFX Presets, DFX to Aux, DFX to Main, EQ on/off, GROUP to Main -switch, Main Mix Fader, mains switch, Phantom Power, Phones/CTRL Fader, TK In To Main/To CTRL, USB Type B
  • Main Section:
  • AUX / Effects Send Channels: 4
  • AUX / Effects Send Connectors: 6.3 mm TS
  • Stereo AUX Return Channels: 1
  • Stereo AUX Return Connectors: 6.3 mm TS
  • Group Out: 4
  • Group Out Connectors: 4 x 6,3mm TRS
  • Max. Unbalanced Stereo Main Out Level: 22 dBu
  • Stereo Control Room Out: 1
  • Stereo Control Room Out Connectors: 2x 6.3 mm TRS
  • Headphones ouput: 1
  • Headphones outputs: 6.3 mm TRS
  • Digital Effects Processor: yes
  • Number of Presets: 100
  • DMX output: 1
  • DMX output connectors: 2x 6.3 mm TRS
  • Footswitch Connector DFX Mute: 6.3 mm TS
  • Main section controls: 7-band graphic EQ, AUX/DFX Send 1 - 4, DFX Mute, DFX Presets, DFX to Aux, DFX to Main, EQ on/off, GROUP to Main -switch, Main Mix Fader, mains switch, Phantom Power, Phones/CTRL Fader, TK In To Main/To CTRL
  • Indicators: DFX Peak, DFX to Main, PFL indicator, Phantom Power, Power, signal
  • Operating voltage: 100 V AC - 240 V AC, 50 - 60 Hz
  • Width: 712 mm
  • Height: 80 mm
  • Depth: 425 mm
  • Weight: 9,442 kg
