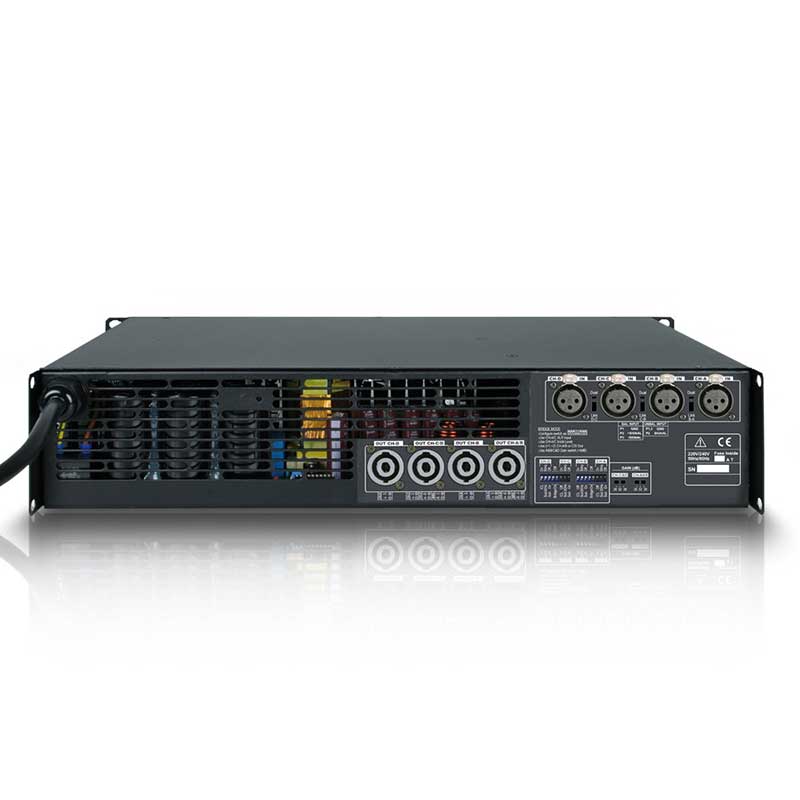

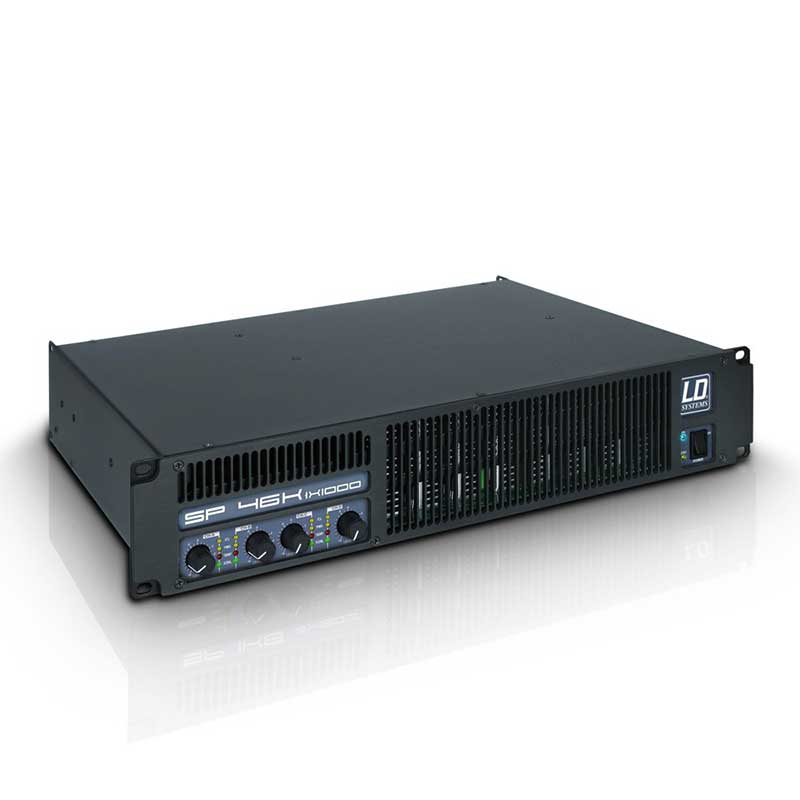

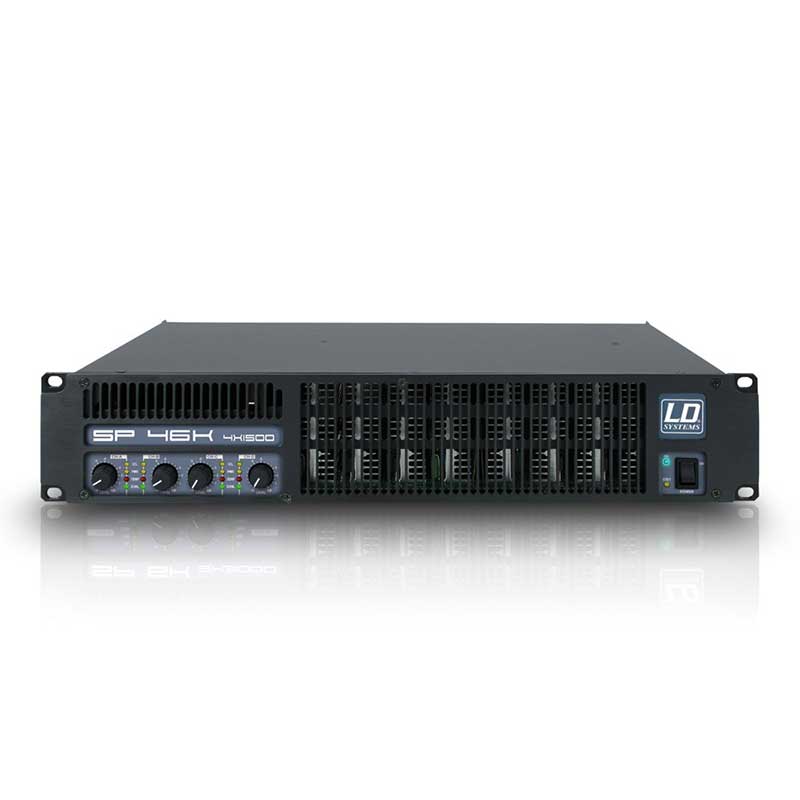

LD Systems SP 46K pojačalo

Vreme isporuke: 7 do 10 dana
blank

Besplatna dostava
Dostava je besplatna za online narudžbine fizičkih lica u vrednosti preko 15.000,00 dinara. Svaka pošiljka može biti osigurana dodatno/pošiljke do 70 000 dinara su osigurane.blank

Cenovnik dostave
Klikom na link posetićete stranicu sa ažuriranim cenovnikom kuriskih službi.blank

Načini plaćanja
Naručivanje preko našeg sajta u proseku traje manje od jednog minuta i odvija se kroz nekoliko jednostavnih koraka.

Opis proizvoda

The LDSP46K is a no-compromise 4-channel power amplifier providing professional performance and versatility in a compact switch mode power supply Class H design. With a massive output of 4x 1.440W into 2Ohms and 2x 2.880 in 4Ohms stereo bridge mode it is an extremely efficient solution for touring and installation sound reinforcement weighing in at a mere 8.6kg. Consistent operation is ensured by the heavy duty construction with high quality components and comprehensive protection circuitry including soft start with turn-on muting, PMS™ power management, SSP™ (Safe operation Sentry Protection) and ICL™ Intelligent Clip Limiting to maintain signal integrity. Protection circuits against DC, thermal and power supply overload are implemented. A switchable subsonic filter and a 3-position gain switch offer variable amplifier adjustment. The LDSP46K features a full 20Hz - 20kHz bandwidth with low THD and crosstalk, a damping factor higher than 500, excellent S/N ratio and 3 selectable gain/sensitivity levels.



Tehničke specifikacije proizvoda

  • Product number: LDSP46K
  • Product type: Power Amplifiers
  • Type: PA Power Amplifiers
  • Rated ouput power (1kHz @ 2 Ohms): 4 x 1440W
  • Rated ouput power (1kHz @ 4 Ohms): 4 x 1000W
  • Rated ouput power (1kHz @ 8 Ohms): 4 x 620W
  • Rated ouput power (1kHz @ 4 Ohms, bridged): 2 x 2880W
  • Rated ouput power (1kHz @ 8 Ohms, bridged): 2 x 2000W
  • Output circuitry: Class H
  • Frequency response: 20 - 20000Hz
  • THD: < 0.05 %
  • Signal-to-noise ratio: 116dB
  • Damping factor: > 500
  • Crosstalk: >75dB
  • Gain: 26 / 32 / 38dB
  • Input sensitivity: 3.5 / 1.8 / 0.9V
  • Protection circuits: thermal protection, Open or mismatched loads, power supply overload, PMS, DC, soft start, mute when turning on, ICL (Intelligent Clip Limiting), SSP, short circuit
  • Controls: mains switch (on/off), bridge/stereo mode selector, dual/link switch, volume, gain
  • Indicators: Signal, temperature, PMS, ICL (Intelligent Clip Limiting)
  • Loudspeaker outputs: 4
  • Speaker output connections: Speakon
  • Cooling: 2 fans, continuous speed
  • Operating voltage: Switching power supply, 220 V AC - 240 V AC, 50-60 Hz
  • Power consumption @ full load: 19
  • Width: 483mm
  • Height: 89mm
  • Depth: 310mm
  • Weight: 8,6kg
