LD Systems SAT 122 G2 W 12″ passive Installation Speaker white

blank
blank

Besplatna dostava
Besplatna dostava je za sve artikle koji su plaćeni preko 15.000 dinara. Svaka pošiljka može biti osigurana dodatno/pošiljke do 70 000 dinara su osigurane.blank

Cenovnik dostave
Klikom na link posetićete stranicu sa ažuriranim cenovnikom kuriskih službi.blank

Načini plaćanja
Naručivanje preko našeg sajta u proseku traje manje od jednog minuta i odvija se kroz nekoliko jednostavnih koraka.

Opis proizvoda

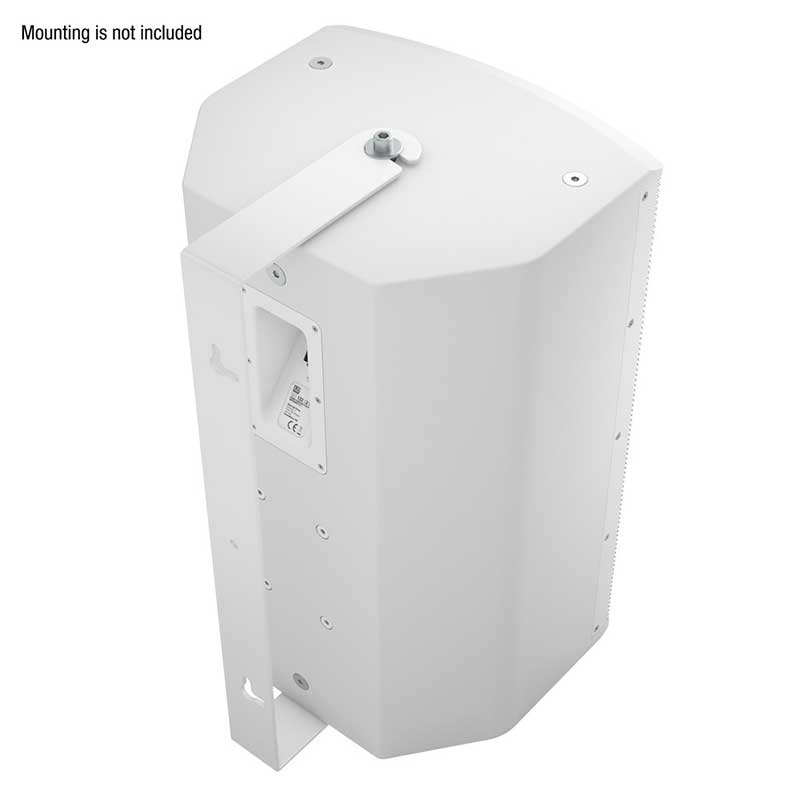

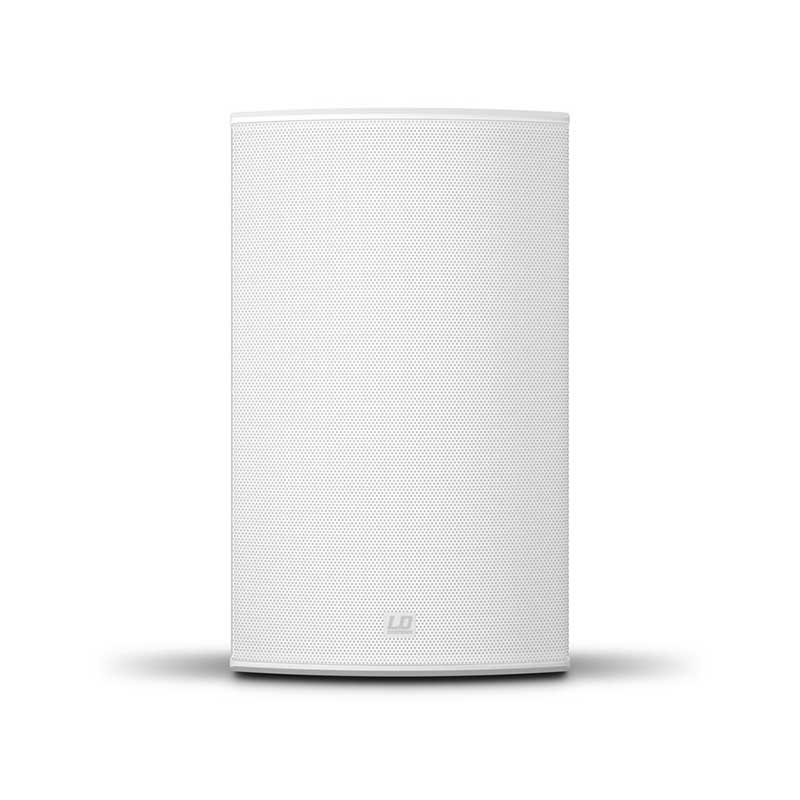

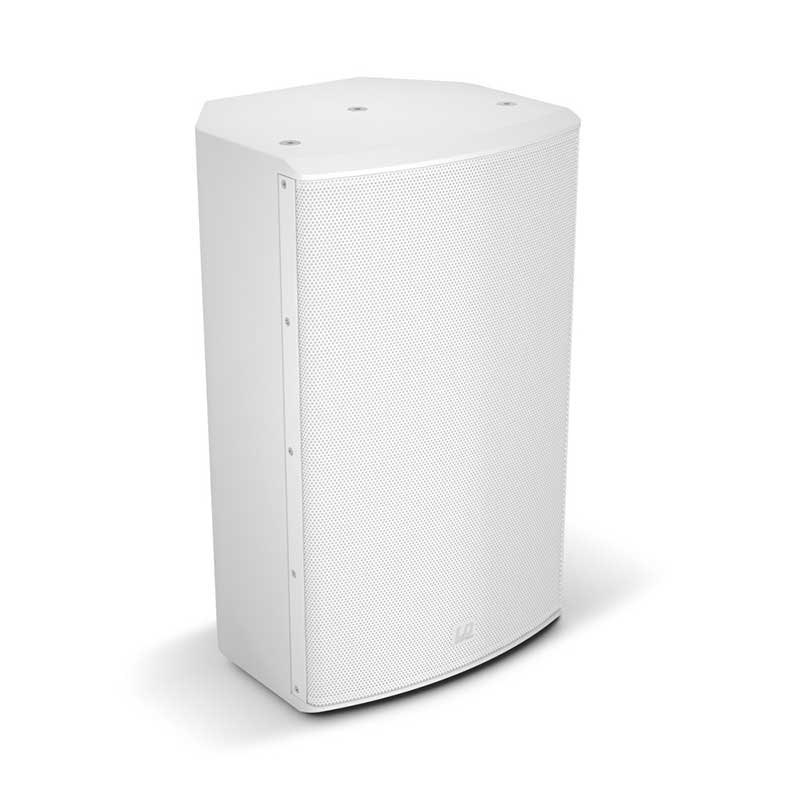

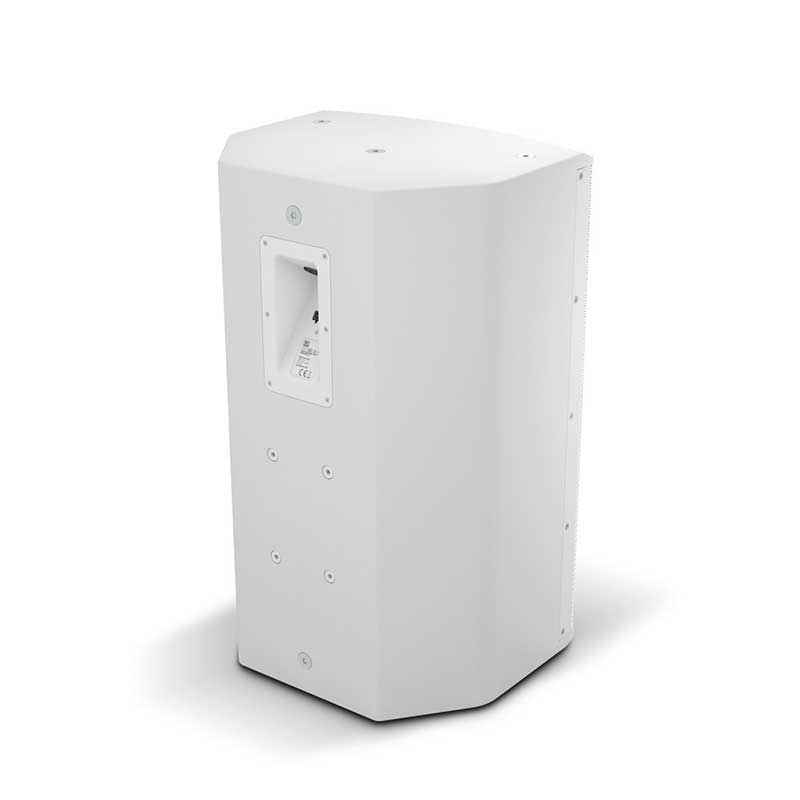

With its streamlined, elegant design, the LD Systems SAT 122 G2 is excellently suited for permanent installation and discreet integration into virtually any setting. It features a 12" custom woofer and a 1" compression driver from Celestion, connected to a rotating CD horn with 80° x 60° dispersion. This makes the passive 2-way speaker ideal for both vertical and horizontal use. The SAT 122 G2 achieves a maximum sound pressure level of 121 dB over a frequency response curve of 60 Hz to 19 kHz with a permanent load capacity of 250 watts. The reflex casing made of 15 mm MDF has four M8 mounting holes. The inputs are a speakON-compatible socket and a terminal block, while an additional terminal block serves as an output for convenient parallel connection. Special wall holders are available as an accessory to facilitate wall mounting. The SAT 122 G2 is available in black (Art. No. LDSAT122G2) or white textured finish (Art. No. LDSAT122G2W).



Tehničke specifikacije proizvoda

  • Product number: LDSAT122G2W
  • Type: Wall-mounted Loudspeaker
  • Low/mid driver dimensions: 12"
  • Woofer size: 304.8mm
  • Woofer magnet: Ferrite
  • Woofer brand: Custom-made
  • Woofer voice coil (mm): 63.5mm
  • Horn: CD horn
  • HF driver dimensions: 1"
  • HF driver brand: Celestion
  • HF Driver Voice Coil: 25.4mm
  • Dispersion (H x V): 80 x 60°
  • Load rating (RMS): 250W
  • Frequency response: 60 - 19000Hz
  • SPL (1W/1m): 97dB
  • Max. SPL: 121dB
  • Impedance: 8Ohm(s)
  • Protection circuits: HF Driver
  • Loudspeaker inputs: 2
  • Speaker input connections: terminal block, Speakon compatible
  • Loudspeaker outputs: 1
  • Speaker output connections: terminal block
  • Cabinet material: 15 mm MDF
  • Cabinet surface: texture paint
  • Cabinet construction: vented
  • Width: 350mm
  • Height: 580mm
  • Depth: 310mm
