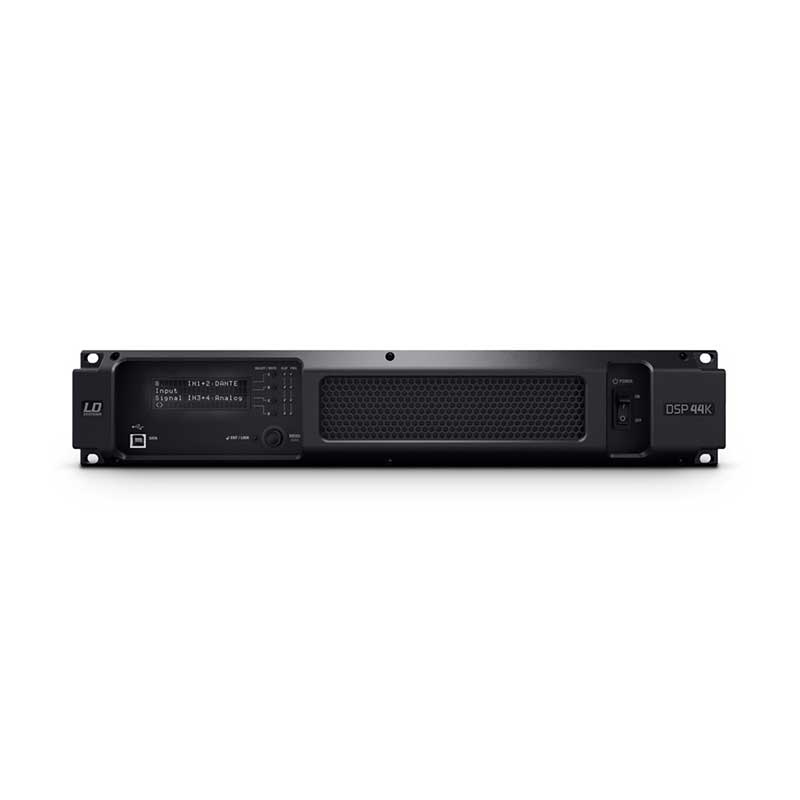

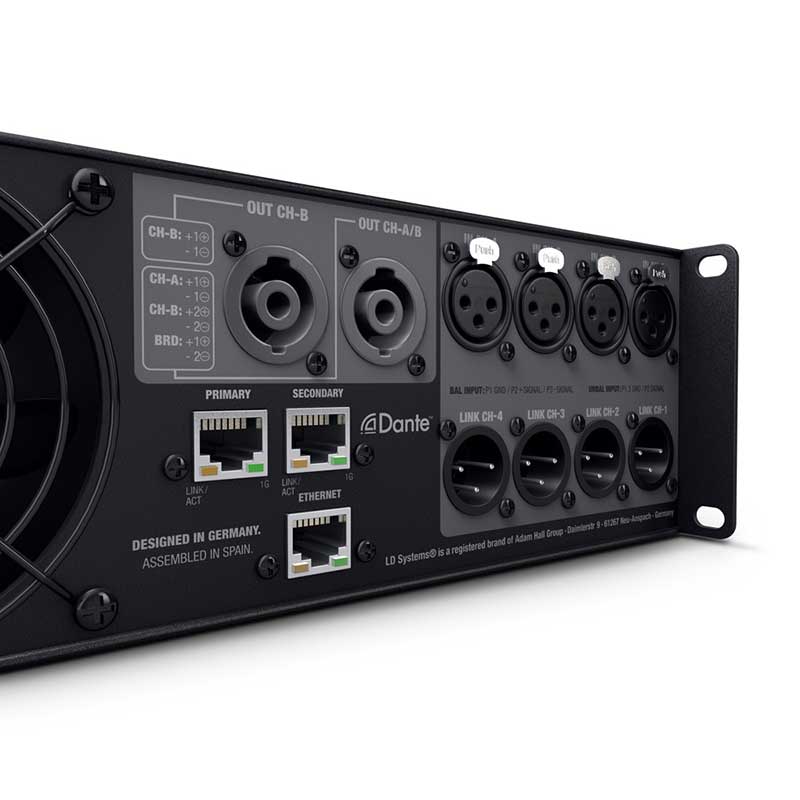

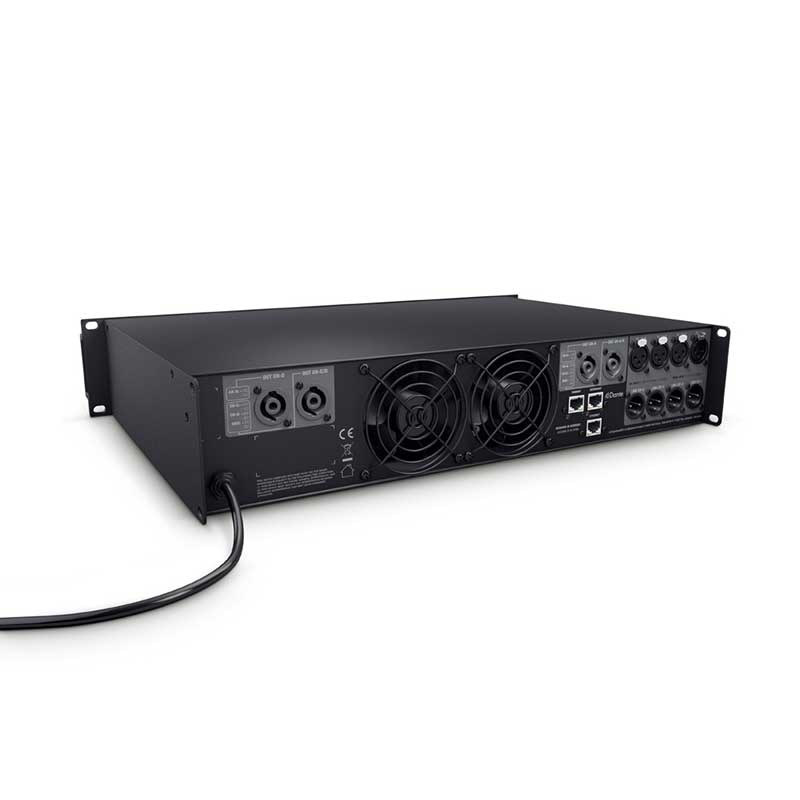

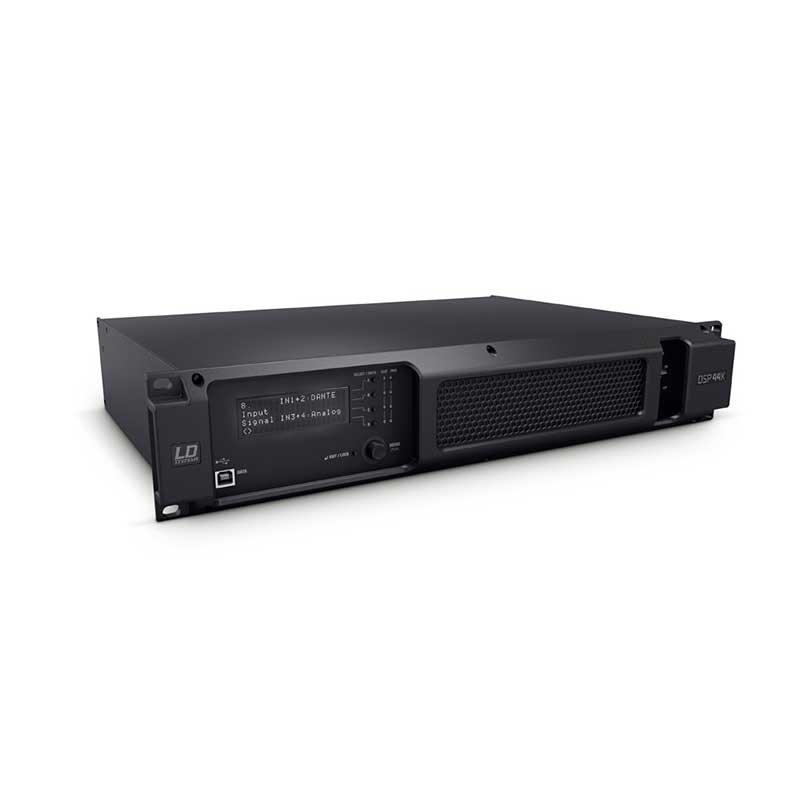

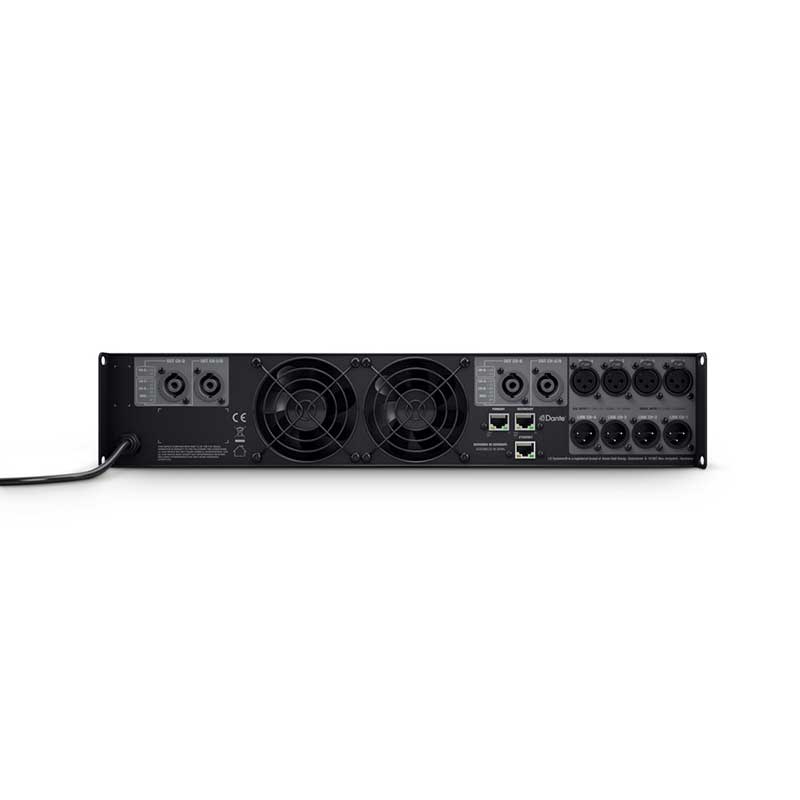

LD Systems DSP 44 K pojačalo

RSD310.320,00
(cena je sa uračunatim PDVom)
Vreme isporuke: 7 do 10 dana

Besplatna dostava
Besplatna dostava je za sve artikle koji su plaćeni preko 15.000 dinara. Svaka pošiljka može biti osigurana dodatno/pošiljke do 70 000 dinara su osigurane.

Cenovnik dostave
Klikom na link posetićete stranicu sa ažuriranim cenovnikom kuriskih službi.

Načini plaćanja
Naručivanje preko našeg sajta u proseku traje manje od jednog minuta i odvija se kroz nekoliko jednostavnih koraka.

Opis proizvoda

The LD Systems® DSP 44 K is a professional network-ready 4-channel power amplifier for demanding large-scale sound reinforcement. It includes extensive DSP control and Audinate’s Dante™ networking technology, a self-configuring solution to distribute digital audio over Ethernet with extremely low latency. Designed for concert-quality performance, the DSP 44 K delivers a massive 1,200 watts per channel and 2 x 2,400 watts bridged. The high-efficiecy Class H topology and switch mode power supply with power factor correction (PFC) provide a wide dynamic range and excellent transient response. The DSP 44 K features comprehensive protection circuitry including power-up, DC, overcurrent, thermal and short circuit protection plus current and clip limiters to prevent SMPS overload and loudspeaker damage. Together with a pair of temperature controlled fans, they ensure exceptional reliability in the most demanding applications. The 24-bit DSP allows precise control with FIR and IIR filters, parametric EQ, crossover, delay, RMS and peak limiter functions. User configurable loudspeaker presets with password protection enable fast setup. The LD Systems® DSP 44 K sports a menu driven 4-line display and rotary encoder with push button switch for easy configuration. The Dante™ interface permits instant integration into networks using the Dante™ protocol, and the included software enables computer control and monitoring. The LD Systems® DSP 44 K is housed in a 2U all-steel chassis and weighs just 7 kg. It provides balanced Neutrik® XLR inputs, speakON® output connectors plus USB and Ethernet ports. For optimal speaker performance and safe operation the DSP 44 K comes with an LD Systems® loudspeaker preset library.

Tehničke specifikacije proizvoda

  • Product number: LDDSP44K
  • Product type: Power Amplifiers
  • Type: 4-channel
  • Rated ouput power (1kHz @ 2 Ohms): 4 x 1200W
  • Rated ouput power (1kHz @ 4 Ohms): 4 x 1200W
  • Rated ouput power (1kHz @ 8 Ohms): 4 x 675W
  • Rated ouput power (1kHz @ 4 Ohms, bridged): 2 x 2400W
  • High Z 70Vrms / 100Vpeak: 4 x 1200W
  • High Z 100Vrms / 140Vpeak: 2 x 2400W
  • Output circuitry: Class H
  • Frequency response: 10 - 22000Hz
  • THD: < 0.05 % @ 1 kHz
  • Signal-to-noise ratio: 104dB
  • Protection circuits: clip limiter, soft start, over-current, Multiband limiter, RMS speaker limiter, short circuit, DC protection, thermal protection
  • Controls: Direct access buttons, Exit / lock button, Rotary switch, On / off switch
  • Indicators: LC display
  • Line inputs: 4
  • Line input connectors: Neutrik XLR
  • Line outputs: 4
  • Line output connectors: Neutrik XLR
  • Loudspeaker outputs: 4
  • Speaker output connections: Speakon
  • Cooling: 2 fans, temperature controlled
  • Maximum Ambient Temperature: 0 - 40°°C
  • Operating voltage: 220 V AC - 240 V AC, 50-60 Hz, Switching power supply
  • Relative Humidity:: < 80% (non-condensing)
  • Power consumption @ full load: 1900 W
  • Width: 482mm
  • Height: 89mm
  • Depth: 320mm
  • Weight: 7,9kg
  • Features: Computer control software, Ethernet, Dante interface, 19" / 2 U, Active Power Factor Correction, DSP controlled, USB front port, LD Systems loudspeaker preset library
