JBL CONTROL 45C/T plafonski 100V zvučnik

RSD39.183,42
(cena je sa uračunatim PDVom)
Vreme isporuke: 5 do 7 dana!

Besplatna dostava
Besplatna dostava je za sve artikle koji su plaćeni preko 15.000 dinara. Svaka pošiljka može biti osigurana dodatno/pošiljke do 70 000 dinara su osigurane.

Cenovnik dostave
Klikom na link posetićete stranicu sa ažuriranim cenovnikom kuriskih službi.

Načini plaćanja
Naručivanje preko našeg sajta u proseku traje manje od jednog minuta i odvija se kroz nekoliko jednostavnih koraka.

Opis proizvoda

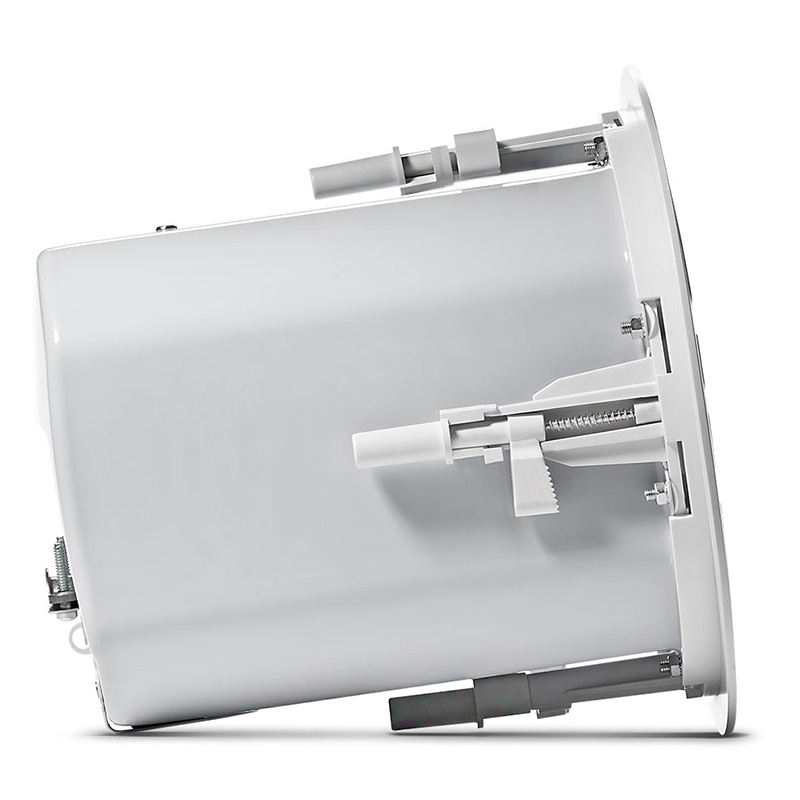

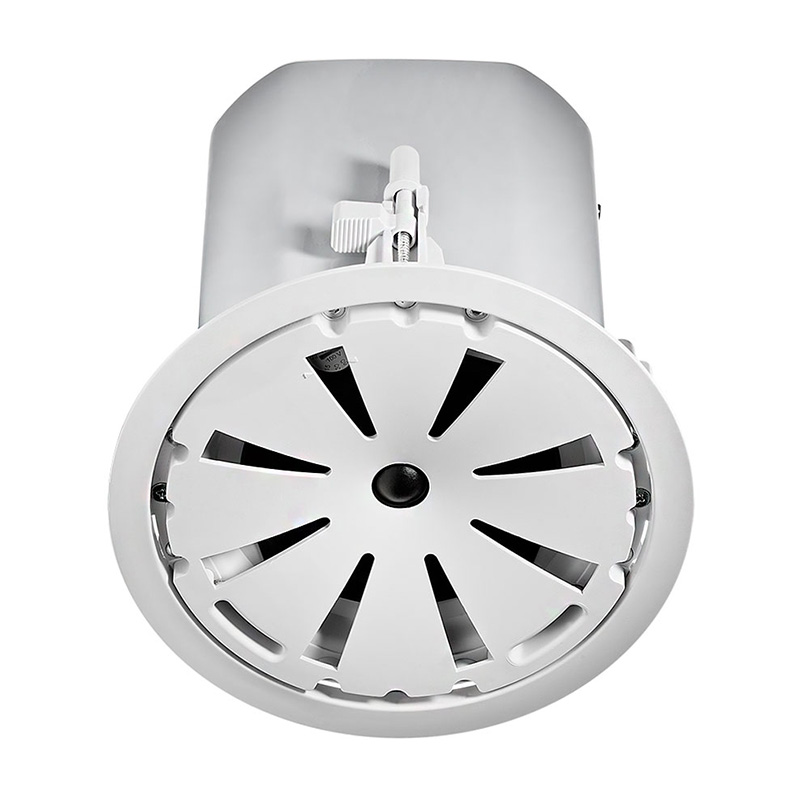

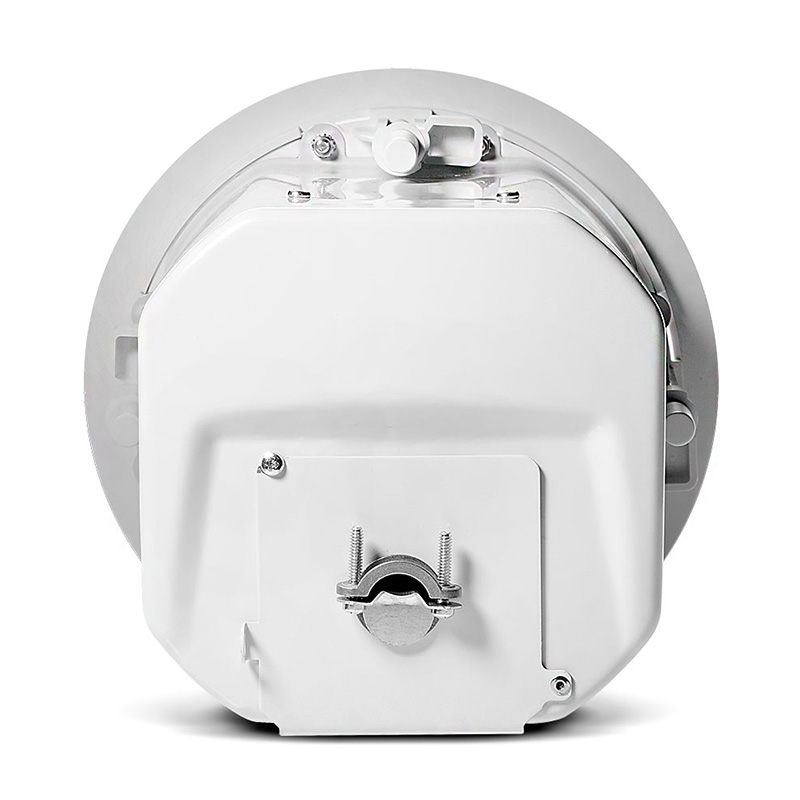

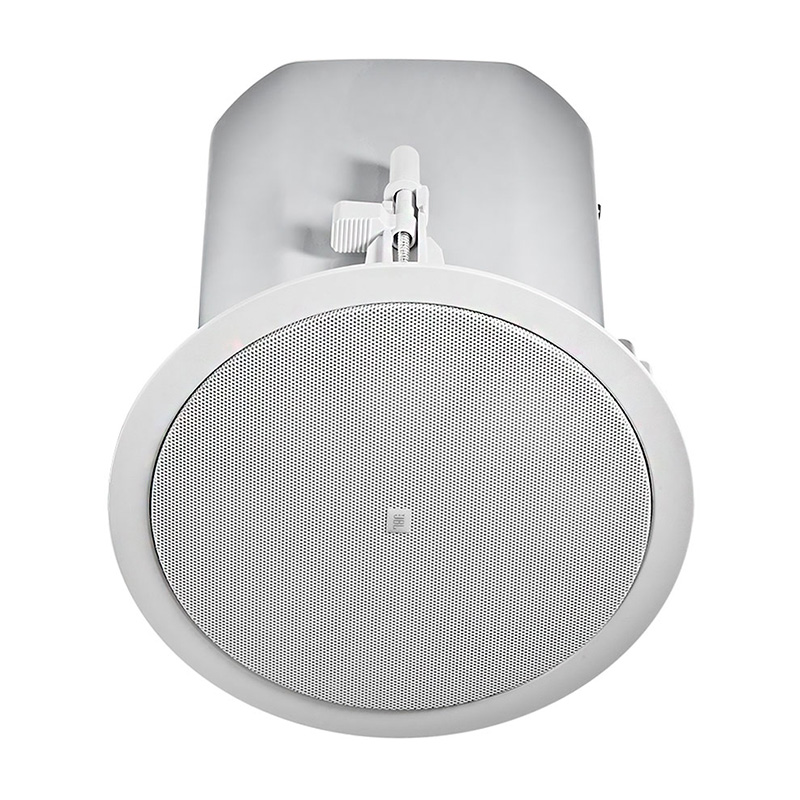

The Control 45C/T is a premium inceiling professional loudspeaker designed for applications that can benefit from extremely wide bandwidth and very consistent coverage from a ceiling speaker with a small footprint.

Tehničke specifikacije proizvoda

  • Frequency Range (-10 dB) 55 Hz – 20 kHz
  • Frequency Response (+/-3 dB) 80 Hz – 17 kHz
  • Power Capacity 150 Watts Continuous Program Power
  • 75 Watts Continuous Pink Noise
  • Nominal Sensitivity (2.83V/1m) 88 dB
  • Nominal Coverage Angle 120° conical coverage
  • Directivity Factor (Q) 5.6
  • Directivity Index (DI) 7.3 dB
  • Rated Maximum SPL 107 dB @ 1 m (3.3 ft) average, 113 dB peak
  • Rated Impedance 8 ohms (in bypass mode)
  • Transformer Taps 60W, 30W, 15W, (& 7.5W @ 70V)
  • Transformer Insertion Loss 0.76 dB @ 60W, 0.70 dB @ 30W, 0.61 dB @ 15W, 0.58 dB @ 7.5W
  • LF Driver 130 mm (5.25 in) polypropylene-coated paper cone with butyl rubber surround, 25 mm (1 in) copper voice coil, vented fiberglass resin voice coil former.
  • HF Driver 20 mm (0.75 in) soft-dome, neodymium magnet assembly, ferro-fluid cooling, aluminum voice coil former.
  • Input Connectors Two removable locking 2-pin connectors with screw-down terminals. Max wire 12 AWG (2.5 mm). Key: 1) + in, 2) - in, A)+ loop thru, B) - loop thru
  • Knockouts Two (top, and side)
  • Safety Agency Suitable for use in air handling spaces per UL1480 Speakers for Fire Alarm, Emergency and Commercial and Professional Use, complies with UL-2043 Fire Tests for Heat and Visible Smoke Release for Discrete Products, CUL, NFPA-70, NFPA- 90A Installation of Air Conditioning and Ventilation Systems. In accordance with the requirements of IEC60849/EN60849.
  • Dimensions 250 mm (9.9 in) diameter, 239 mm (9.4 in) mounting depth
  • Cutout Size 220 mm (8.75 in)
  • Ceiling Thickness Range Accommodates tiles / drywall up to 70 mm (2.75 in) thick
  • Net Weight 3.9 kg (8.6 lb)
  • Shipping Weight 8.6 kg (19.0 lb), pair pack
  • Included Accessories C-ring support backing plate, 2 tile support rails (fits both 2 x 4 ft or 600 x 1200 mm tiles), press-in grille, knockout strain relief, cutout template, paint shield, 2 removable locking multi-pin connectors.
  • Optional Accessories MTC-26NC New Construction Bracket
  • MTC-26MR Mud Ring Construction Bracket
