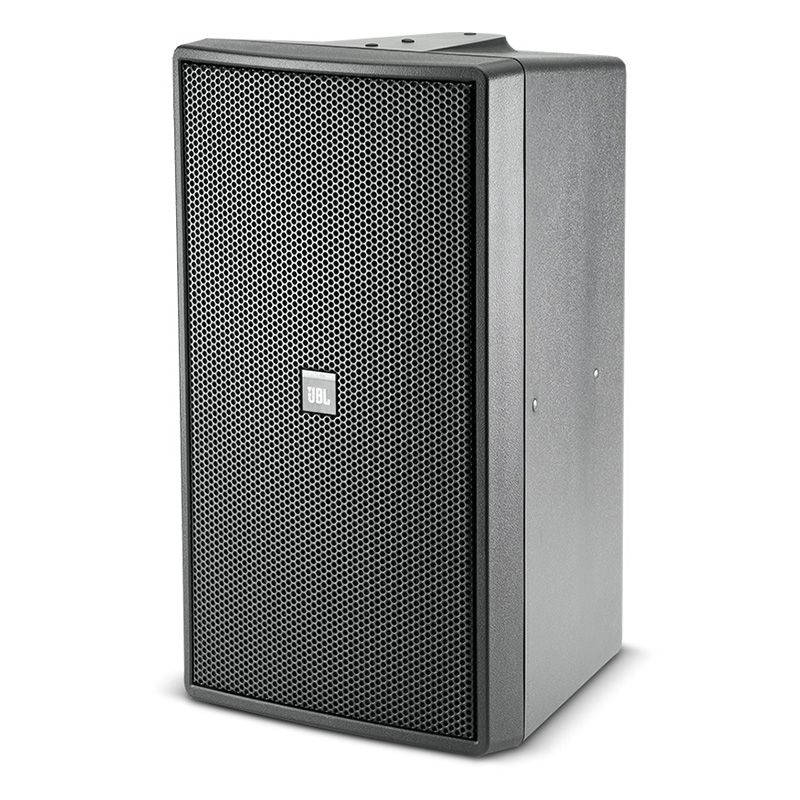

JBL CONTROL 29AV-1 nazidni zvučnici

RSD82.595,28
(cena je sa uračunatim PDVom)
Vreme isporuke: 5 do 7 dana!
blank
blank

Besplatna dostava
Besplatna dostava je za sve artikle koji su plaćeni preko 15.000 dinara. Svaka pošiljka može biti osigurana dodatno/pošiljke do 70 000 dinara su osigurane.blank

Cenovnik dostave
Klikom na link posetićete stranicu sa ažuriranim cenovnikom kuriskih službi.blank

Načini plaćanja
Naručivanje preko našeg sajta u proseku traje manje od jednog minuta i odvija se kroz nekoliko jednostavnih koraka.blank

Opis proizvoda

Extended bandwidth, extremely smooth frequency response, 110° x 85° HF coverage, rotatable horn, 110 W transformer for 70 V or 100 V lines, with 8 ohm thru, SonicGuard™ overload protection, 200 mm (8 in) Kevlar cone woofer, 25 mm (1 in) titanium diaphragm compression driver, Includes InvisiBall™ mounting hardware, plus ten 6 mm attachment points for suspension and optional U-bracket, Sealed input panel cover and screwdown input terminals.

Tehničke specifikacije proizvoda

  • Frequency Range 37 Hz –18 kHz (-10 dB)
  • Power Capacity 300 W Continuous Program Power; 150 W Continuous Pink Noise
  • Transformer Taps 70 V: 110 W, 55 W, 28 W & 14 W 100 V: 110 W, 55 W, & 28 W,
  • Thru Position: 8 ohms nominal
  • Frequency Response 45 Hz – 18 kHz ( ± 3 dB)
  • Maximum SPL @ 1m Short-Term: 120 dB; Long-Term: 114 dB
  • Nominal Sensitivity 90 dB (2.83V / 1m)
  • Nominal Coverage Angle 110° H x 85° V, rotatable
  • Directivity Factor (Q) 7.2 dB, averaged 500 Hz to 16 kHz
  • Directivity Index (DI) 8.6 dB, averaged 500 Hz to 16 kHz
  • Nominal Impedance 8 ohms
  • Minimum Impedance 6.3 ohms @ 230 Hz
  • Crossover Network 3rd order High Pass, 2nd order Low Pass with impedance compensation, 2.5 kHz crossover frequency
  • Low Frequency 200 (8 in) kevlar cone with pure butyl rubber surround, 50 mm (2 in) voicecoil on fiberglass former
  • High Frequency 25 mm (1 in) compression driver, pure titanium diaphragm with patented JBL diamond surround
  • Enclosure Material High impact polystyrene
  • Grille Thermoset composite coated steel, WeatherMax multi-layer foam
  • Overload Protection Full-range power limiting to protect network and transducers. Serviceable internal fuse to protect during exceptional overload conditions.
  • Environmental IEC 529 IP-X5 rating. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. Passes Mil-Std-202F for salt spray.
  • Terminations Screw-down terminal strip, zinc plated copper base, nickel plated metal screws/washers. Accepts up to 9 mm outside 4 mm inside open lug (#6, #8 or #10 lug), plus bare wire (up to 12 AWG/2.5 mm2).
  • Safety Agency Rating Transformer is listed per UL1876

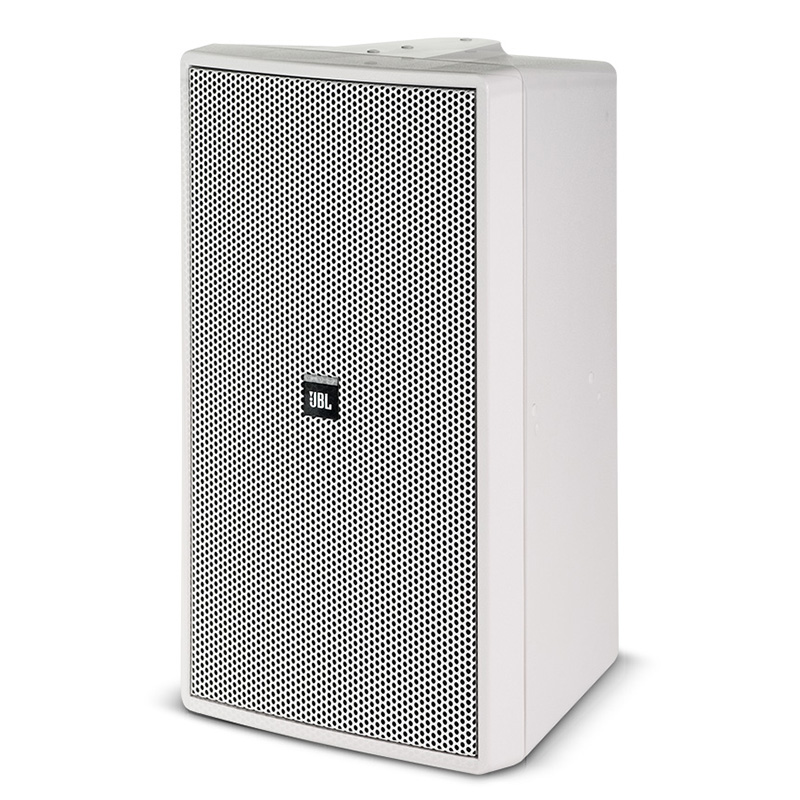

  • Colors Black or white (-WH)
  • Dimensions (H x W x D) 520 x 306 x 277 mm (20.5 x 12.0 x 10.9 in.)
  • Net Weight (ea) 12.2 kg (26.8 lb.)
  • Shipping Weight (ea) 14.0 kg (30.8 lb.)
  • Included Accessories 1 pc MTC-PC2 input panel cover, InvisiBall mounting base, 6 mm x 260 mm InvisiBall Hex wrench. Optional Accessories MTC-29CM to install speaker down from the ceiling MTC-29UB U-bracket
