JBL CONTROL 16C/T-BK plafonski 100V zvučnik

RSD24.524,88
(cena je sa uračunatim PDVom)
Vreme isporuke: 5 do 7 dana!

Besplatna dostava
Besplatna dostava je za sve artikle koji su plaćeni preko 15.000 dinara. Svaka pošiljka može biti osigurana dodatno/pošiljke do 70 000 dinara su osigurane.

Cenovnik dostave
Klikom na link posetićete stranicu sa ažuriranim cenovnikom kuriskih službi.

Načini plaćanja
Naručivanje preko našeg sajta u proseku traje manje od jednog minuta i odvija se kroz nekoliko jednostavnih koraka.

Opis proizvoda

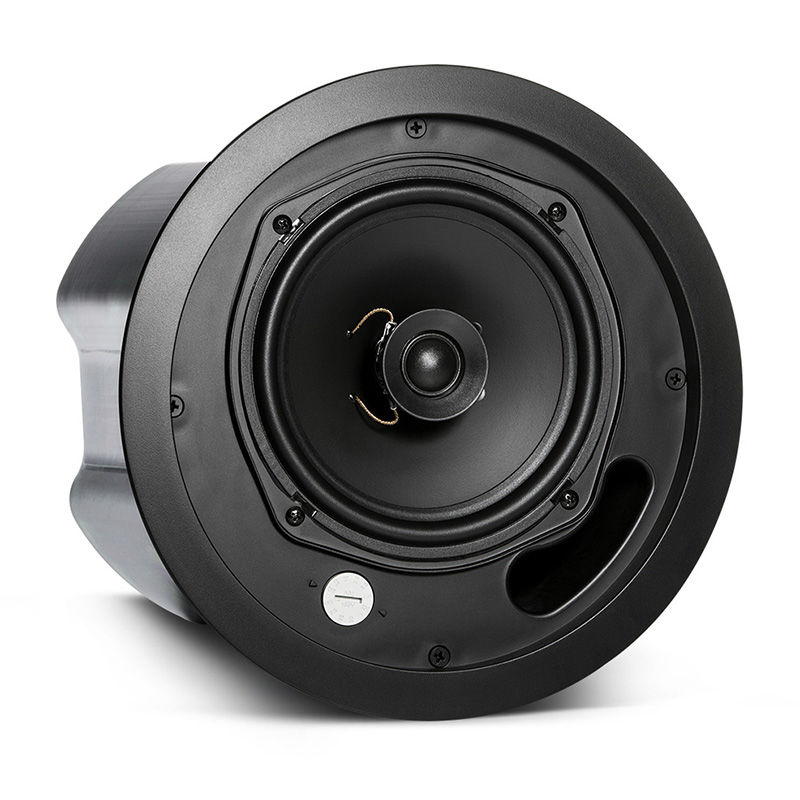

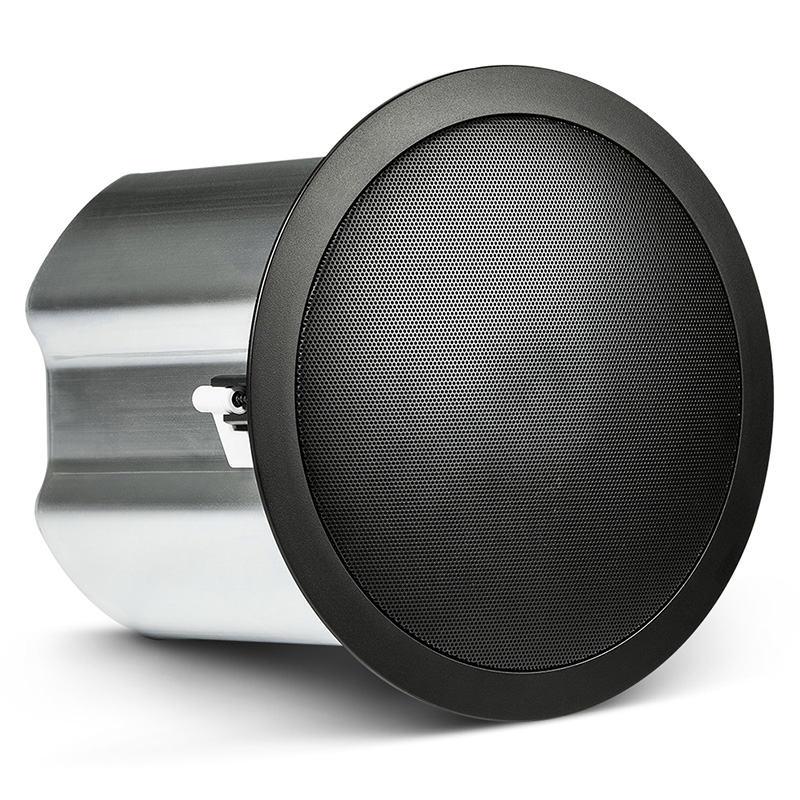

Control 16C/T is a full-range ceiling speaker consisting of a 165 mm (6.5 inch) high tech cone driver and a 19mm soft-dome liquid cooled tweeter mounted in a vented, paintable baffle made of UV resistant UL94-V0 and UL94-5HB material, with a pre-attached blindmount backcan for quick and easy installation.

Tehničke specifikacije proizvoda

  • Frequency Range (-10 dB) 62 Hz – 20 kHz
  • Power Capacity (at low-Z) 100 Watts Continuous Program Power
  • 50 Watts Continuous Pink Noise
  • Transformer Taps 30 W, 15 W, 7.5 W @ 70V or 100V (plus 3.8 W @ 70V only)
  • Frequency Response (±3 dB) 96 Hz – 15 kHz
  • Nominal Sensitivity 91 dB
  • Nominal Coverage Angle 110° conical coverage
  • Directivity Factor (Q) 7.8
  • Directivity Index (DI) 8.2 dB
  • Rated Maximum SPL 108 dB @ 1 m (3.3 ft) average, 116 dB peak
  • Nominal Impedance 8 ohms (in direct/bypass 8Ω setting)
  • Crossover Network 12 dB/oct (2nd order) low-pass to LF driver, 12 dB/oct (2nd order) high-pass to HF driver
  • LF Driver 165 mm (6.5 inch) with polypropylene cone, butyl rubber surround, anodized aluminum voice coil former, high temperature voice coil
  • HF Driver 19 mm (3/4 in), highly-damped treated-silk dome, Kapton™ voice coil, liquid cooling, wide dispersion waveguide
  • Input Connector Removable locking 4-pin connector with screw-down terminals.
  • Max wire size 12 AWG (2.5 mm2)
  • Connector Wiring Pin 1 = + In; Pin 2 = - In; Pin 3 = + Loop Thru; Pin 4 = - Loop Thru
  • Strain Reliefs Strain relief for two cables or two flex conduits via coupled clamping mechanism
  • Materials ABS baffle with UL94-V0 and UL94-5VB flame class fire rating; Zinc-plated steel backcan
  • Safety Agency UL1480, UL2043, NFPA90 & NFPA70; S7232/UL Listed, Suitable for use in air handling spaces, Signaling Speaker; Transformer UL registered per UL1876; ROHS, C-tick N108, CE compliant; Baffle meets UL94-V0 and UL94-5VB flammability rating; In accordance with IEC60849/EN60849 systems
  • Dimensions 253 mm diameter x 225 mm depth from back of baffle (10.0 in diameter x 8.8 in depth)
  • Ceiling Cutout Size Circular cutout with 223 mm (8.8 in) diameter (cardboard cutout template included)
  • Ceiling Thickness Range Up to 38 mm (1.5 in) with stock dog-ears. MTC-TCD thick-ceiling dog-ears available for up to 60 mm (2.4 in) ceiling thicknesses
  • Safety Seismic Attachment One point, top surface
  • Net Weight 3.4 kg (7.4 lbs, one speaker)
  • Shipping Weight 11.2 kg (24.7 lbs, pair in master carton)
  • Included Accessories C-ring support backing plate, 2 tile support rails (for 2 ft or 600 mm tile spans; optional MTC-48TR extension available for larger 4 ft or 1200 mm tile spans), cutout template, paint shield, removable locking multi-pin connector, grille
  • Optional Accessories
  • MTC-26NC new construction bracket
  • MTC-26MR mud-ring construction bracket
  • MTC-TCD thick-ceiling dog-ears for ceiling thicknesses up to 60 mm (2.4 in, ordering one set = 24 dog-ears for 6 speakers)
  • MTC-48TR tile rail for 1200 mm (4 ft) tile spans
