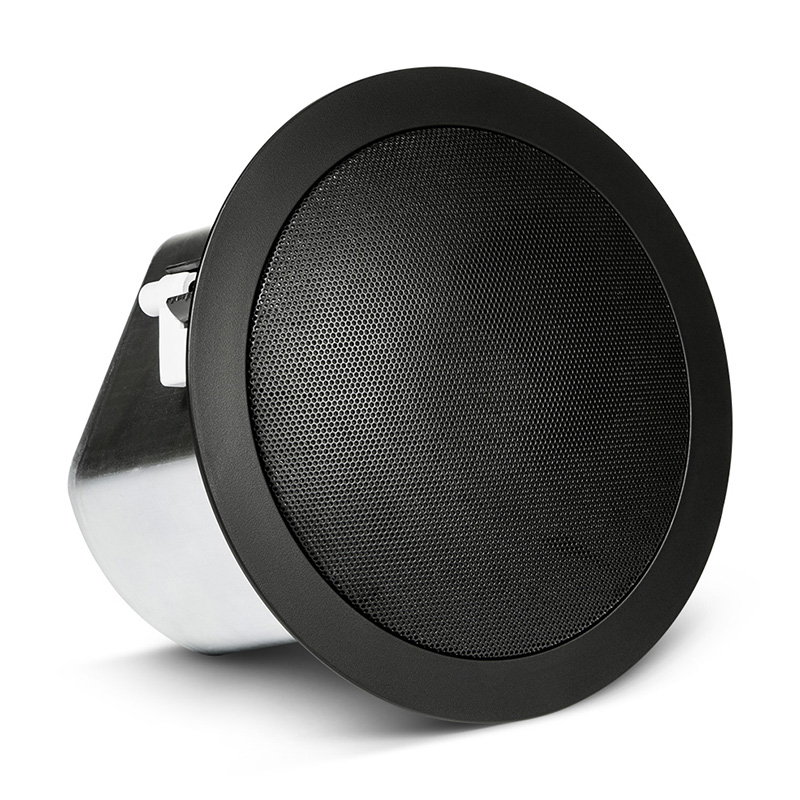

JBL CONTROL 12C/T-BK plafonski 100V zvučnik

RSD13.530,97
(cena je sa uračunatim PDVom)
Vreme isporuke: 5 do 7 dana!

Besplatna dostava
Besplatna dostava je za sve artikle koji su plaćeni preko 15.000 dinara. Svaka pošiljka može biti osigurana dodatno/pošiljke do 70 000 dinara su osigurane.

Cenovnik dostave
Klikom na link posetićete stranicu sa ažuriranim cenovnikom kuriskih službi.

Načini plaćanja
Naručivanje preko našeg sajta u proseku traje manje od jednog minuta i odvija se kroz nekoliko jednostavnih koraka.

Opis proizvoda

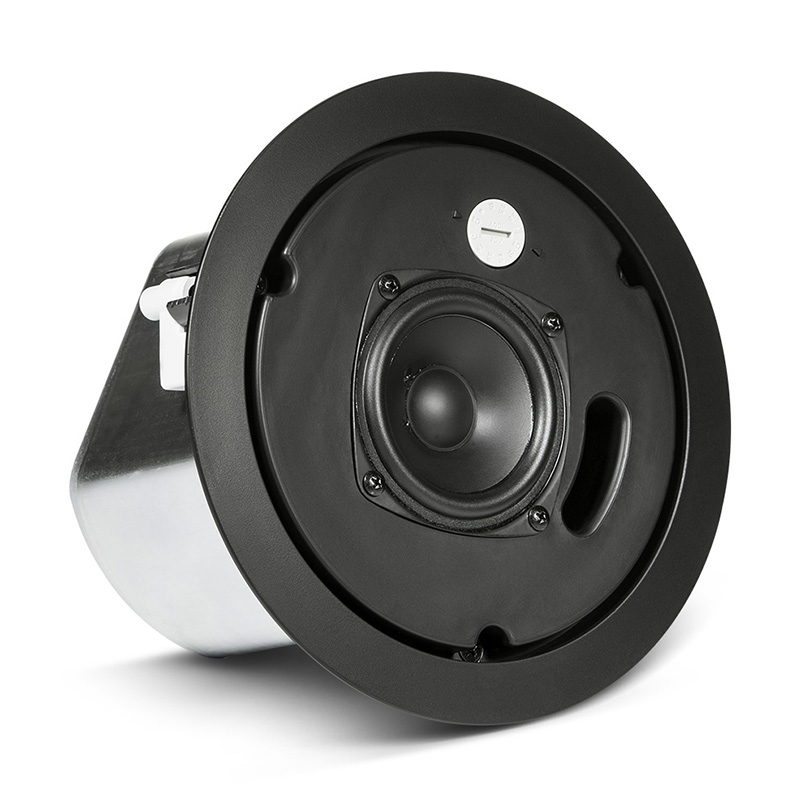

Control 12C/T is a full-range ceiling speaker consisting of 76 mm (3 inch) wide-bandwidth cone driver mounted in a vented, paintable baffle made of UV resistant UL94-V0 material, with a preattached blind-mount backcan for quick and easy installation.

Tehničke specifikacije proizvoda

  • Frequency Range (-10 dB) 68 Hz – 17 kHz
  • Power Capacity (at low-Z) 40 Watts Continuous Program Power
  • 20 Watts Continuous Pink Noise
  • Transformer Taps 15 W, 7.5 W, 3.8 W @ 70V and 100V (& 1.9 W @ 70V only)
  • Frequency Response (±3 dB) 95 Hz – 15 kHz
  • Nominal Sensitivity 84 dB
  • Nominal Coverage Angle 130° conical coverage
  • Directivity Factor (Q) 9.8
  • Directivity Index (DI) 7.4 dB
  • Rated Maximum SPL 97 dB @ 1 m (3.3 ft) average, 103 dB peak
  • Nominal Impedance 8 ohms (in direct/bypass 8Ω setting)
  • Full-Range Driver 76 mm (3 inch) with polypropylene cone, butyl rubber surround, Kapton™ voice coil former, high temperature voice coil, aluminum coupling ring for low distortion and HF extension
  • Input Connectors Removable locking 4-pin connector with screw-down terminals.
  • Max wire size 12 AWG (2.5 mm2)
  • Connector Wiring Pin 1 = + In; Pin 2 = - In; Pin 3 = + Loop Thru; Pin 4 = - Loop Thru
  • Strain Reliefs Strain relief for two cables or two flex conduits via coupled clamping mechanism
  • Materials ABS baffle with UL94-V0 and UL94-5VB flame class fire rating. Zinc-plated steel backcan
  • Safety Agency UL1480, UL2043, NFPA90 & NFPA70; S7232/UL Listed, Suitable for use in air handling spaces, Signaling Speaker; Transformer UL registered per UL1876; ROHS, C-tick N108, CE compliant; Baffle meets UL94-V0 and UL94-5VB flammability rating; In accordance with IEC60849/EN60849 systems
  • Dimensions 196 mm diameter x 138 mm depth from back of baffle (7.7 in diameter x 5.4 in depth)
  • Ceiling Cutout Size Circular cutout with 170 mm (6.7 in) diameter (cardboard cutout template included)
  • Ceiling Thickness Range Up to 35 mm (1.4 in) with stock dog-ears. MTC-TCD thickceiling dog-ears available for up to 55 mm (2.2 in) ceiling thicknesses.
  • Safety Seismic Attachment One point, top surface
  • Net Weight 1.6 kg (3.5 lbs, one speaker)
  • Shipping Weight 6.7 kg (14.7 lbs, pair in master carton)
  • Included Accessories C-ring support backing plate, 2 tile support rails (for 2 ft or 600 mm tile spans; optional MTC-48TR extension available for larger 4 ft or 1200 mm tile spans), cutout template, paint shield, removable locking multi-pin connector, grille.
  • MTC-24NC new construction bracket
  • MTC-24MR mud-ring construction bracket
  • MTC-TCD thick-ceiling dog-ears for ceiling thicknesses up to 55 mm (2.2 in, ordering one set = 24 dog-ears for 8 speakers)
  • MTC-48TR tile rail for 1200 mm (4 ft) tile spans
