Opis proizvoda

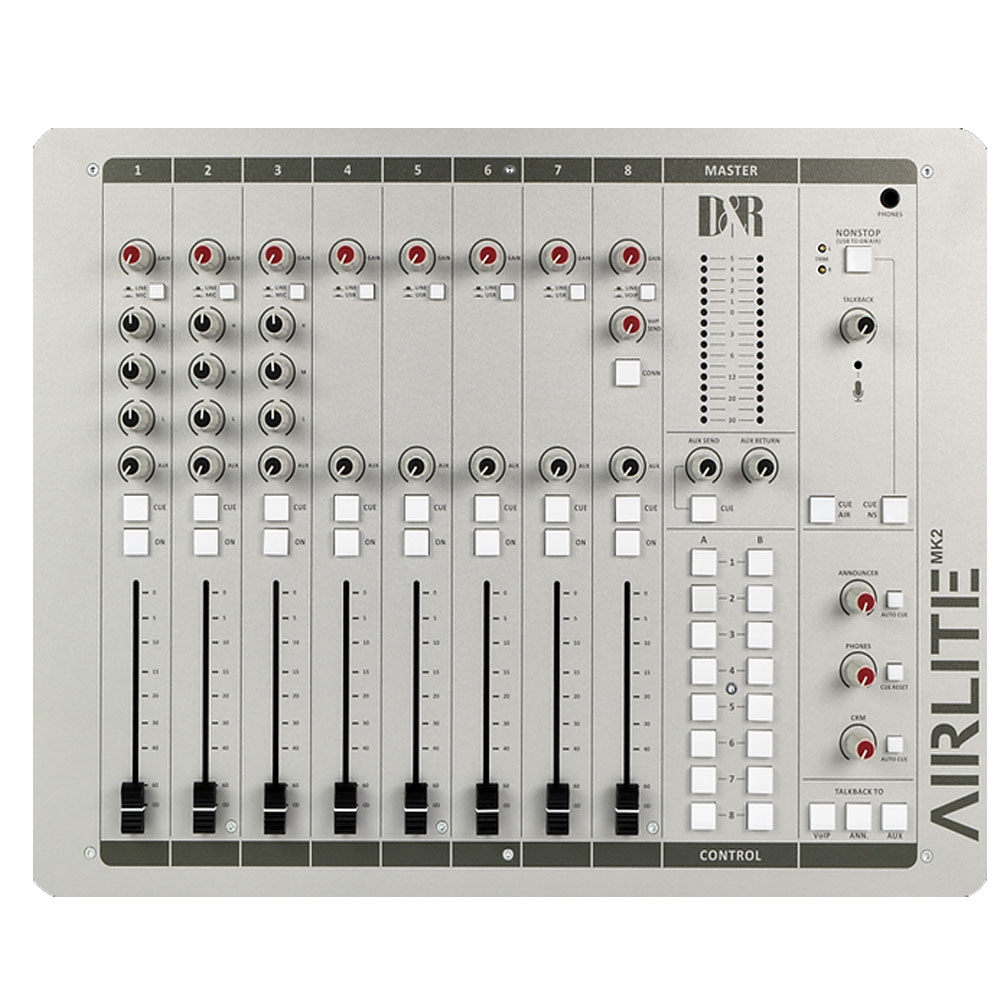

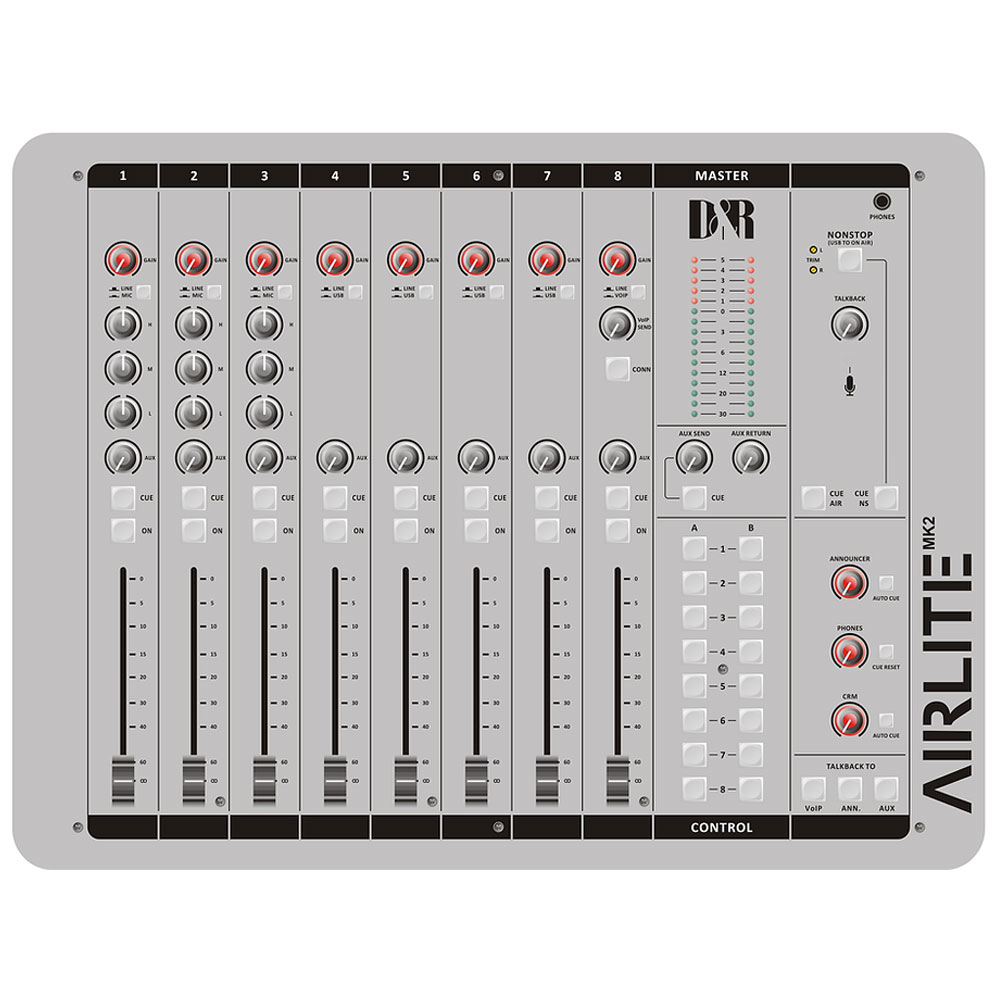

D&R Airlite MK2 USB-VoIP mikseta ispunjava sve zahteve visoko kvalitetnih radio produkcijskih mikseta. Poseduje ugrađen Telephone VOIP, 4 in/out stereo USB kanala i 3 low noise mikrofonska ulaza. Glavna odlika ovog miksera je veoma nizak nivo termičkog šuma.
Tehničke specifikacije proizvoda

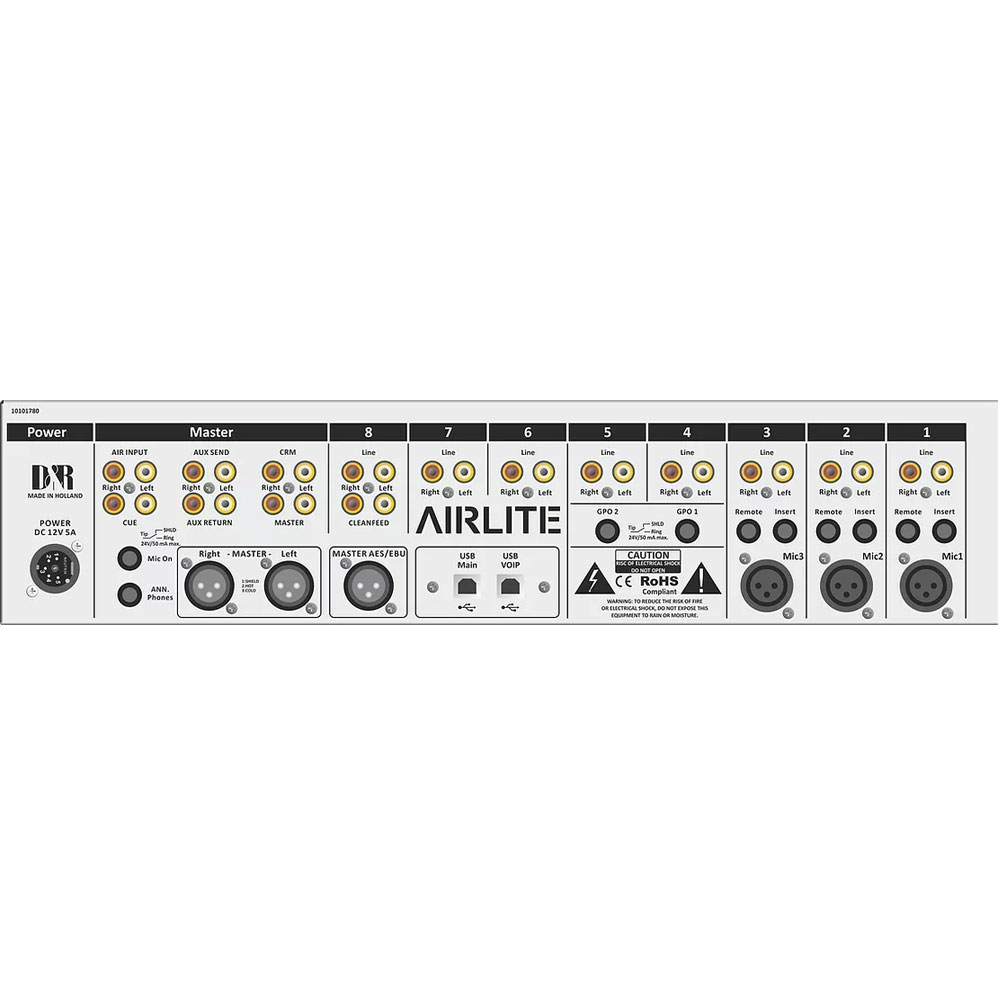

INPUTS:
- Mic inputs : bal, 2 kOhm, XLR ,48 volt Phantom.
- Noise : - 128 dBr (A-weighted).
- Sensitivity : - 70dB min, OdB Max.
- Insert : Jack unbal. send 600 Ohm -10dBv.
- Aux ret : unbalanced 10kOhm -10dBv.
- Line inputs : unbal., 10kOhm, Cinch.
- Gain : range of 40dB.
USB:
- 4x Stereo in and 4x stereo out.
- Air input : - 10 dBv at 10kOhm stereo
- Aux Ret : - 10 dBv at 10kOhm stereo
OUTPUTS:
- Left/Right : + 6dBu bal /XLR. -10dBv/Cinch
- CRM/Aux : + 6dBu unbal. on Cinch.
- Headphones : 32-400 Ohm, Jack. (TPA 6120)
- Announcer : 32-400 Ohm, Jack. (TPA 6120)
- USB out : Program/Aux/Voice track/Non Stop
EQUALIZER:
- High : + / -12 dB at 12kHz shelving.
- Mid : + / -12dB at 1 kHz bell curve.
- Low : + / -12dB at 60 Hz bell curve.
- Digital AES/EBU main stereo outputs.
The console is prepared to accept an extra pcboard with all the electronics to create a full digital output on the already installed 3 pin XLR.
The AES/EBU option of the Airlite can be configured as a 24 bit 48Khz or 24 bit 96Khz codec with the option of -9dbfs or -20dbfs reference. The codec used is from AsahiKASEI, manufacturer of codecs used in many Pro audio applications.
DIMENSIONS:
- Left-Right : 482 mm
- Front-Back : 365 mm (8HE).
- Height : 103 mm.
- Front panel thickness : 2 mm
- Radius Corners : 20 mm
- Weight : 10 kg.
- Drop through hole : 449 x 344 mm
