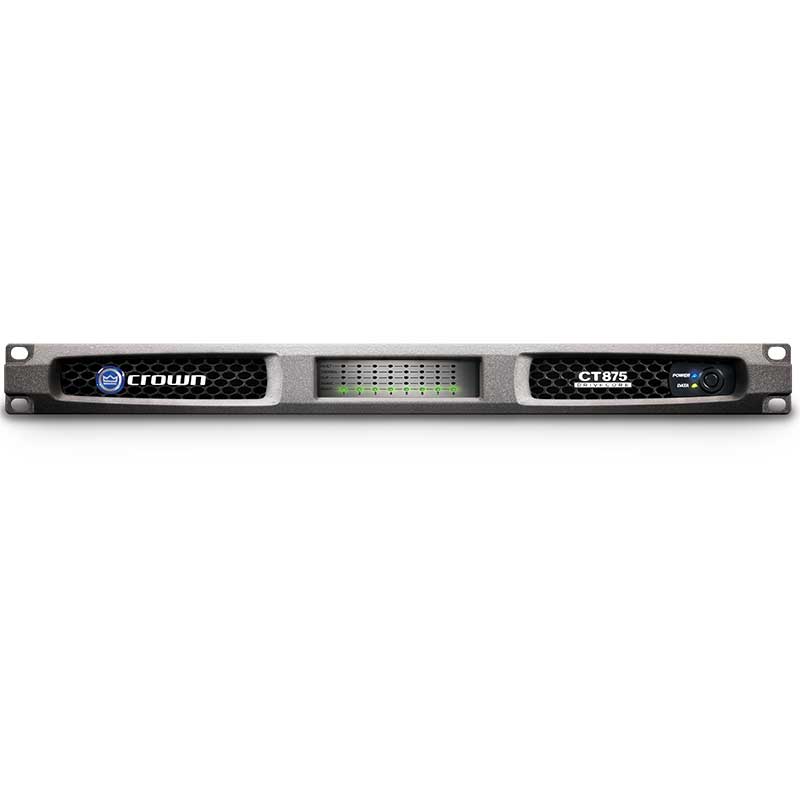

Crown CT 875 pojačalo

RSD205.964,00
(cena je sa uračunatim PDVom)
Vreme isporuke: 7 do 10 dana!

Besplatna dostava
Besplatna dostava je za sve artikle koji su plaćeni preko 15.000 dinara. Svaka pošiljka može biti osigurana dodatno/pošiljke do 70 000 dinara su osigurane.

Cenovnik dostave
Klikom na link posetićete stranicu sa ažuriranim cenovnikom kuriskih službi.

Načini plaćanja
Naručivanje preko našeg sajta u proseku traje manje od jednog minuta i odvija se kroz nekoliko jednostavnih koraka.

Opis proizvoda

Powering this remarkable amplifier is the pioneering technology of DriveCore™, which integrates the amplifier drive stage into the power output stage fusing everything into a chip the size of a dime. DriveCore's front-end drive circuits leverage the inherent efficiency of Class D output stages while also maintaining superb sonic characteristics. The end result is an audio amplifier circuit that exhibits the exemplary audio quality of a highly evolved Class AB design.

Tehničke specifikacije proizvoda

  • Flexible Input Routing
  • Convection Cooled
  • Universal Power Supply
  • Integrated Life-Safety Features
  • Up to 8X125W in 1U chassis with no fan
  • DriveCore™ technology provides >90% efficiency with no compromise in performance
  • Patented Feedback and Protection Circuits
  • Amplifier is stable for 2 – 16 Ohm Loads
  • XFMR 4/8 needed for 70V/100V Applications
  • Channels 8
  • Sensitivity 1.4 V
  • Rated Power Output (all channels driven) 75W per CH @ 4 ohms, 75W per CH @ 8 ohms
  • Signal to Noise Ratio (below rated power 20 Hz to 20 kHz, A-Weighted) 110 dB
  • THD (full rated power, 20 Hz - 20 kHz) < 0.05%
  • Intermodulation Distortion (from 0 dB down to -30 dB) < 0.05%
  • Frequency Response (at 1W, 4/8 ohms) +/- 0.5 dB
  • Crosstalk (below rated power) 20 Hz to 1 kHz > 70 dB
  • Common Mode Rejection (20 Hz to 1 kHz) > 55 dB, typically > 70 dB
  • Voltage Gain 25 dB
  • DC Offset +/- 20mV
  • Idle Power Consumption (Standard Mode) 23.0W
  • Dimensions 1.75" x 19" x 15.19"
  • Weight 10lbs/4.54kg
  • Shipping Weight 15 lbs/6.8 kg
  • IEC Power Connector 15A
