Cameo SB 6 DUAL DMX Splitter / Booster

Garancija dve godine!

Besplatna dostava
Besplatna dostava je za sve artikle koji su plaćeni preko 15.000 dinara. Svaka pošiljka može biti osigurana dodatno/pošiljke do 70 000 dinara su osigurane.

Cenovnik dostave
Klikom na link posetićete stranicu sa ažuriranim cenovnikom kuriskih službi.

Načini plaćanja
Naručivanje preko našeg sajta u proseku traje manje od jednog minuta i odvija se kroz nekoliko jednostavnih koraka.

Opis proizvoda

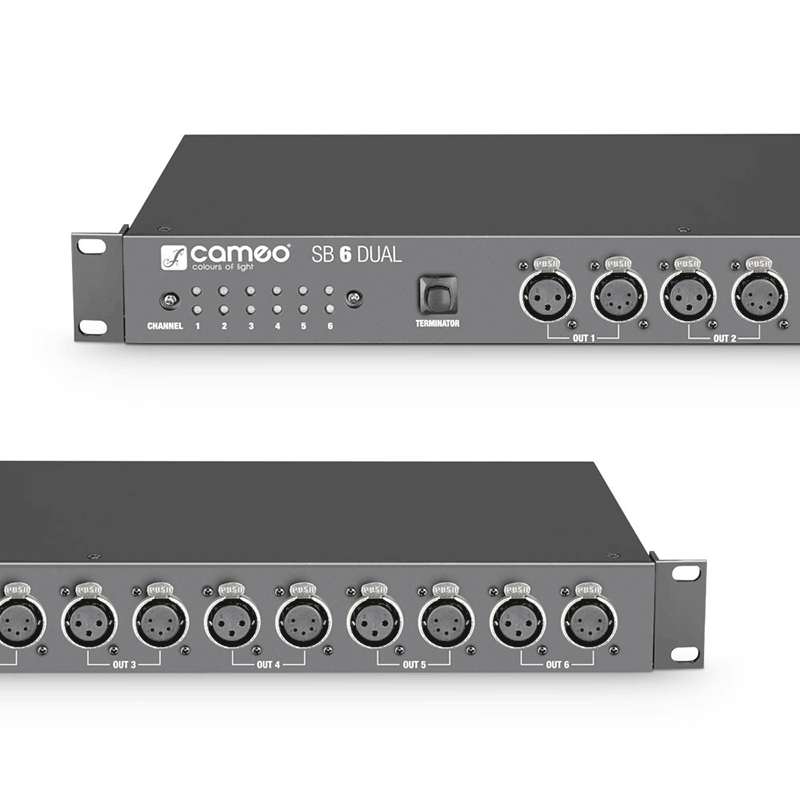

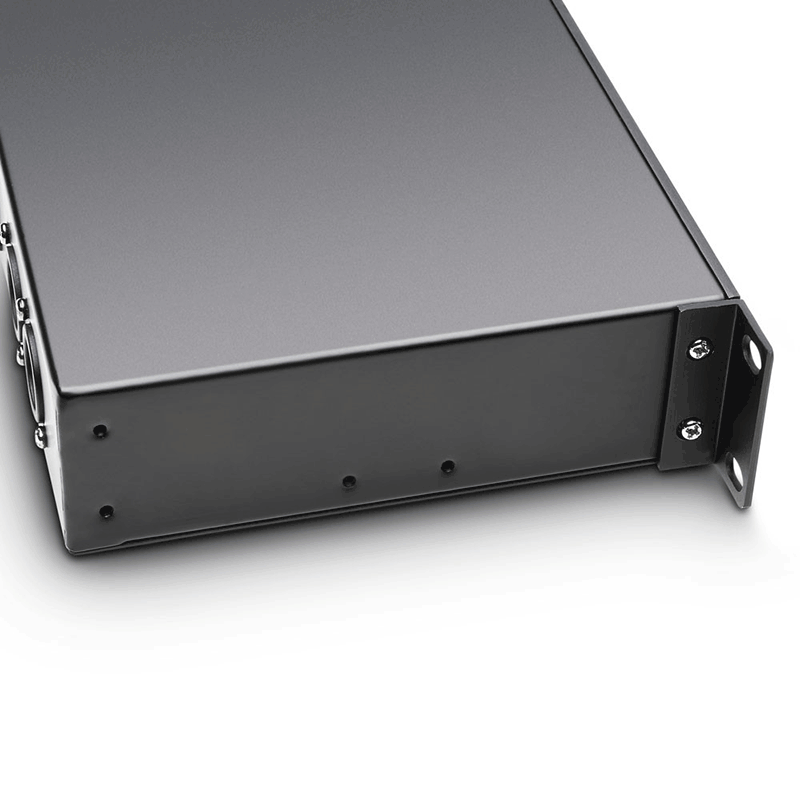

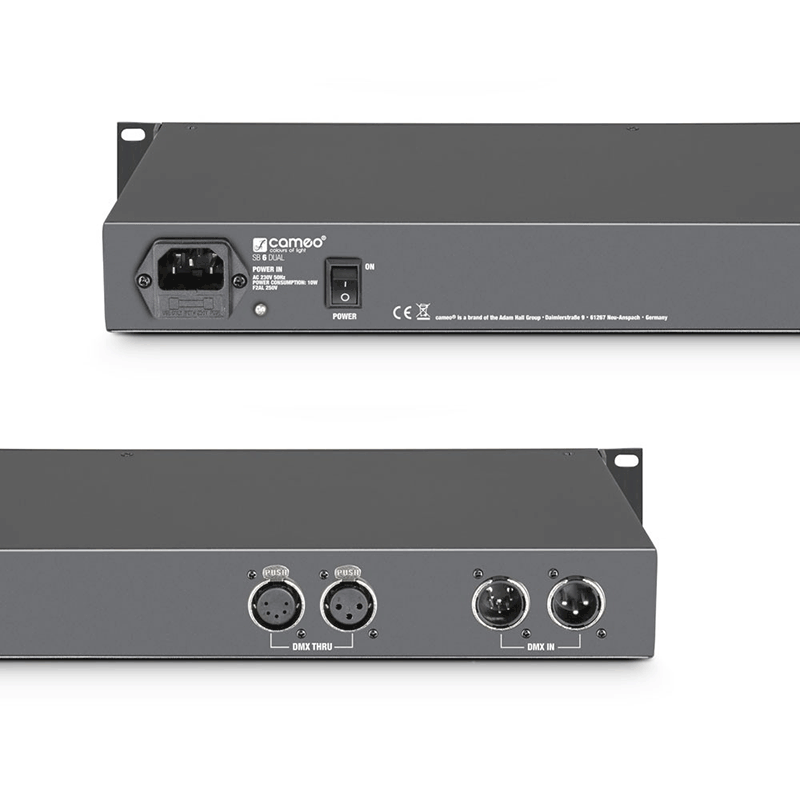

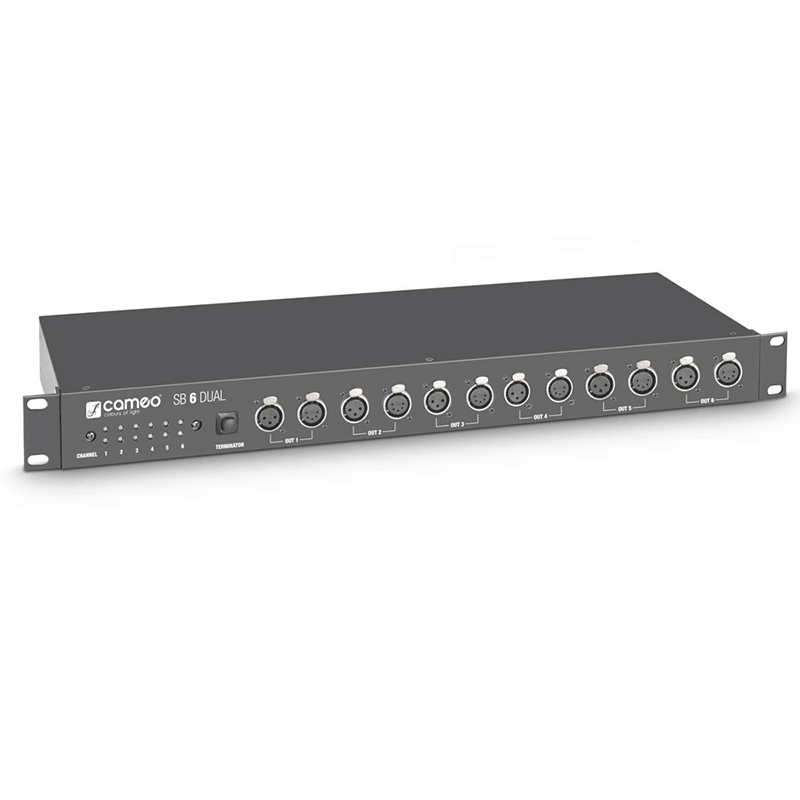

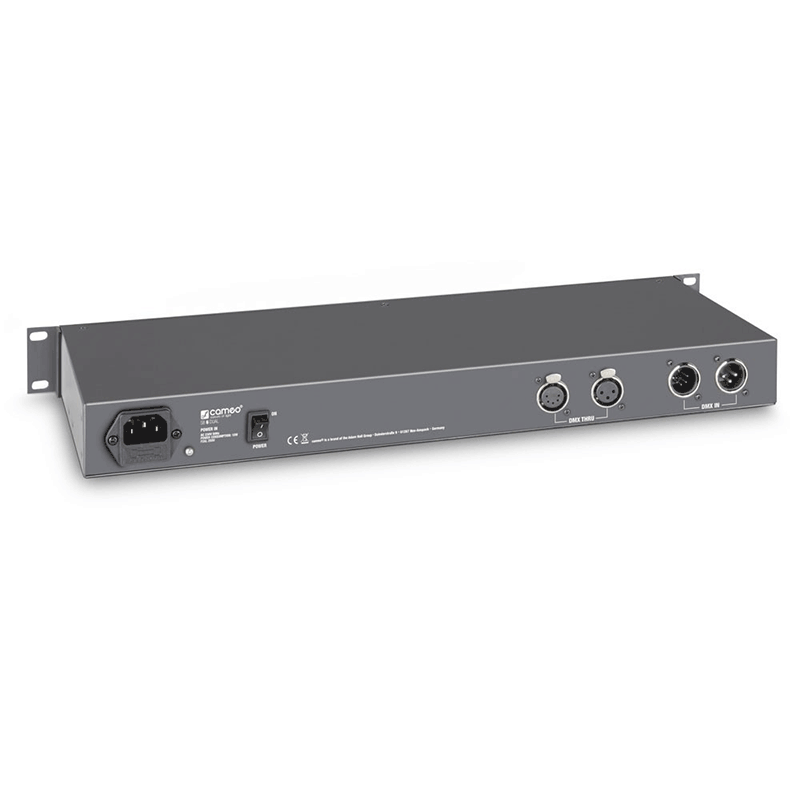

The Cameo CLSB6D is the professional solution for configuring DMX networks. The splitter and booster in 19" format amplifies the DMX input signal and distributes it to 6 electrically isolated outputs. It is connected directly to the DMX controller or to DMX devices. The input and the THRU socket for looping of the signal are duplicated on the front and back of the CLSB6D and connected in parallel. Bright LEDs show the DMX and power status of the channels on the front panel, the outputs are located on the back. A switchable 120 Ohm terminating resistor on the DMX THRU output and the power switch complete the equipment; the IEC-cable is supplied. For convenient output connector access and reverse installation the rack-mount angles can be attached to the rear of the chassis.



Tehničke specifikacije proizvoda

  • Type DMX splitter / booster
  • DMX inputs 2 (parallel)
  • DMX input connectors XLR 3-pin male , XLR 5-pin male
  • DMX Thru Outputs 2 (parallel)
  • DMX Thru Output Connectors XLR 3-pin female , XLR 5-pin female
  • DMX outputs 6
  • Controls DMX Thru Terminator , Power On/Off
  • Indicators 6 x Power LED , 6 x Signal LED
  • Mains connector IEC power connector
  • Operating voltage transformer
  • Operating voltage 230 V AC, 50 Hz
  • Power consumption 15 W
  • Width 483 mm
  • Height 44 mm
  • Depth 160 mm
  • Weight 2,976 kg
  • Accessories (included) Power cord
