Cameo OPUS® S5 roto glava

Garancija dve godine!

Besplatna dostava
Besplatna dostava je za sve artikle koji su plaćeni preko 15.000 dinara. Svaka pošiljka može biti osigurana dodatno/pošiljke do 70 000 dinara su osigurane.

Cenovnik dostave
Klikom na link posetićete stranicu sa ažuriranim cenovnikom kuriskih službi.

Načini plaćanja
Naručivanje preko našeg sajta u proseku traje manje od jednog minuta i odvija se kroz nekoliko jednostavnih koraka.

Opis proizvoda

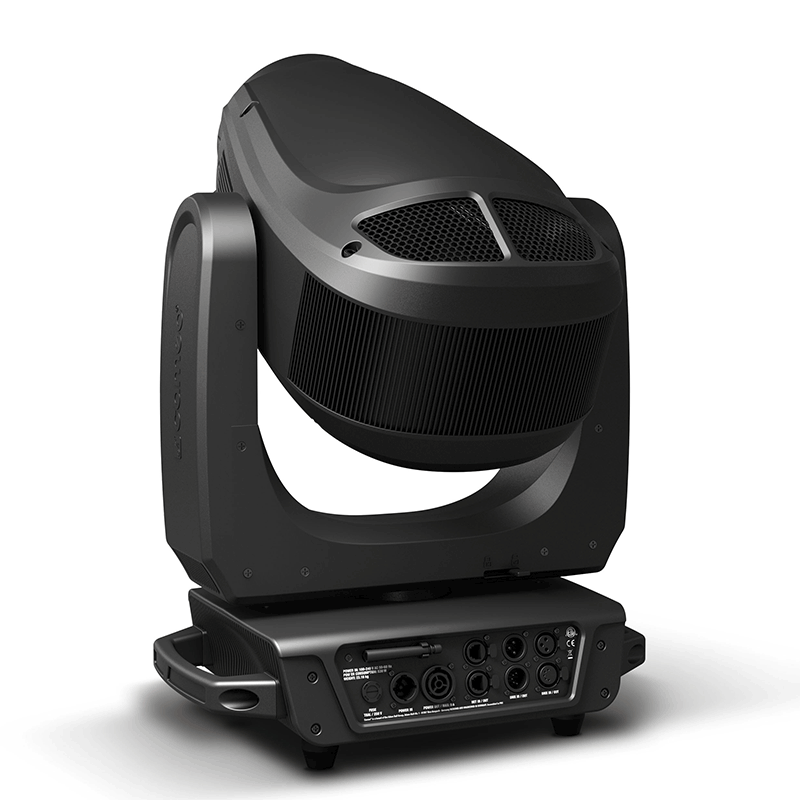

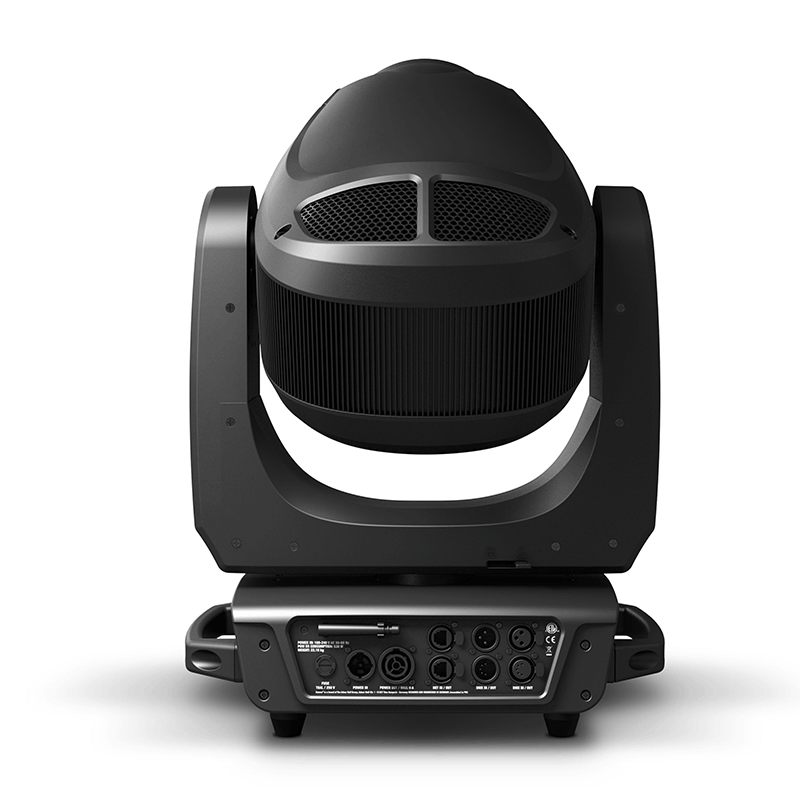

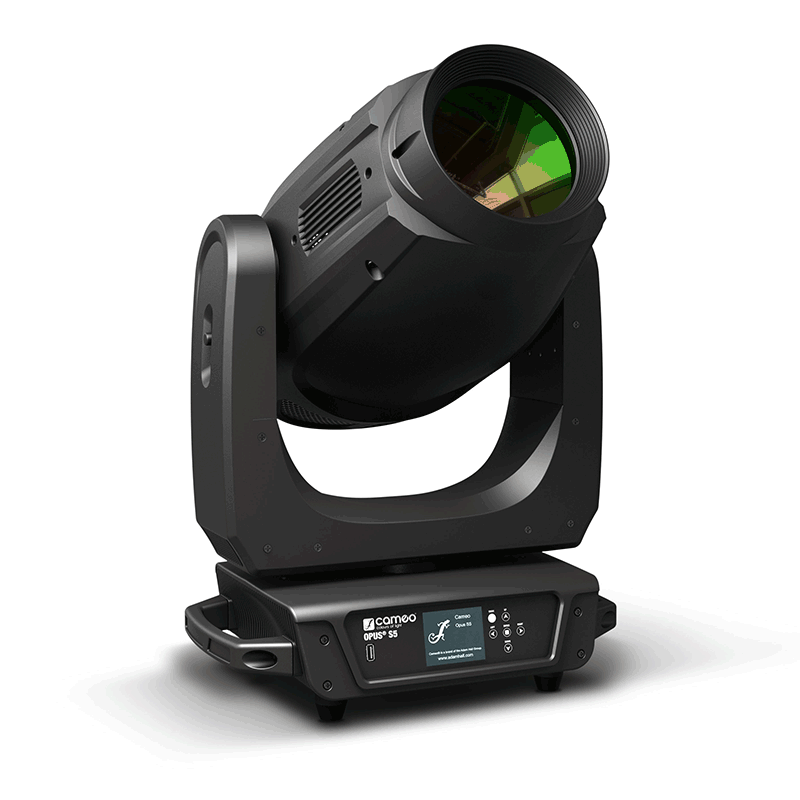

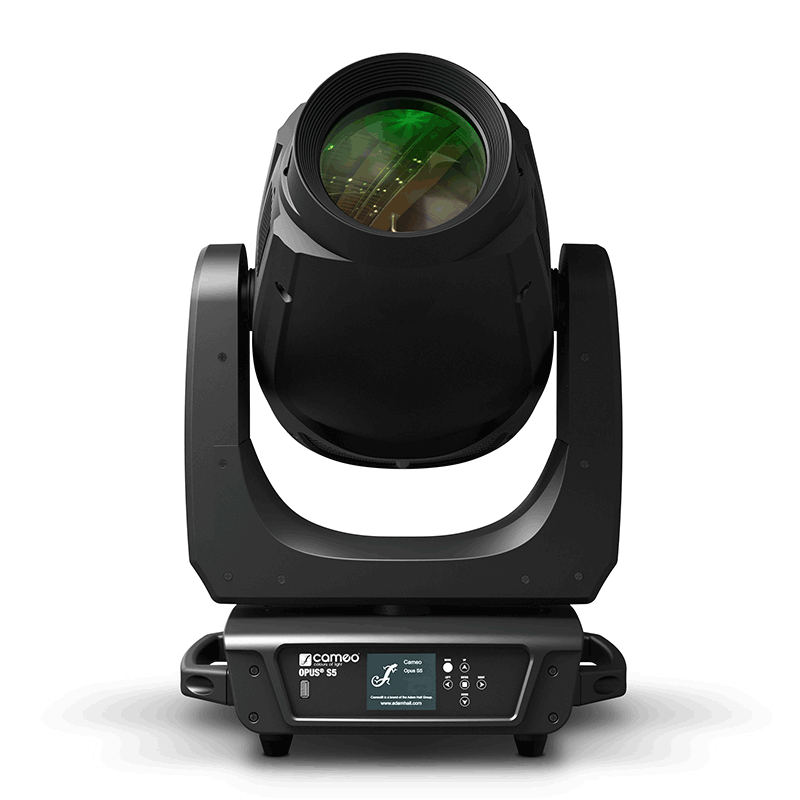

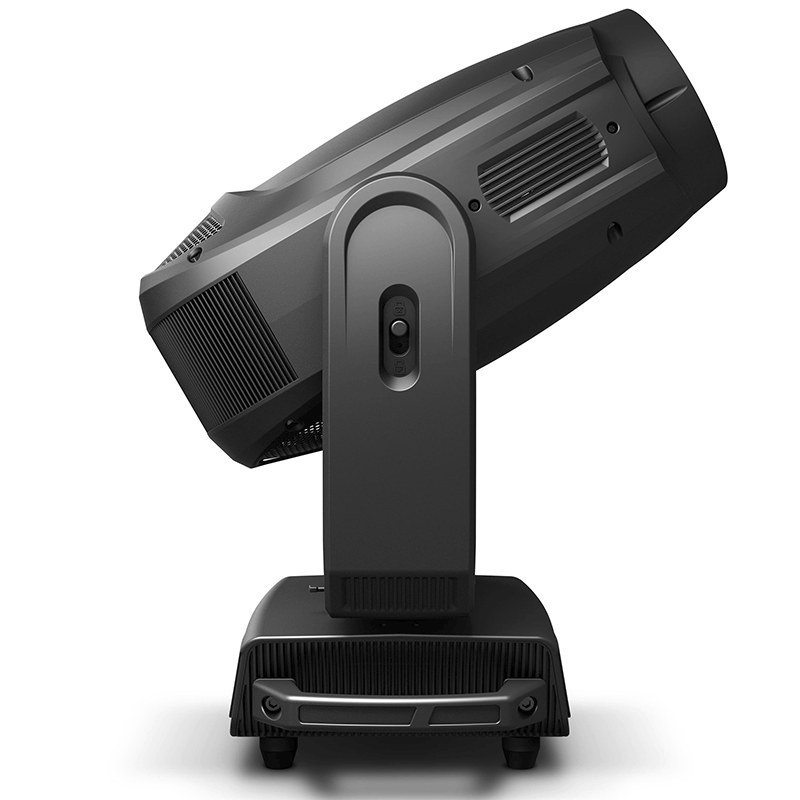

Illuminating stages with brilliant, lively colours, the Cameo OPUS® S5 is a compact super bright spot moving head with a powerful 380 W white LED engine, CMY mixing system and linear CTO correction. It is highly effective in venues of all sizes thanks to its wide zoom range. An additional colour wheel with 7 dichroic filters enables instant colour changes and split colour projection. The fixture has an enormous 17,500 lm output, huge illuminance of 39,000 lux at a distance of 5 meters and rapid 540° pan and 270° tilt movement. Permitting extensive beam control, the highly efficient optics feature an extra wide zoom range from 6° to 46° and stepless iris. A continuously variable frost filter provides soft, wash-like diffusion. Generating spectacular morphing effects when used simultaneously, the OPUS® S5 has two gobo wheels with 7 rotating and 8 static glass gobos which can also be used in combination with the rotating animation wheel for amazingly vivid projections. In addition to a rotatable and indexable 3-facet circular prism and a 6-facet linear prism to multiply gobo projection, the luminaire includes 16-bit dimming with a choice of 4 curves. The OPUS® S5 offers flexible control options via DMX, RDM, Art-Net, sACN or the built-in W-DMX™ transceiver. It has a rugged ABS and metal housing with Neutrik® DMX and powerCON TRUE1 connectors and super efficient heat pipe cooling system with temperature controlled fans to ensure optimal cooling. A battery-powered touchscreen display with 6 additional touch buttons permits convenient offline configuration and two modes of menu navigation. The luminaire comes with two omega brackets and power cord.



Tehničke specifikacije proizvoda

  • Product type LED Moving Lights
  • Type Moving Head
  • Colour spectrum white
  • Number of LEDs 1
  • Colour temperature 6600 K
  • LED type 380 W
  • Refresh rate adjustable to 25000 Hz
  • Dispersion 6 - 46 °
  • DMX input XLR 3-pin male , XLR 5-pin male
  • DMX output XLR 3-pin female , XLR 5-pin female
  • DMX mode 27-channel , 33-channel
  • DMX Functions Animation Wheel , Auto Movement , Colour wheel , CTO , CTO Fine , Cyan , Cyan Fine , Device Settings , Dimmer , Dimmer Fine , Focus , Focus Fine , Frost , Gobo wheel , Gobo Wheel 1 , Gobo Wheel 2 , Iris , Magenta , Magenta Fine , PAN , PAN FINE , Prism , Rotation Fine , Rotation Gobo Wheel 1 , Rotation Prism , Set Dimmer Curve , strobe , TILT , TILT FINE , Yellow , Yellow Fine , Zoom , Zoom Fine
  • PAN movement 540
  • TILT movement 270
  • High Speed Strobe > 20 Hz
  • Standalone modes Auto Mode , Settings , Static
  • Controls Enter , mode , Value Down , Value Up
  • Indicators Graphic Display
  • Operating voltage 100 V AC - 240 V AC, 50 - 60 Hz , Neutrik True 1 IN / OUT
  • Power consumption 530 W
  • Housing material ABS plastic , metal
  • Cabinet colour Black
  • Protection class IP IP20
  • Cooling Heat-pipe cooling system with temperature controlled fans
  • Luminous flux 17500 lm
  • Maximum Ambient Temperature -15 - 45 °C
  • Width 400 mm
  • Height 630 mm
  • Depth 250 mm
  • Weight 24 kg
  • Accessories (included) 2 x Omega Clamp , Power cord
