Cameo CONTROL PAD – STICK EDITION BLACK DMX Controller

Garancija dve godine!
blank

Besplatna dostava
Dostava je besplatna za online narudžbine fizičkih lica u vrednosti preko 15.000,00 dinara. Svaka pošiljka može biti osigurana dodatno/pošiljke do 70 000 dinara su osigurane.blank

Cenovnik dostave
Klikom na link posetićete stranicu sa ažuriranim cenovnikom kuriskih službi.blank

Načini plaćanja
Naručivanje preko našeg sajta u proseku traje manje od jednog minuta i odvija se kroz nekoliko jednostavnih koraka.

Opis proizvoda

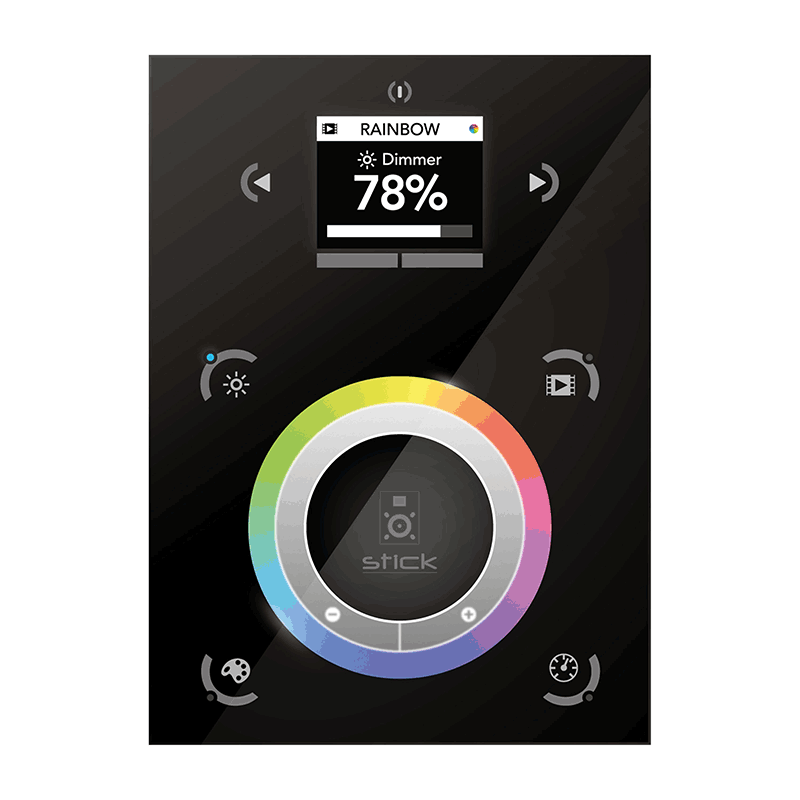

Total lighting control right at your fingertips, just as easy as flicking a switch - with Cameo's Stick Edition Multi-Zone Control Pad there is no need to navigate through complex menus. Select a zone and use the touch sensitive scroll wheel or tap the dedicated quick access touch buttons to choose from static or dynamic scenes, set dynamic scene speed and adjust brightness with the dimmer function. The colour palette offers a selection of more than 16 million RGB colours. With 1,024 DMX channels, 500 scenes and 10 zones, the Stick Edition DMX Control Pad is designed to provide an extremely user-friendly control solution even for the most demanding lighting installations. Featuring USB and Ethernet connections, it is networkable and compatible with ESA, ESA2, ESA Pro and ESA Pro 2 software for Mac and Windows and remote control apps for iOS and Android devices. Available in black or white, the wall controller features a high-quality tempered glass front panel that includes a graphical display of settings and full-colour scene images.



Tehničke specifikacije proizvoda

  • Type DMX Controller
  • Colour Black
  • Controls Touch sensitive buttons
  • Connectors 5 V Output Relay , 8 x Dry contact ports , Clock , Ethernet , RS232 , USB
  • Software Arcolis App , Cameo D4 , Daslight 4 , ESA Pro , ESA Pro 2 , ESA2 , Remote control app
  • Output Protocol 2 x DMX 512
  • Number of DMX channels 1024
  • Clock / Calendar triggers 100 / astronomical
  • Live control colour , Dimmer , Speed
  • Zones 10
  • Scenes 500
  • Memory Micro SD Card
  • Memory capacity (max.) 32 GB
  • Battery type LIR2032
  • Operating voltage 6 - 7 V DC / 0.6 A
  • Power connector barrier strip , RJ45
  • Ambient Temperatur (operating) -10 - 45 °C
  • Mounting Single or double gang wall socket
  • Accessories (included) AC/DC adapter , RJ45 to board block
  • Width 106 mm
  • Height 146 mm
  • Depth 11 mm
  • Weight 0,45 kg
