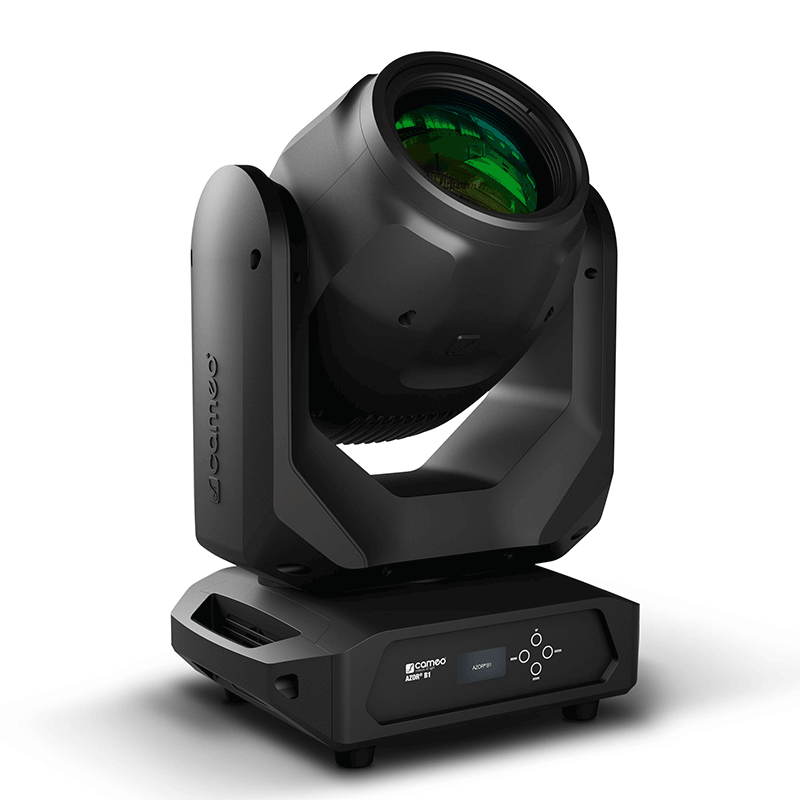

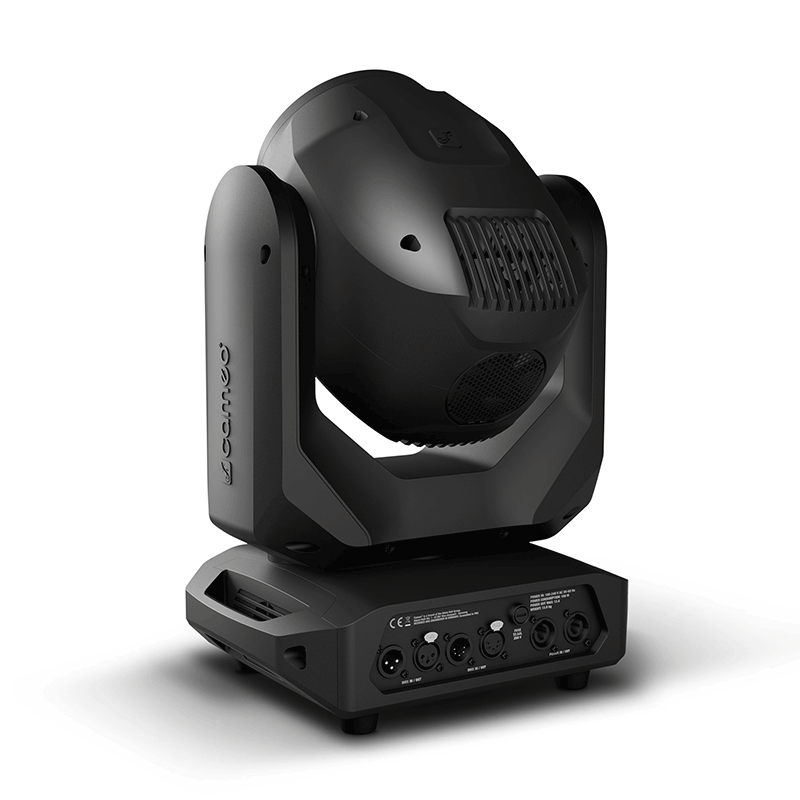

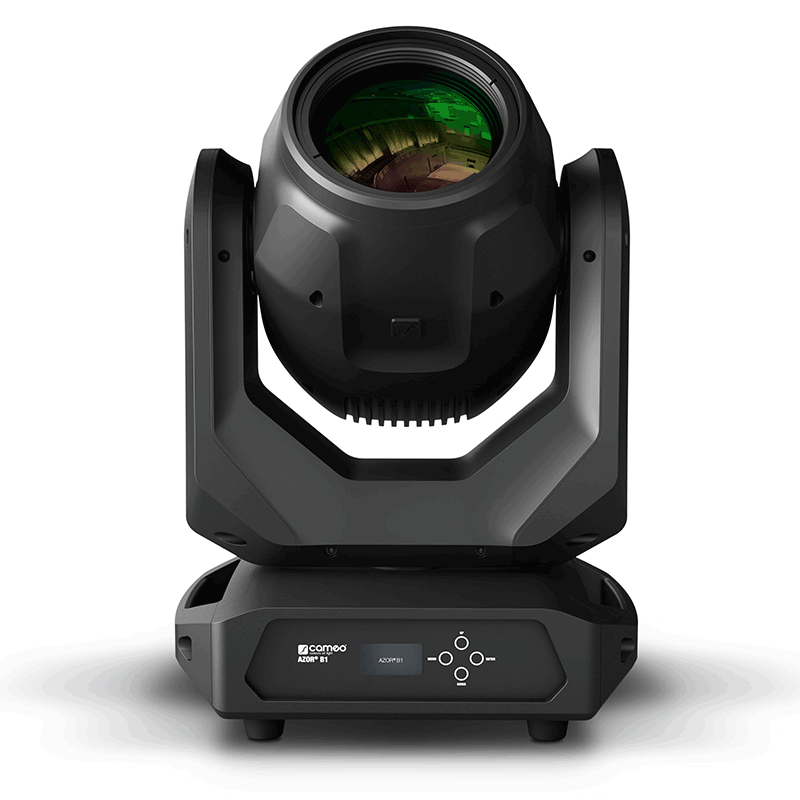

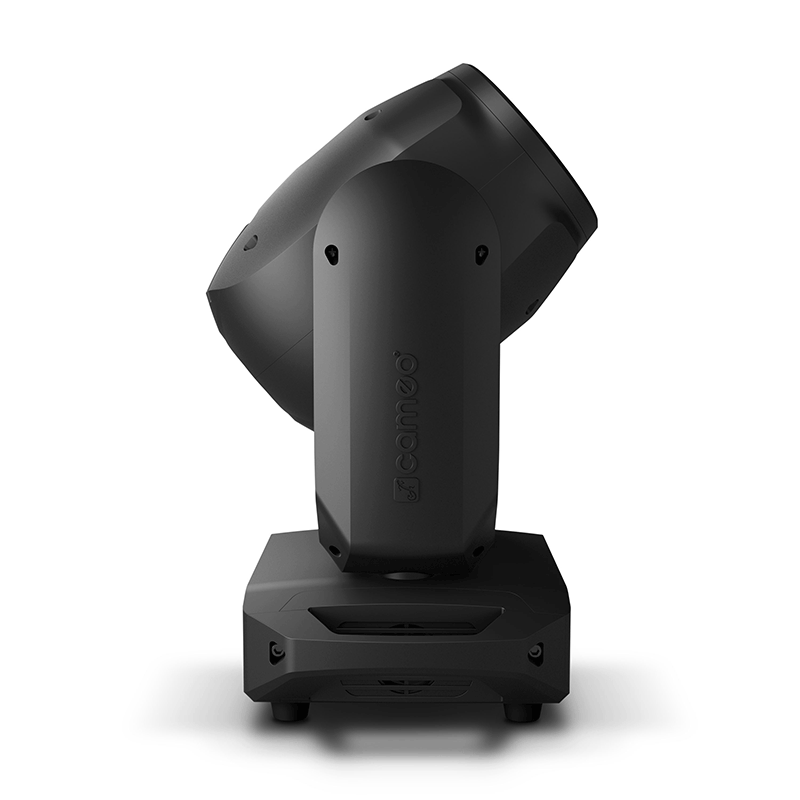

Cameo AZOR® B1 LED roto glava

Garancija dve godine!
blank

Besplatna dostava
Dostava je besplatna za online narudžbine fizičkih lica u vrednosti preko 15.000,00 dinara. Svaka pošiljka može biti osigurana dodatno/pošiljke do 70 000 dinara su osigurane.blank

Cenovnik dostave
Klikom na link posetićete stranicu sa ažuriranim cenovnikom kuriskih službi.blank

Načini plaćanja
Naručivanje preko našeg sajta u proseku traje manje od jednog minuta i odvija se kroz nekoliko jednostavnih koraka.

Opis proizvoda

The Cameo AZOR B1 is a powerful Beam Moving Head featuring a high-quality glass lens, an extremely narrow 2° beam angle and motorised focusing. 16-bit, three-phase motors provide 540° panning and 270° tilting with automated position correctioning. A cold-white 100 W LED with 9,200 K colour temperature achieves incredible 180,000 lx light intensity at 3 metres, while the colour wheel offers 14 intense colours, plus white and split colours, to choose from. Additional features of the AZOR B1 include 17 static gobos, a circular eightfold and a linear sixfold prism that are rotatable and indexable. When using as a standalone, four macros are available to freely program and can be perfectly synchronised in master-slave operation or inverted. The spotlight also features a rapid strobe function and a quiet, temperature-controlled fan. Easy configuration is facilitated by the AZOR B1’s OLED display and four buttons, 3- and 5-pin DMX inputs and outputs, while Power Twist sockets ensure unproblematic daisy chaining. The Beam Moving Head is supplied with three Omega brackets and a power cable.



Tehničke specifikacije proizvoda

  • Product type LED Moving Lights
  • Type Moving Head
  • Colour spectrum cold white
  • Number of LEDs 1
  • Colour temperature 9200 K
  • LED type 100 W
  • Refresh rate Adjustable up to 3,600 Hz
  • Dispersion 2 °

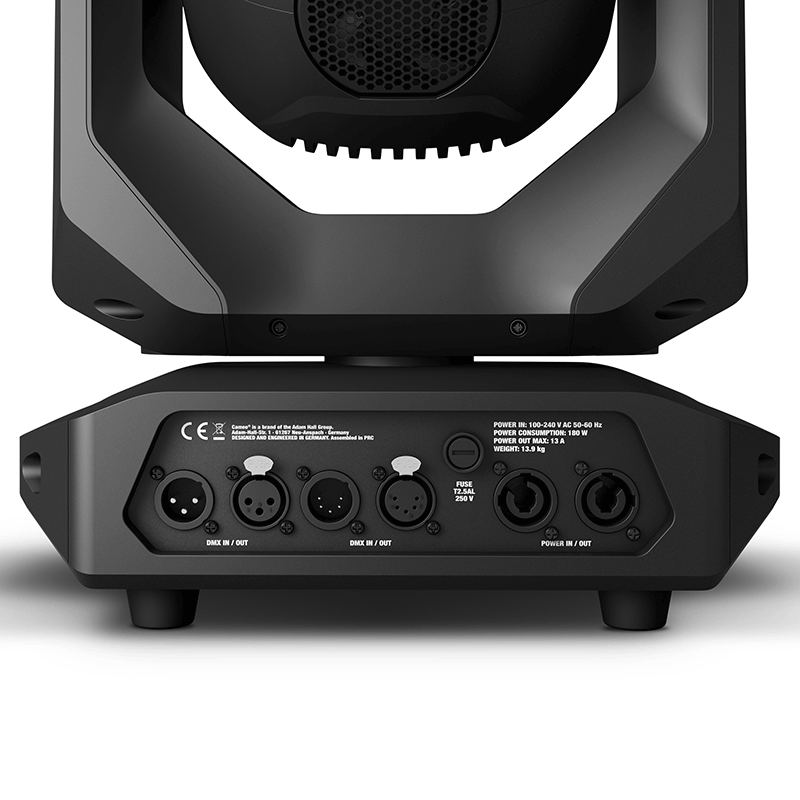

  • DMX input XLR 3-pin male , XLR 5-pin male
  • DMX output XLR 3-pin female , XLR 5-pin female
  • DMX mode 13-channel , 16-channel
  • DMX Functions Colour wheel , Device Settings , Dimmer , Dimmer Fine , Focus , Gobo wheel , PAN , PAN FINE , Pan/Tilt Macros , Pan/Tilt Speed , Prism Rotation/Indexing , Prism Selection , Set Dimmer Curve , strobe , TILT , TILT FINE
  • PAN movement 540
  • TILT movement 270
  • High Speed Strobe > 20 Hz
  • Standalone modes 4 x User Macros , master / slave mode , Settings
  • Controls Enter , mode , Value Down , Value Up
  • Indicators OLED Display
  • Operating voltage 100 V AC - 240 V AC, 50 - 60 Hz
  • Power consumption 180 W
  • Power connector Blue & White Power Twist I/O
  • Housing material ABS plastic , metal
  • Cabinet colour Black
  • Protection class IP IP20
  • Cooling temperature-controlled fan
  • Illuminance 180,000 lx @ 3 m
  • Luminous flux 2200 lm
  • Maximum Ambient Temperature -15 - 45 °C
  • Width 306 mm
  • Height 437 mm
  • Depth 220 mm
  • Weight 13,9 kg
  • Features 2 x Omega Clamp , Power supply
