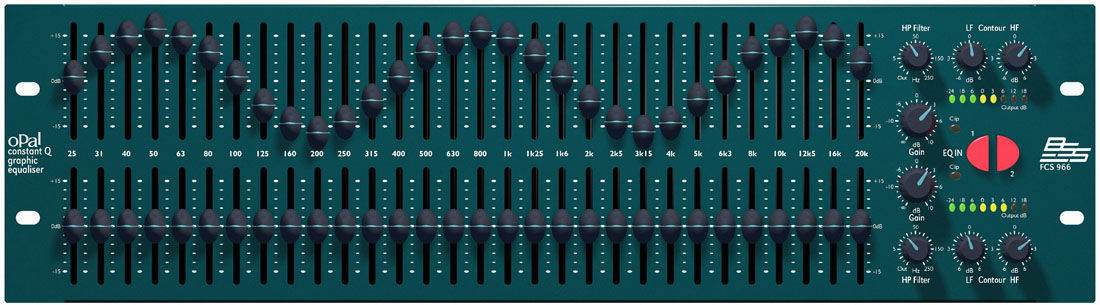

BSS FCS-966 Constant Q Graphic EQ
SKU: 602d1305678a
Opis proizvoda
Graphic equalizers are found in just about every sound application, from room contouring to feedback control and general audio sweetening. With the FCS-966 you're able to make greater use of the faders at each end of the scale for precision EQ work..
Tehničke specifikacije proizvoda
- BSS Audio Opal FCS-966 Graphic Equalizer Specifications:
- HP filter set to OUT. GAIN, HF, LF & all faders set to 0
- Input Section::
- Input Impedance: 10kOhm, electronically balanced
- Maximum Imput Level : >+20dBu
- CMRR: >-40dB @1kHz
- Output section::
- Output Impedance: < 50 Ohms, electronically balanced
- Maximum Output Level: >+20dBu into 600 Ohms
- Filters::
- HP filter control: OUT to 250Hz @ 12dB/octave
- LF contour: +/-6dB shelving @ 50Hz 6dB/octave
- HF contour: +/-6dB shelving @ 14kHz 6db/octave
- FREQUENCY bands: +/-15dB on ISO centres with a Q of 4
- General Performance::
- Frequency Response: 5Hz to 45kHz +/-1dB
- Noise: <-94dBu 22Hz to 22kHz
- Dynamic Range: > 115dB
- Cross Talk: >-80dB @1kHz
- Distortion: <0.005%THD (80kHz measurement
- BW) 20Hz-20kHz.
- GAIN control: +10dB to -infinity
- Dimensions: 19" x 5.25" x 7.1" (483mm x 134mm x 180mm)
- Weight: 6.6lbs (3kgs), unpacked
- AC Power: 115/230V AC, 50/60Hz, 30VA.
