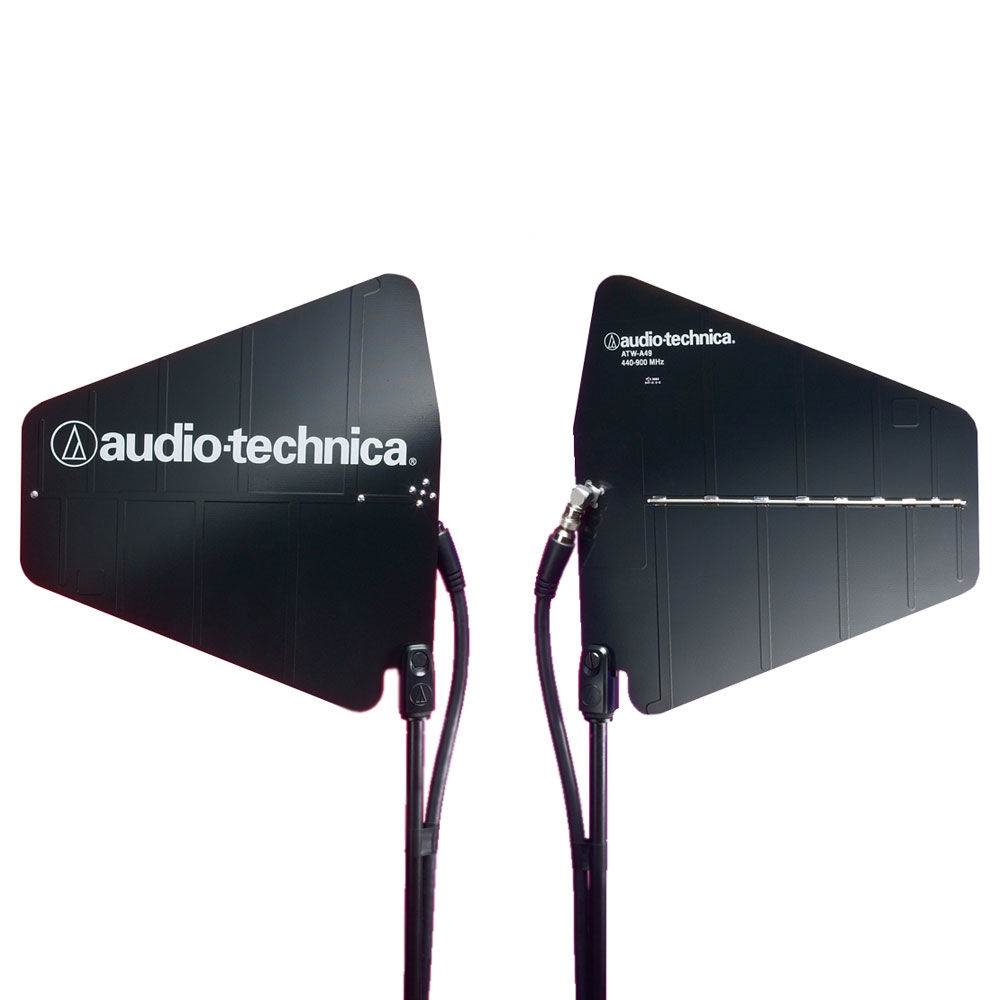

Audio-Technica ATW-A49 par širokopojasnih dipolnih antena za UHF 440-900 MHz

RSD49.560,00
(cena je sa uračunatim PDVom)

Besplatna dostava
Besplatna dostava je za sve artikle koji su plaćeni preko 15.000 dinara. Svaka pošiljka može biti osigurana dodatno/pošiljke do 70 000 dinara su osigurane.

Cenovnik dostave
Klikom na link posetićete stranicu sa ažuriranim cenovnikom kuriskih službi.

Načini plaćanja
Naručivanje preko našeg sajta u proseku traje manje od jednog minuta i odvija se kroz nekoliko jednostavnih koraka.

Opis proizvoda


Pair of UHF wide-band directional LPDA (log periodic dipole array)
antennas provide enhanced signal pickup for UHF wireless systems
throughout a wide band range (440-900 MHz). Each antenna paddle is
matched to 50 ohms impedance with an integral high-quality low-loss BNC
connector; 6 dB gain. For permanent or temporary installation; mounts to
5/8"-27 threads.

Tehničke specifikacije proizvoda

  • Antenna Type: Log Periodic Dipole Array (LPDA)
  • Operating Bandwidth: 440 – 900 MHz
  • Gain: 6 dB typical*
  • Impedance: 50 ohms typical*
  • VSWR : 1.7:1*
  • Polar Pattern: Elliptical, 90° acceptance, typical
  • Polarization: Vertical (when mounted vertically)
  • Number of Elements: 9
  • Maximum Power Input: Not specified (intended as receive antenna only)
  • Termination Type: Fixed right-angle BNC female
  • Connector is positioned to minimize cable strain
  • Weight: 326 g each
  • Dimensions: 268 mm L x 285 mm H x 25 mm D
  • Material: Copper-clad epoxy fiberglass
  • Finish: Black matte
  • Mounting: 5/8"-27 thread; adaptor can swivel 90°
  • * Within specified bandwidth
