Audio-Technica AT2022 kondenzatorski stereo X/Y mikrofon

Garancija dve godine!
blank

Besplatna dostava
Dostava je besplatna za online narudžbine fizičkih lica u vrednosti preko 15.000,00 dinara. Svaka pošiljka može biti osigurana dodatno/pošiljke do 70 000 dinara su osigurane.blank

Cenovnik dostave
Klikom na link posetićete stranicu sa ažuriranim cenovnikom kuriskih službi.blank

Načini plaćanja
Naručivanje preko našeg sajta u proseku traje manje od jednog minuta i odvija se kroz nekoliko jednostavnih koraka.

Opis proizvoda

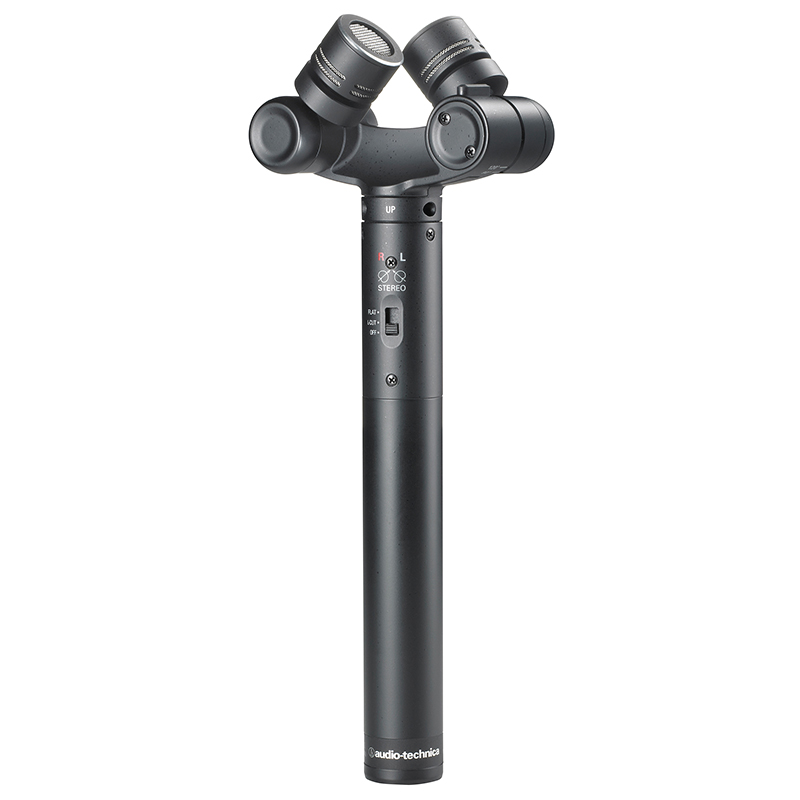

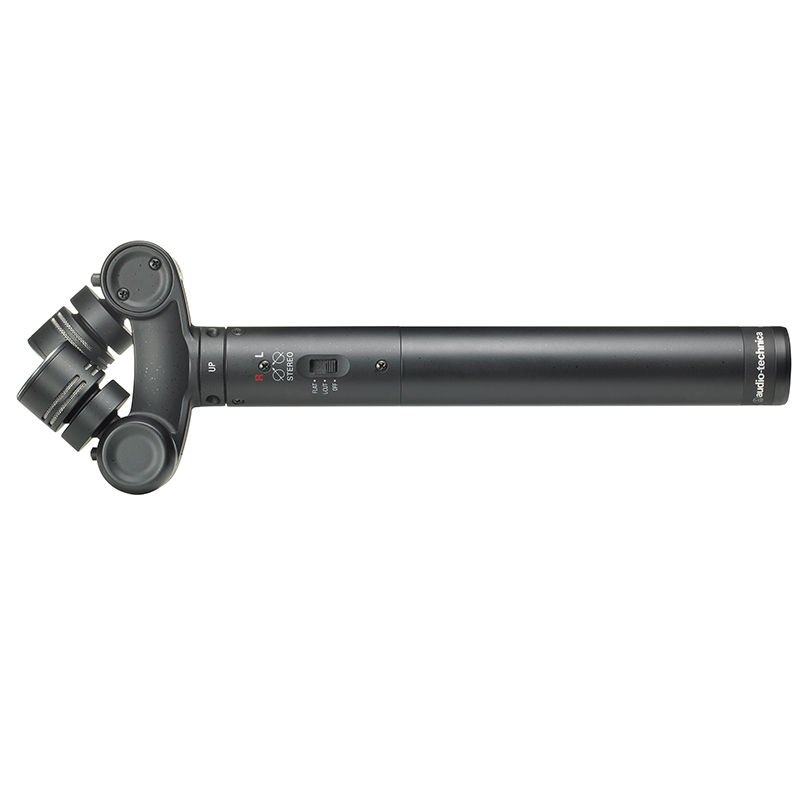

The AT2022 is a condenser microphone designed for stereo recording. Two unidirectional condenser capsules in an X/Y configuration pivot to allow for narrow (90°) or wide (120°) stereo operation. The capsules also fold flat for storage and transportation. Designed for general stereo recording and field sound capture, the AT2022 provides the spatial impact and realism of a live sound field. The microphone comes equipped with a stand clamp, AA battery, fuzzy windscreen and .5 m cable that terminates in a 3.5 mm stereo plug.

Tehničke specifikacije proizvoda

  • X/Y stereo microphone with unique pivoting electret condenser capsules for ultimate flexibility
  • Provides the spatial impact and realism of a live sound field
  • Battery operation allows use with most recording devices
  • Switchable low-frequency roll-off minimizes pickup of unwanted low-frequency noise
  • User-selectable 90° or 120° stereo operation for narrow or wide pickup patterns
  • Ideal for general stereo recording and field sound capture
  • Excellent channel separation
  • Included fuzzy windscreen offers excellent wind protection
  • ELEMENTS Fixed-charge back plate, permanently polarized condenser
  • POLAR PATTERN X/Y Stereo
  • FREQUENCY RESPONSE 20–20,000 Hz
  • LOW FREQUENCY ROLL-OFF 150 Hz, 6 dB/octave
  • OPEN CIRCUIT SENSITIVITY -41 dB (8.9 mV) re 1V at 1 Pa
  • CHANNEL BALANCE <2.5 dB
  • IMPEDANCE 200 ohms
  • MAXIMUM INPUT SOUND LEVEL 122 dB SPL, 1 kHz at 1% T.H.D.
  • DYNAMIC RANGE (typical) 103 dB, 1 kHz at Max SPL
  • SIGNAL-TO-NOISE RATIO 75 dB, 1 kHz at 1 Pa
  • BATTERY TYPE 1.5V AA/UM3
  • WARNING: The AT2022 is designed for battery operation only. Do not attempt to use when phantom power is present. Possible damage to the
  • microphone may result.
  • BATTERY CURRENT / LIFE 1.2 mA / 500 hours typical (alkaline)
  • SWITCH Off, on/flat, on/roll-off
  • WEIGHT 270 g (9.5 oz)
  • DIMENSIONS 192.0 mm (7.56") long,
  • 65.0 mm (2.56") maximum head diameter,
  • 21.0 mm (0.83") body diameter
  • OUTPUT CONNECTOR Integral 3-pin XLRM-type
  • CABLE 0.5 m (1.6') long, 3 conductor, shielded, vinyl-jacketed stereo cable with 3-pin XLRF-type connector at microphone end and 3.5 mm (1/8") TRS connector at output end

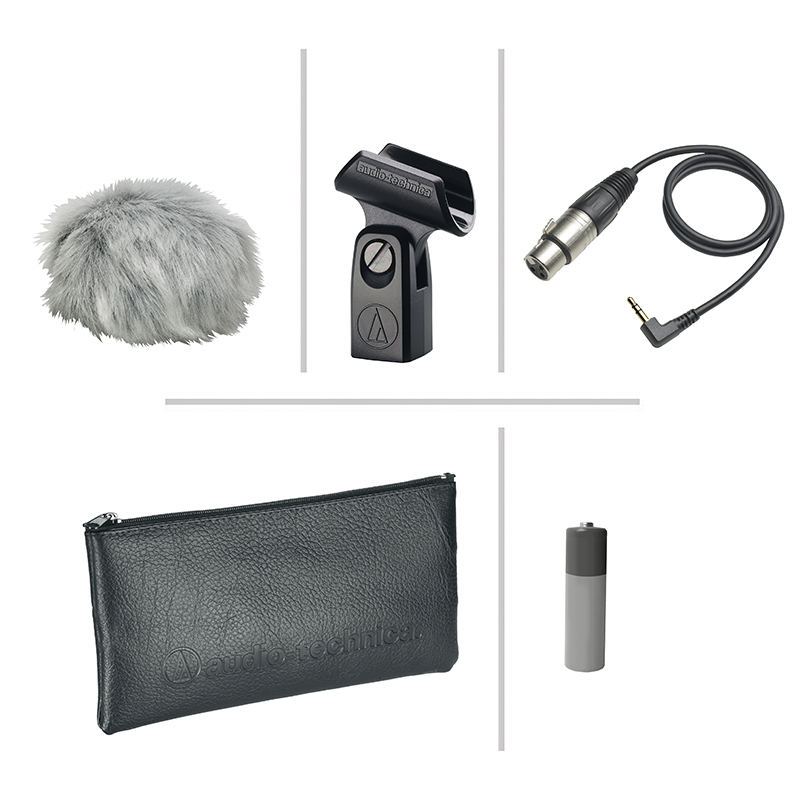

  • ACCESSORIES FURNISHED AT8405a stand clamp for 5/8"-27 threaded stands; fuzzy windscreen; battery; soft protective pouch
