Opis proizvoda

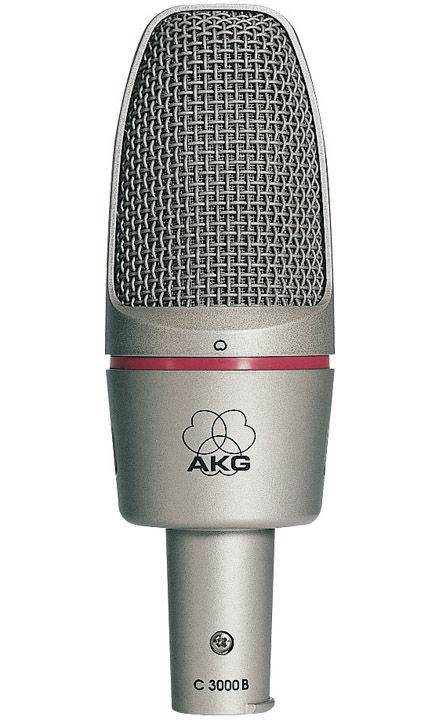

Due to its surface area and special capsule tuning, the C 3000 B large-diaphragm transducer produces an exceptionally pleasing, smooth sound.Brass, Drums, Recording, Vocals.
The earlier model C 3000 has had a large fan club in the project studio and home recording worlds for years. For the new C 3000 B, AKG designed a special 1-inch large-diaphragm transducer that closely approximates the vibration performance of top-class studio microphones, but can be made at much lower cost.
Due to its surface area and special capsule tuning, the C 3000 B large-diaphragm transducer produces an exceptionally pleasing, smooth sound. Unlike in the C 3000, the switchable 10-dB preattenuation pad immediately follows the transducer in the signal path, thus increasing the C 3000 B's SPL capability by a true 10 dB. Loud sound sources are therefore no problem.
An acoustically optimized cardioid polar pattern makes the C 3000 B an excellent choice for both recording and live sound applications where high gain before feedback is paramount.
|
Polar pattern |
cardioid |
|
Frequency range |
20 to 20,000 Hz |
|
Sensitivity |
25 mV/Pa (-32 dBV) |
|
Max. SPL |
140/150 dB (k=0,5%) |
|
Equivalent noise level (CCIR 468-3) |
25 dB |
|
Equivalent noise level |
14 dB-A |
|
Signal/noise ratio (A-weighted) |
80 dB |
|
Preattenuation pad |
10 dB, switchable |
|
Bass filter |
6 dB/octave below 500 Hz |
|
Impedance |
200 ohms |
|
Recommended load impedance |
>1000 ohms |
|
Supply voltage |
9 to 52 V phantom power to DIN 45596 |
|
Current consumption |
<2 mA |
|
Connector |
3-pin XLR |
|
Finish |
silver gray |
|
Net weight |
320 g / 11.3 oz. |
|
Shipping weight |
950 g / 2.1 lbs. |
|
Patent(s) |
Electrostatic transducer (Patent no. AT 395.225, DE 4.103.784, JP 2.815.488) |
Tehničke specifikacije proizvoda
- Highly affordable AKG large-diaphragm microphone technology
- Cardioid polar pattern for multiplicity of vocal and instrument applications
