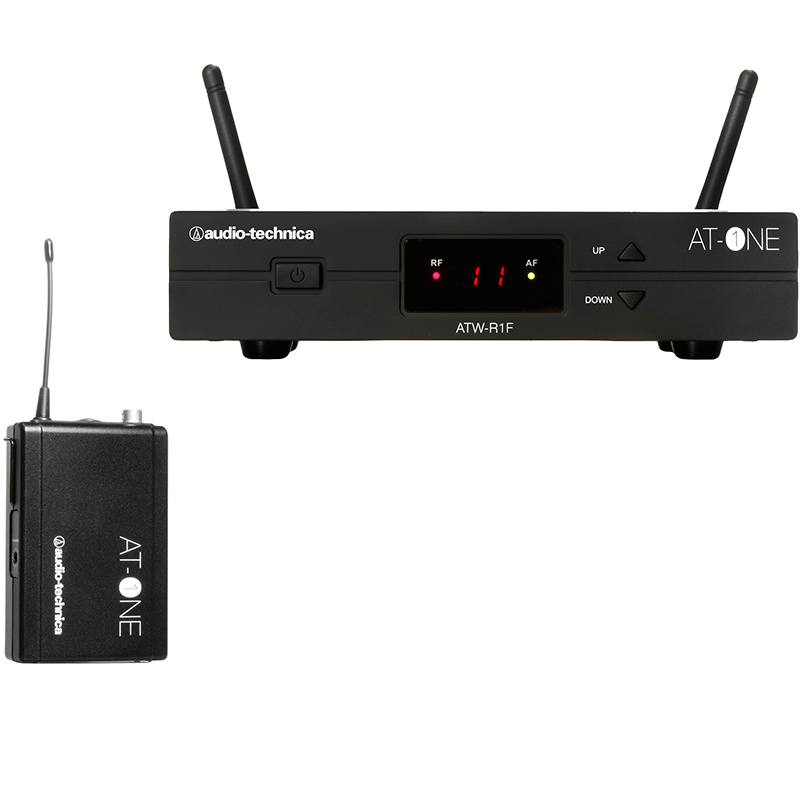

Audio-Technica ATW-11F AT-One Beltpack system

blank

Besplatna dostava
Dostava je besplatna za online narudžbine fizičkih lica u vrednosti preko 15.000,00 dinara. Svaka pošiljka može biti osigurana dodatno/pošiljke do 70 000 dinara su osigurane.blank

Cenovnik dostave
Klikom na link posetićete stranicu sa ažuriranim cenovnikom kuriskih službi.blank

Načini plaćanja
Naručivanje preko našeg sajta u proseku traje manje od jednog minuta i odvija se kroz nekoliko jednostavnih koraka.

Opis proizvoda

Introducing AT-One, Audio-Technica's entry level UHF wireless system.
With a 2 x 4 channel frequency plan for enhanced flexibility, sturdy but stylish build quality and a simple user interface, AT-One is ready to become your perfect wireless companion. AT-One is designed with simplicity and ease-of-use in mind. Equipped with a practical carrying case, rack-mount kit and detachable antennae, AT-One is the perfect balance of price and performance, ideal for those looking for accurate, reliable performance at an entry level price. The AT-One's frequency plan is divided into two groups with 4 available channels in each group split between the Europe wide license free frequency range and the LTE duplex gap. Users can choose up to 4 channels within one group. Available in three configurations, AT-One can be purchased with a beltpack or handheld transmitter. The ATW-11F comes equipped with a sturdy, discreetly designed beltpack, providing 10mW RF output power, damping switch and a battery life of 10 hours. The ATW-13F handheld system features the ATW-T3F cardioid condenser handheld transmitter, again with 10mW RF output and 10 hour battery life. The ATW-11/PF comes equipped with the ATR35cW tie-clip microphone. The ATW-13F's condenser handheld microphone prevents the possibility of feedback when used in venues with induction loops installed.

Tehničke specifikacije proizvoda

  • Frequency range:824 - 831 MHz, 863-865 MHz
  • Modulation mode: FM
  • Number of frequencies: 2x 4-frequencies
  • Operating range: 60m, typical
  • Frequency response: 60 Hz - 16 kHz
  • Frequency stability: +/- 0.005%, Phase lock loop frequency control
  • Receiving system: Antenna switching diversity
  • Image rejection: 55dB minimum
  • Dynamic range: HH: 108 dB, BP 103 dB (@ max deviation)
  • Sensitivity: 10dBµV (S/N 60dB @ 20 kHz deviation)
  • Total Harmonic Distortion: <1% - 20 kHz deviation @ 1 kHz Level control: Mic / Line (0 / -20dB)
  • Antenna Input: BNC type, 50O - BIAS voltage 12V DC 100mA each
  • Audio Output: Unbalanced -2dBV, Balanced 4dBV
  • Output connectors: Unbalanced: 6.3 mm mono jack, Balanced: XLRM-type
  • Dimensions: 200 mm x 42 mm x 122 mm (W x H x D)
  • Weight: 418 g without accessories Accessories included: AC Adapter, Antennas, Rack mount adapter
  • Optional System Accessory: AT8677 Dual rack mount kit
  • RF Output power: 10 mW
  • Spurious Emissions: Following national regulations
  • Input connections: Pin 1: GND, Pin 2: INST, Pin 3: Mic, Pin 4: DC Bias +10V
  • Batteries (not included): Two 1.5V AA alkaline
  • Battery Life: 10 hours - depending on battery type and use pattern
  • Dimensions: 66 mm x 98 mm x 22 mm (W x H x D) Weight: 71 g without batteries
  • RF Output power: 10 mW
  • Spurious Emissions: Following national regulations
  • Microphone Element: Condenser Cardioid
  • Batteries (not included): Two 1.5V AA alkaline
  • Battery Life: 10 hours - depending on battery type and use pattern
  • Dimensions: 268 mm long - 52 mm (diameter)
  • Weight: 227 g without batteries
  • Accessory included: Stand clamp
